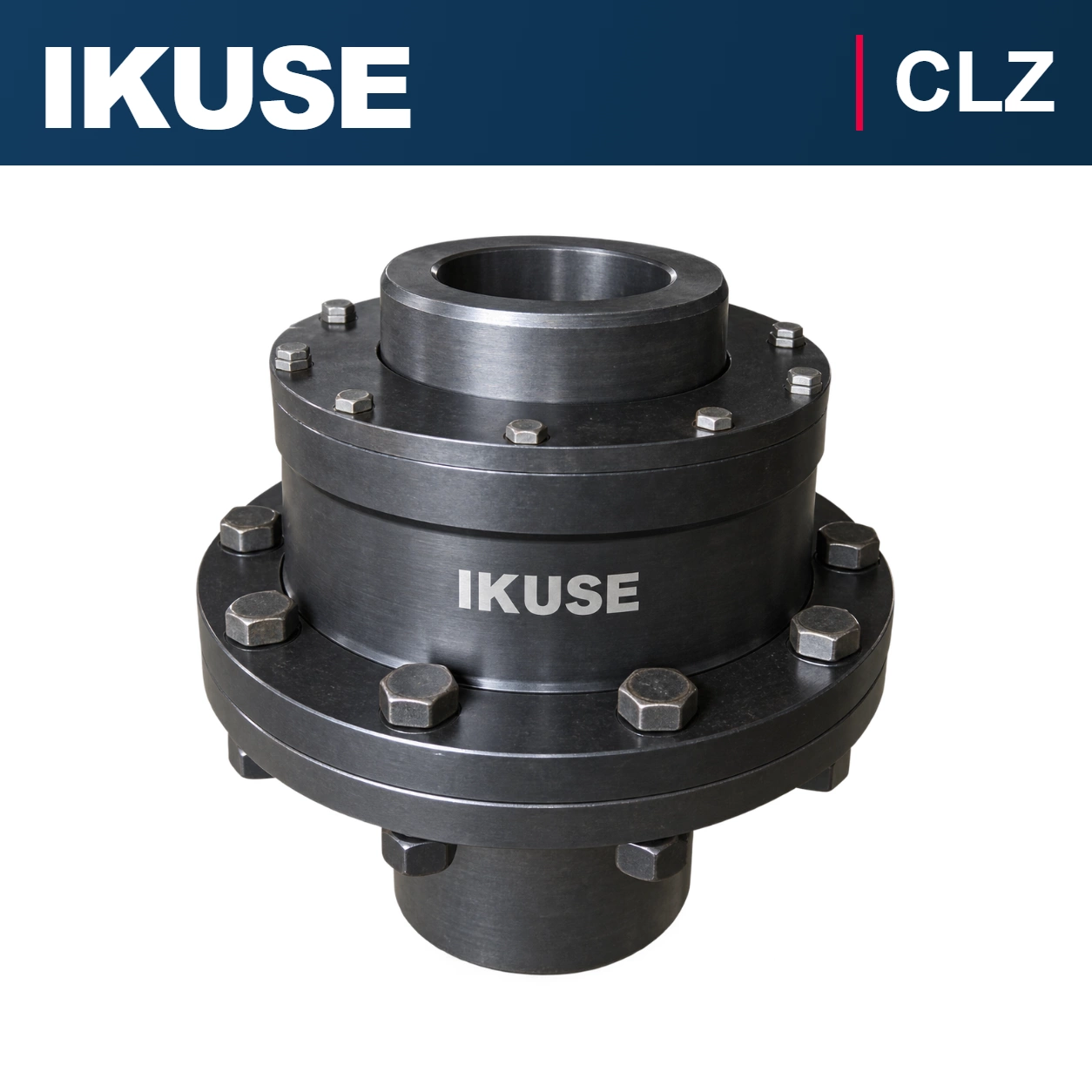

产品概述 Overview
通过内外齿啮合传递转矩，配套连接与密封结构按对应规格选用。
Transmits torque through meshing internal and external teeth. Select connecting and sealing parts for the specified size.
Transmits torque through meshing internal and external teeth. Select connecting and sealing parts for the specified size.

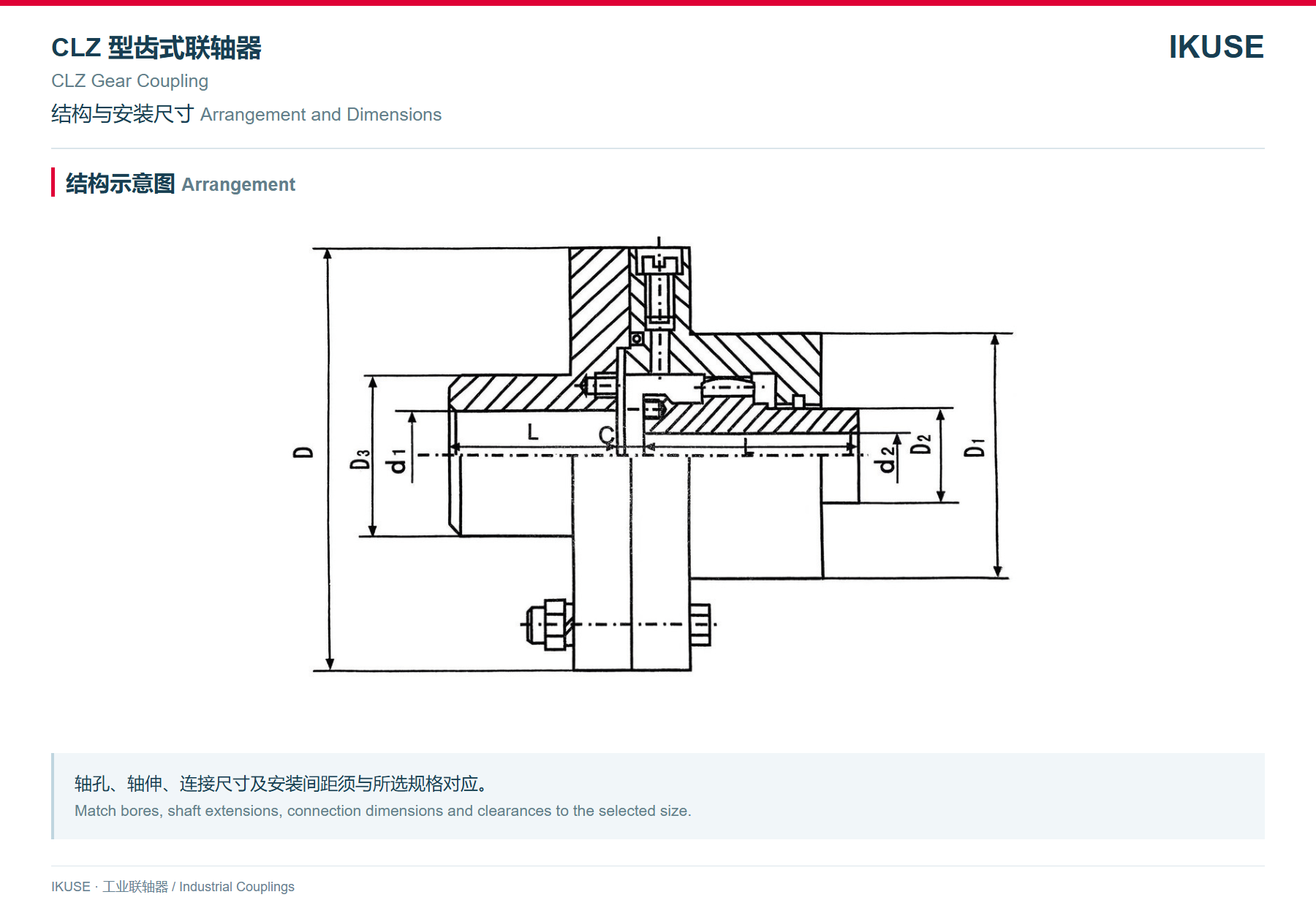

结构与使用 Construction and Service
核对齿套、轴孔、连接尺寸、密封及润滑要求。
Check gear sleeves, bores, connection dimensions, sealing and lubrication requirements.
Check gear sleeves, bores, connection dimensions, sealing and lubrication requirements.

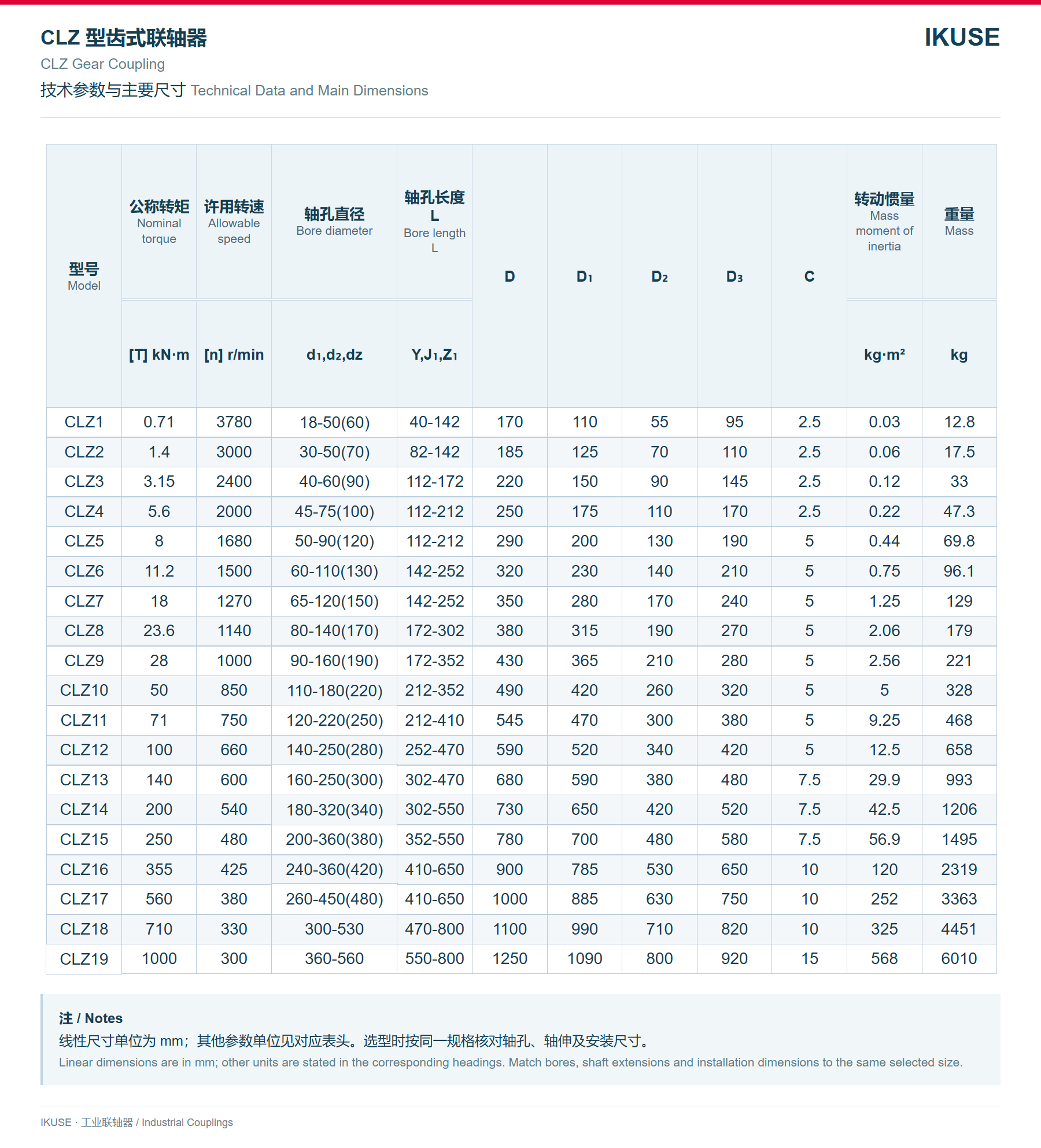

技术参数与主要尺寸 Technical Data and Dimensions
转矩、转速、轴孔和安装尺寸应按同一规格对应核对。
Check torque, speed, bore and installation dimensions for the same selected size.
Check torque, speed, bore and installation dimensions for the same selected size.
订货信息 Ordering
请提供功率、工作转速、负载特性、两端轴径与轴伸长度、轴端间距以及安装环境；涉及制动、动平衡和弹性元件配置时请一并说明。
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
