产品概述 / Overview
用于单机或小型单线润滑系统的递进式分配器，内部活塞依次定量供油，可合并出口增加给油量。
Progressive distributors for individual machines or small single-line systems, with sequential metered delivery and outlet combining.
Progressive distributors for individual machines or small single-line systems, with sequential metered delivery and outlet combining.

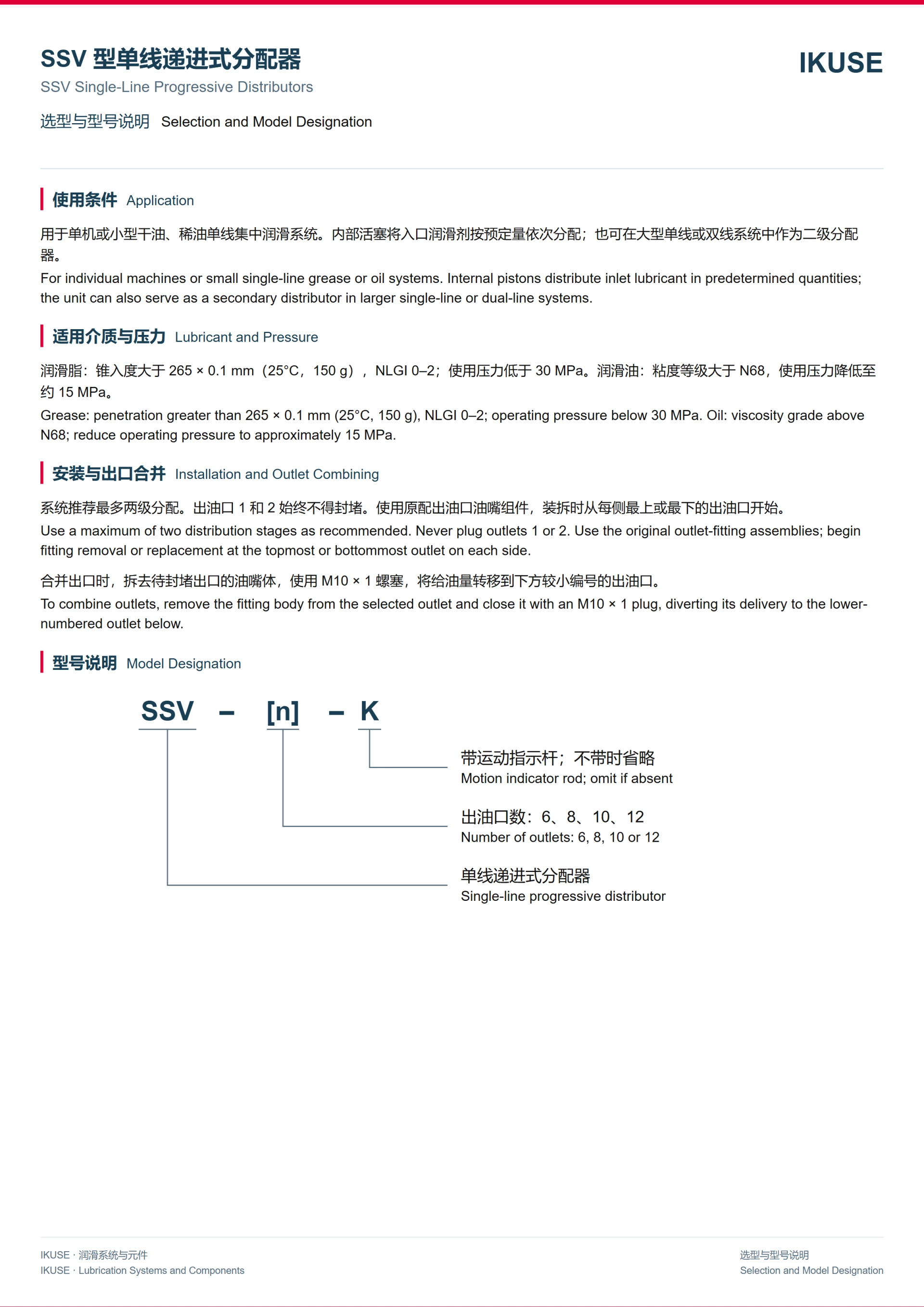

选型与使用 / Selection and Service
1、2 号出口不得封堵；出口合并需使用规定接头，润滑油工况压力约降至 15 MPa。
Do not plug outlets 1 or 2. Use the specified fittings for outlet combining; reduce pressure to approximately 15 MPa in oil service.
Do not plug outlets 1 or 2. Use the specified fittings for outlet combining; reduce pressure to approximately 15 MPa in oil service.

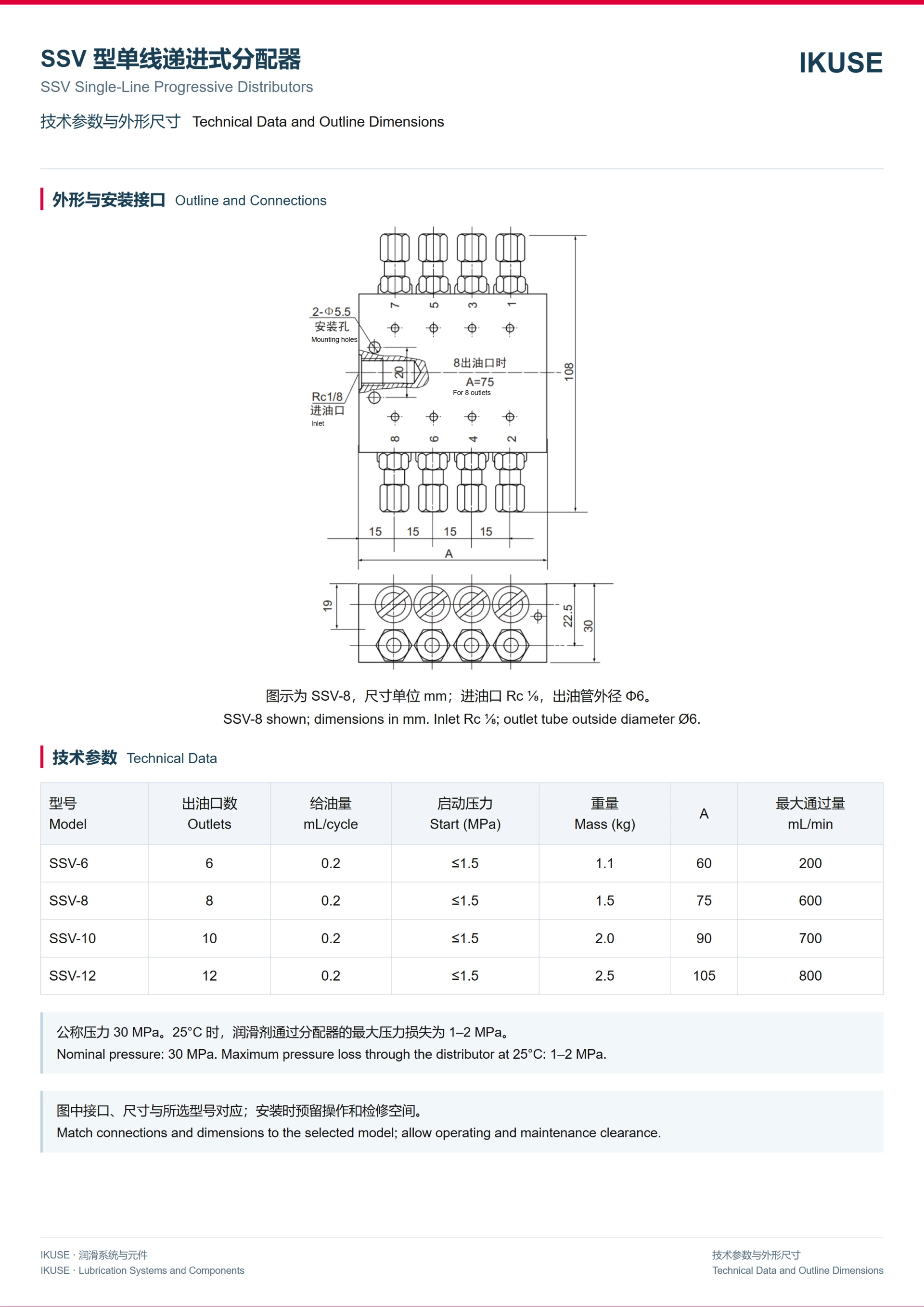

技术资料 / Technical Data
技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
