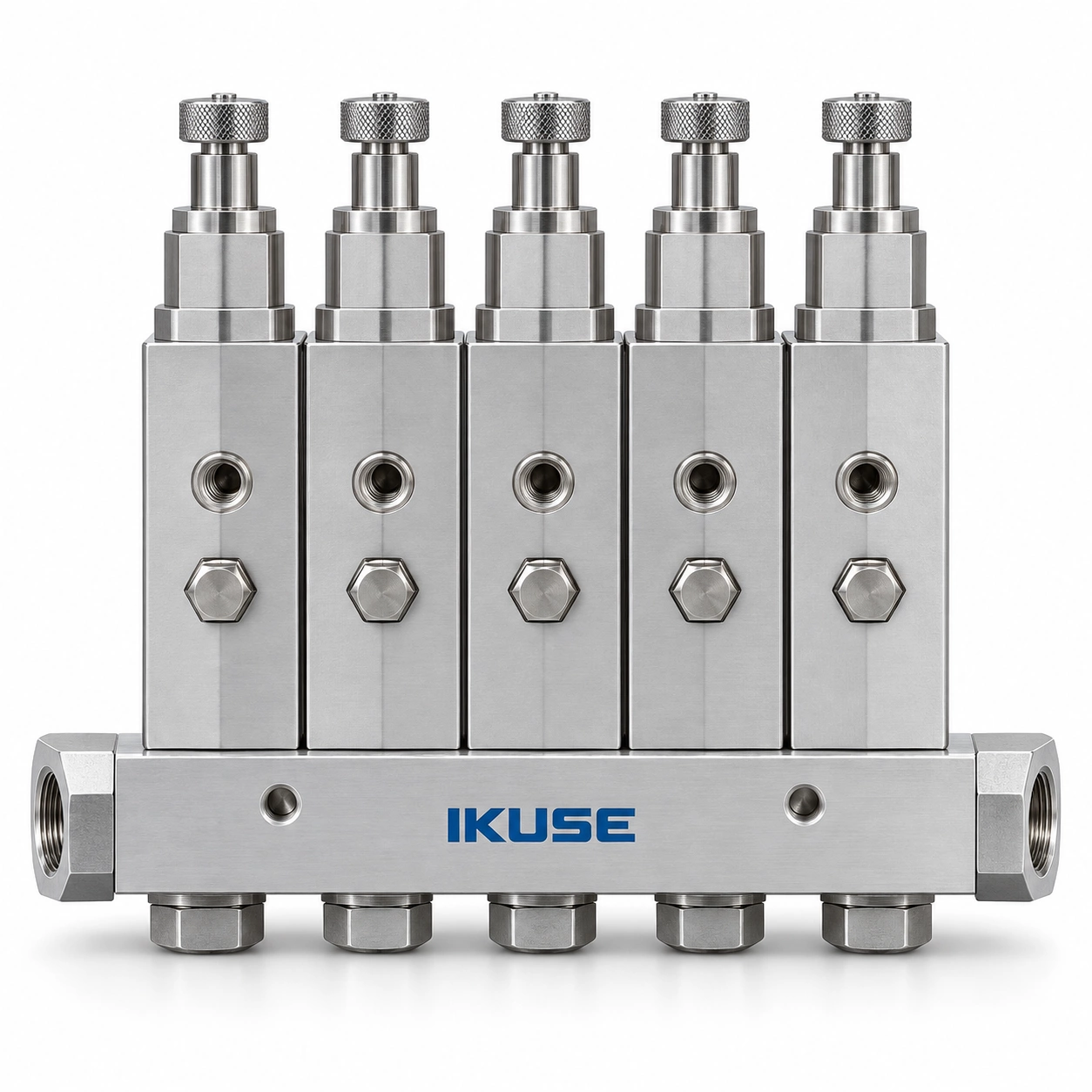

产品概述 / Overview
用于 31.5 MPa 单线集中润滑系统，向各润滑点自动定量供脂。
Provides automatic metered grease delivery to points in 31.5 MPa single-line centralized systems.
Provides automatic metered grease delivery to points in 31.5 MPa single-line centralized systems.

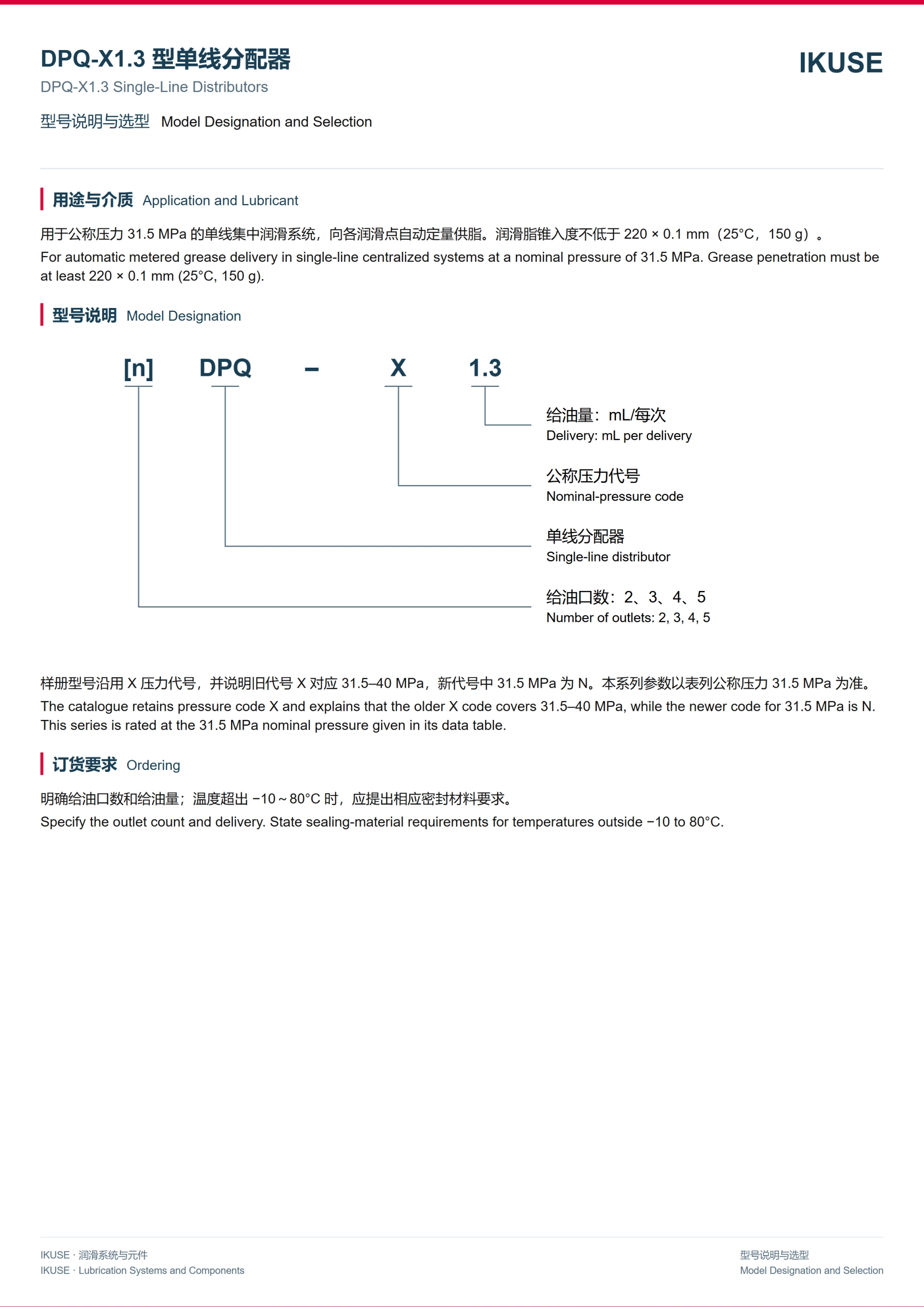

选型与使用 / Selection and Service
按出口数量、接口及安装孔尺寸选择规格。
Select by outlet count, connections and mounting-hole dimensions.
Select by outlet count, connections and mounting-hole dimensions.

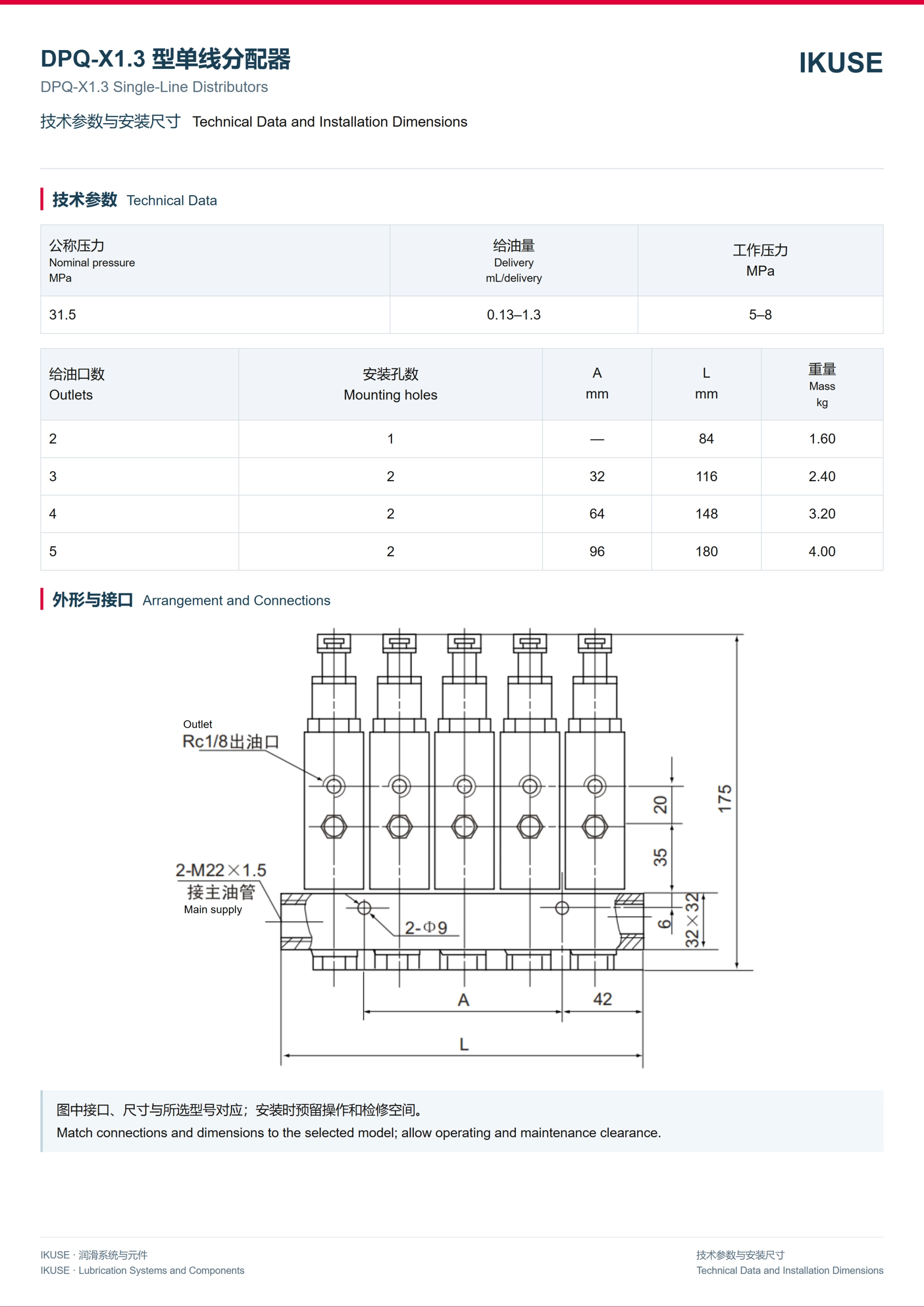

技术资料 / Technical Data
技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
