产品概述 / Overview

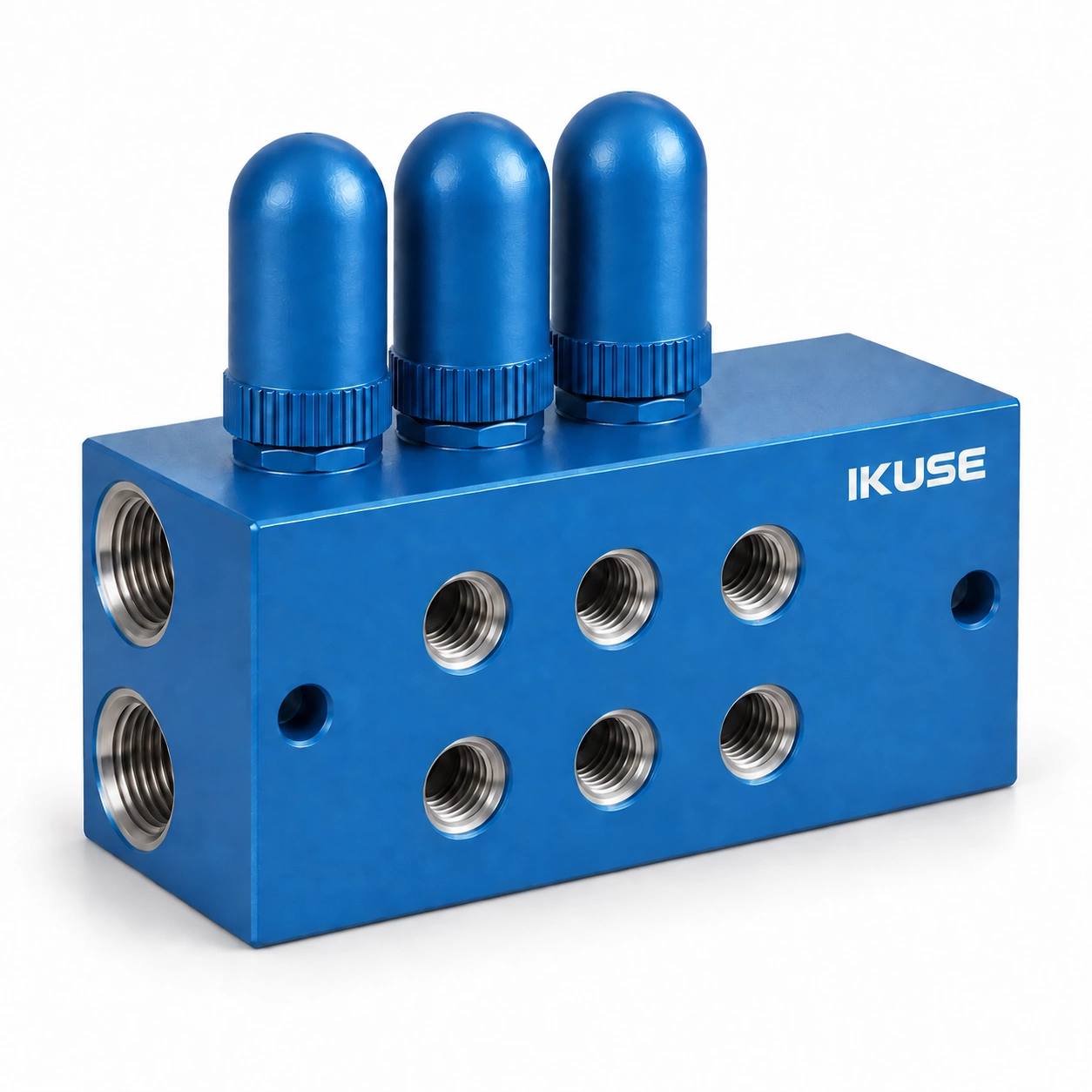

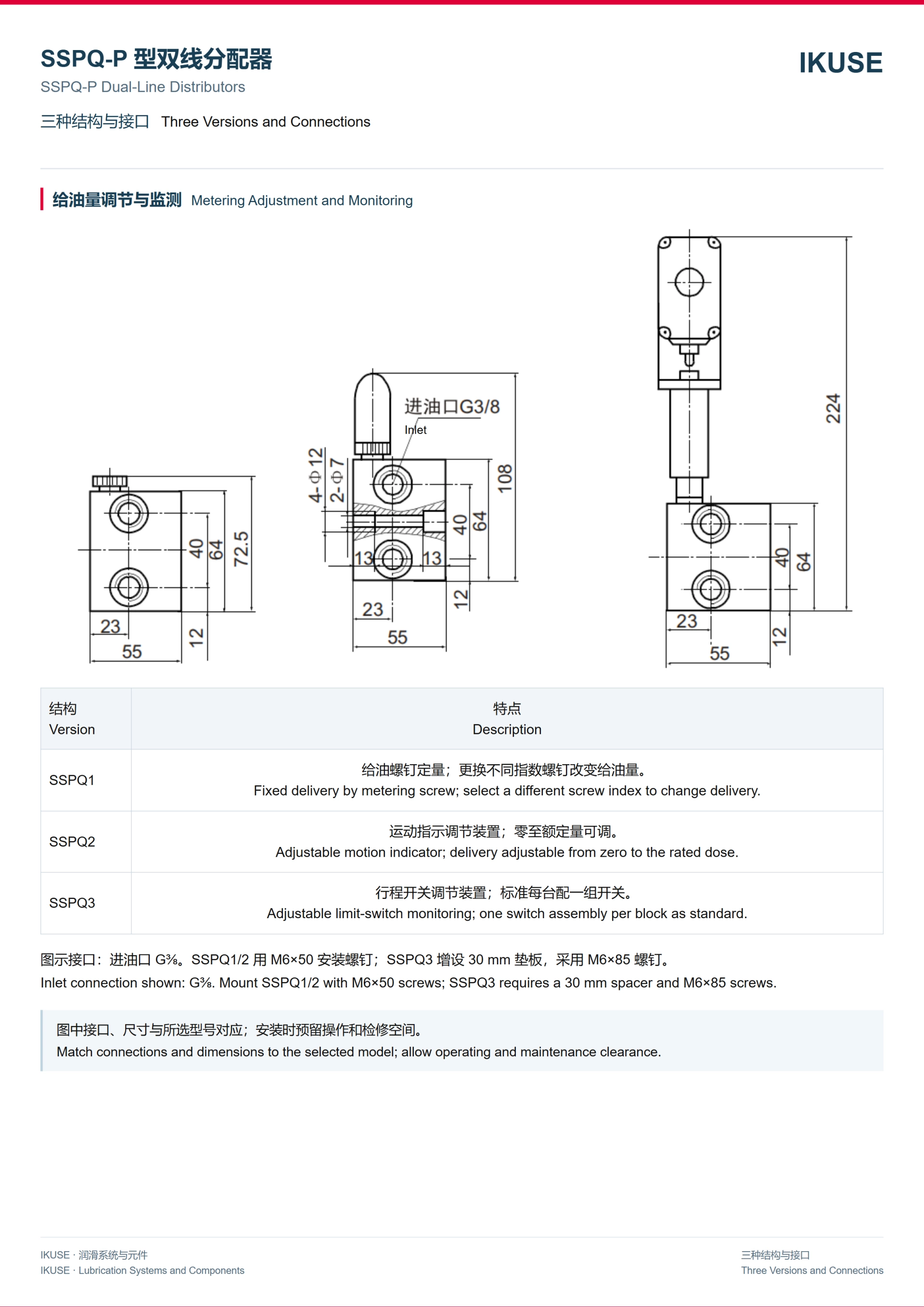

用于 40 MPa 双线集中润滑，提供固定计量、可调动作指示及带限位开关监测三种结构。
For 40 MPa dual-line lubrication, with fixed metering, adjustable motion indication or limit-switch monitoring.
For 40 MPa dual-line lubrication, with fixed metering, adjustable motion indication or limit-switch monitoring.
选型与使用 / Selection and Service
按出口数、单口排量和监测要求选型；合并出口时按对应图示配置。
Select by outlet count, dose and monitoring requirements; configure combined outlets according to the drawing.
Select by outlet count, dose and monitoring requirements; configure combined outlets according to the drawing.

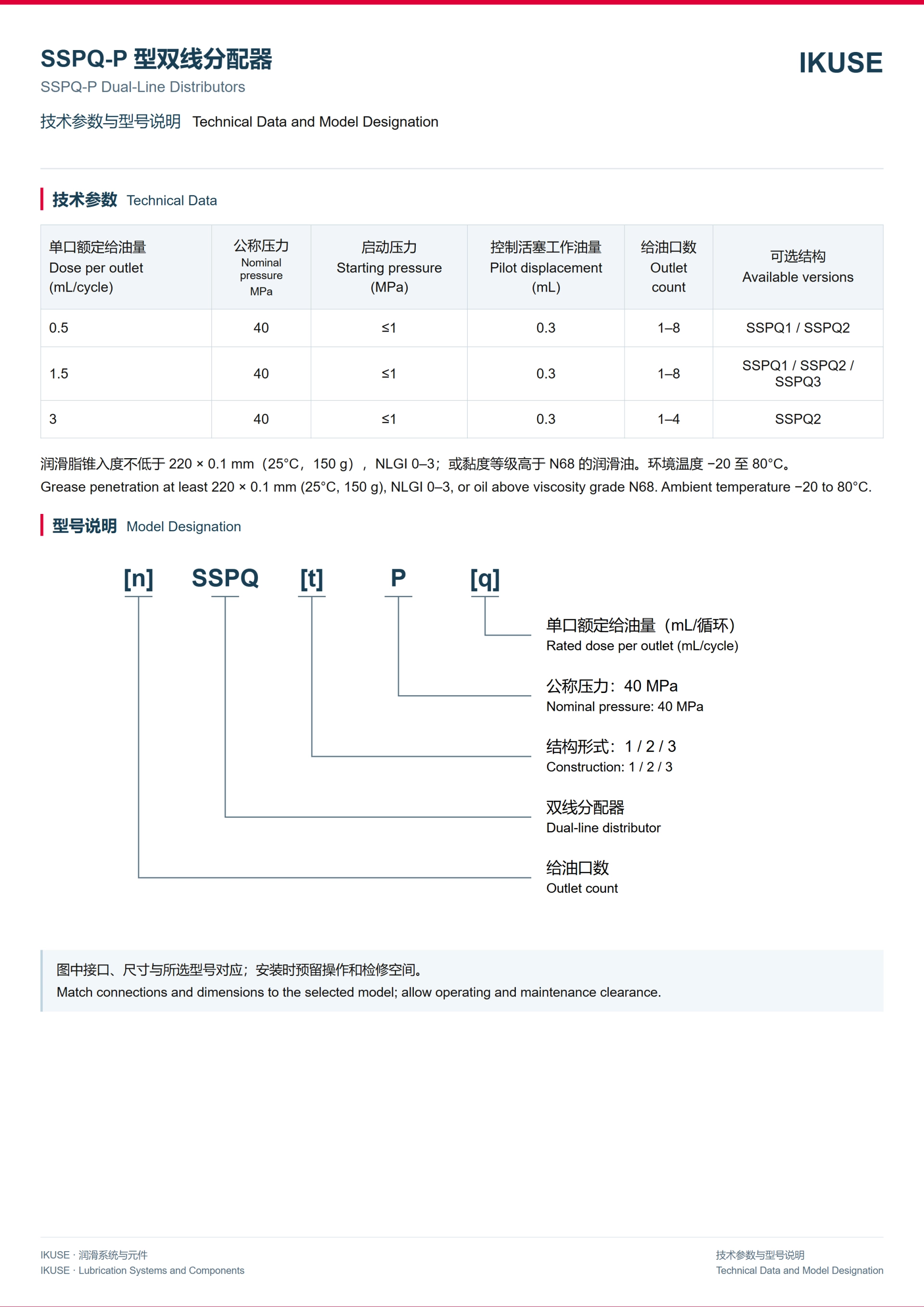

技术资料 / Technical Data

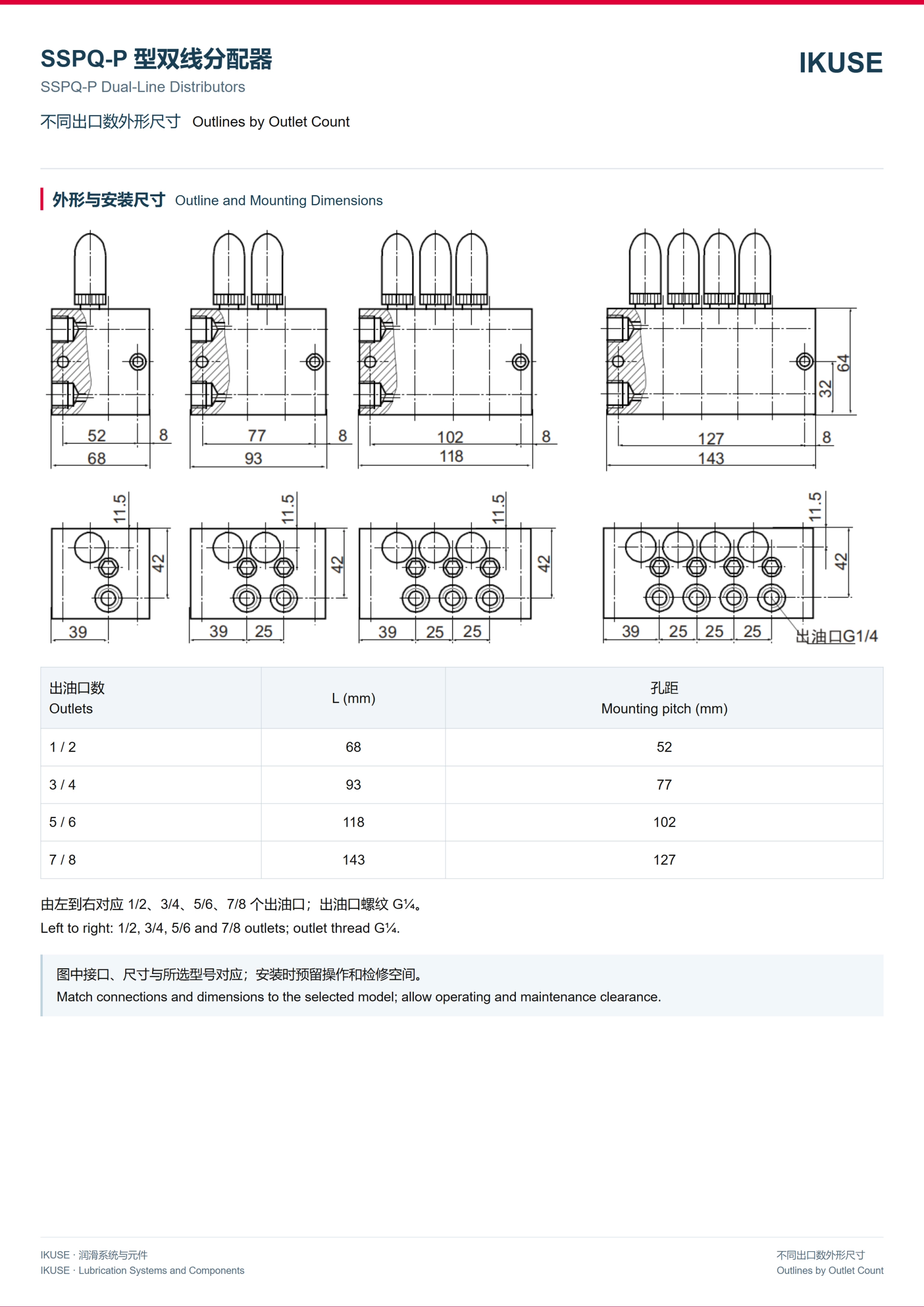

技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
