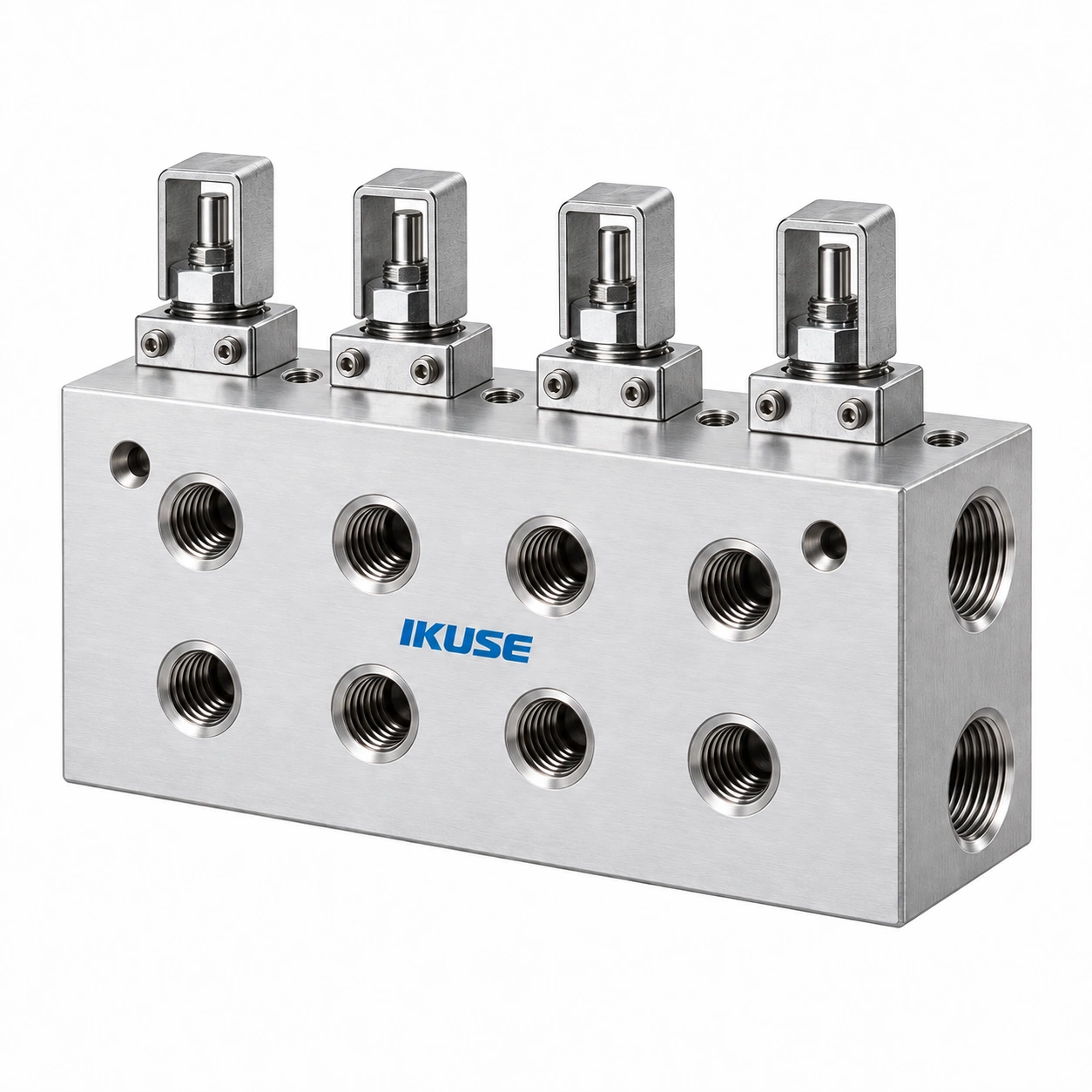

产品概述 / Overview

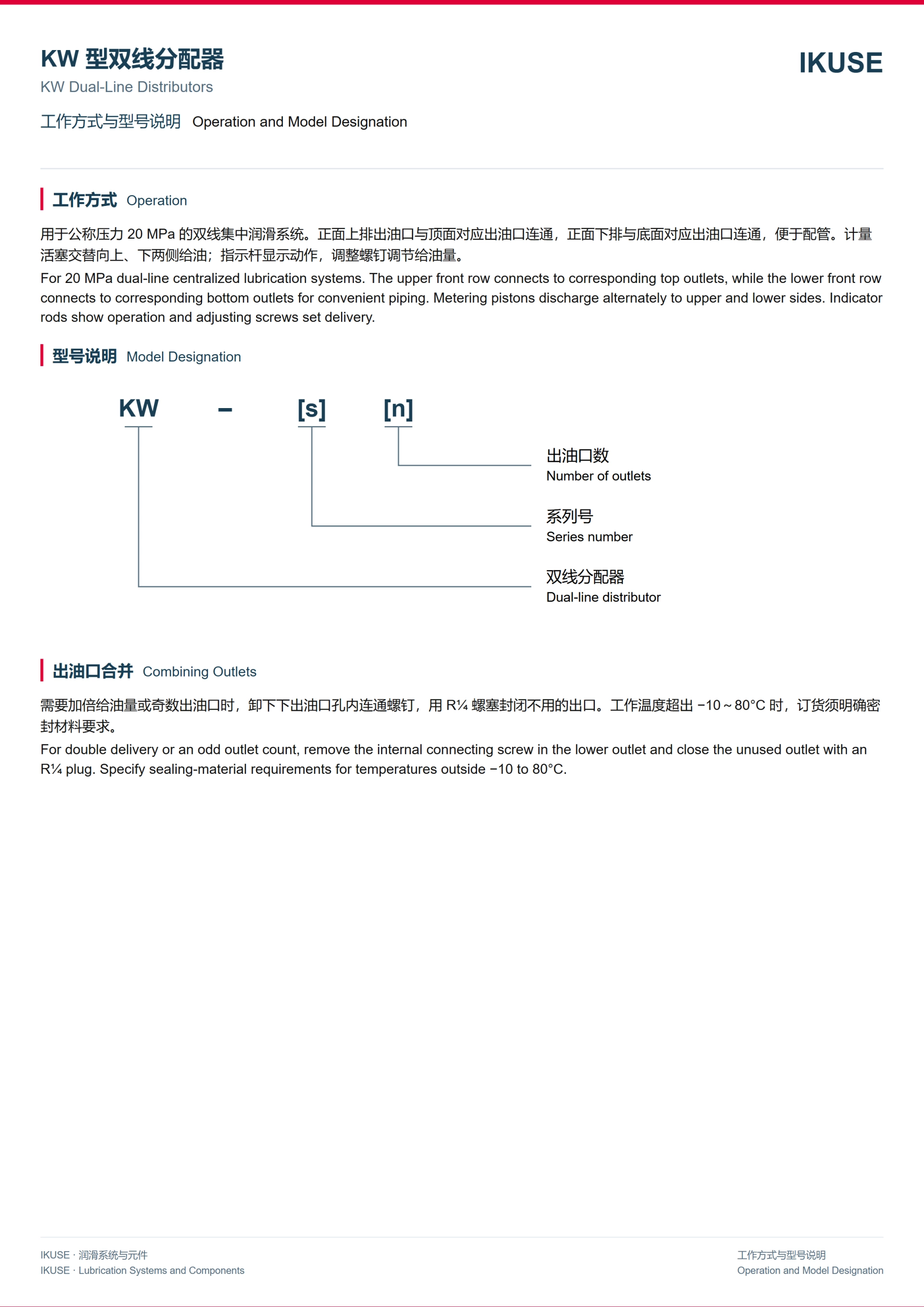

用于 20 MPa 双线集中润滑系统，带动作指示及给油量调节。上下出油口交替供油，可按图合并对应出口。
For 20 MPa dual-line centralized systems with motion indication and adjustable delivery. Upper and lower outlets supply alternately and may be combined as shown.
For 20 MPa dual-line centralized systems with motion indication and adjustable delivery. Upper and lower outlets supply alternately and may be combined as shown.
选型与使用 / Selection and Service
润滑油工况需按样册降低使用压力；按出口数和排量选择型号。
Use the reduced pressure specified for oil service; select the model by outlet count and delivery.
Use the reduced pressure specified for oil service; select the model by outlet count and delivery.

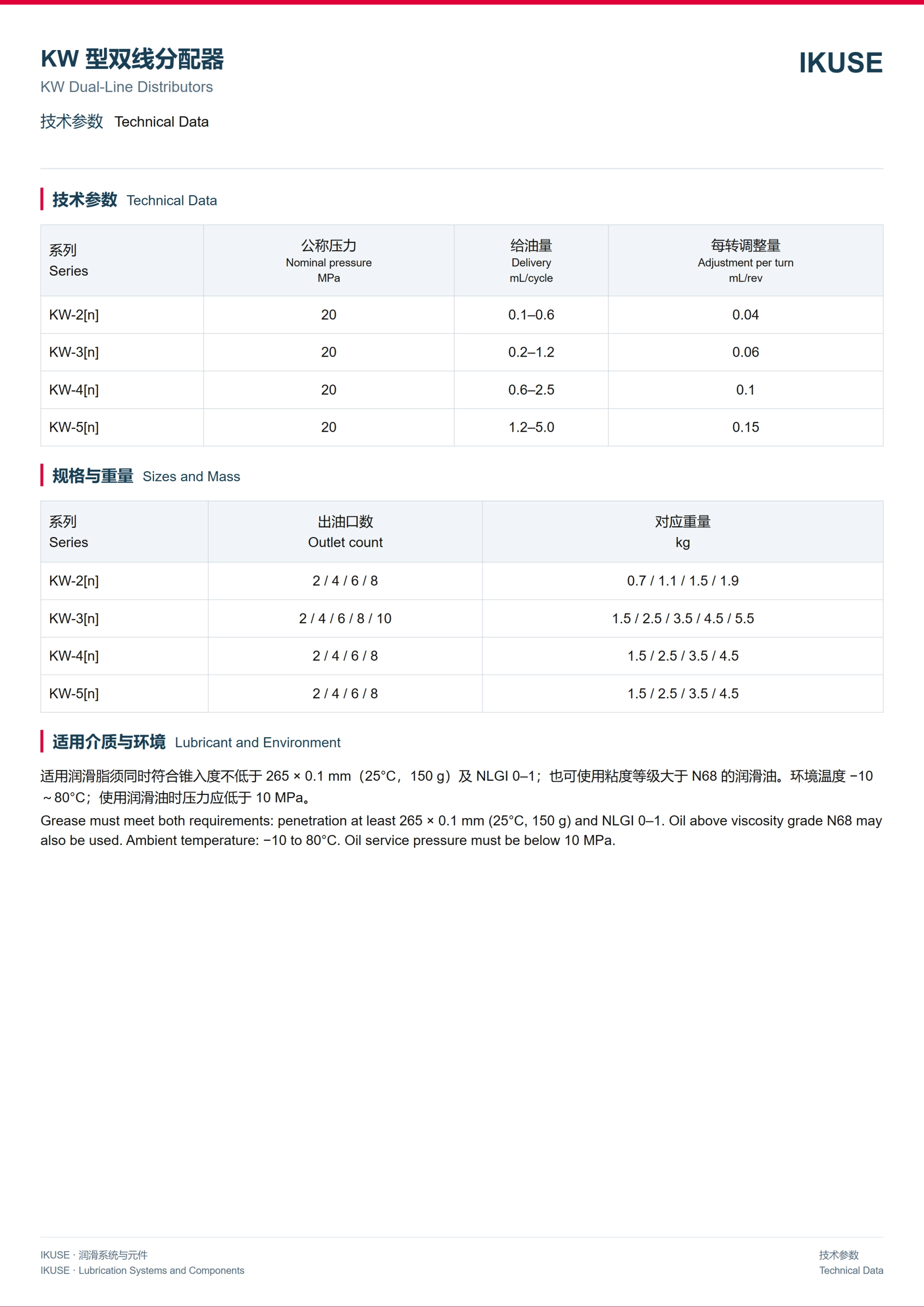

技术资料 / Technical Data

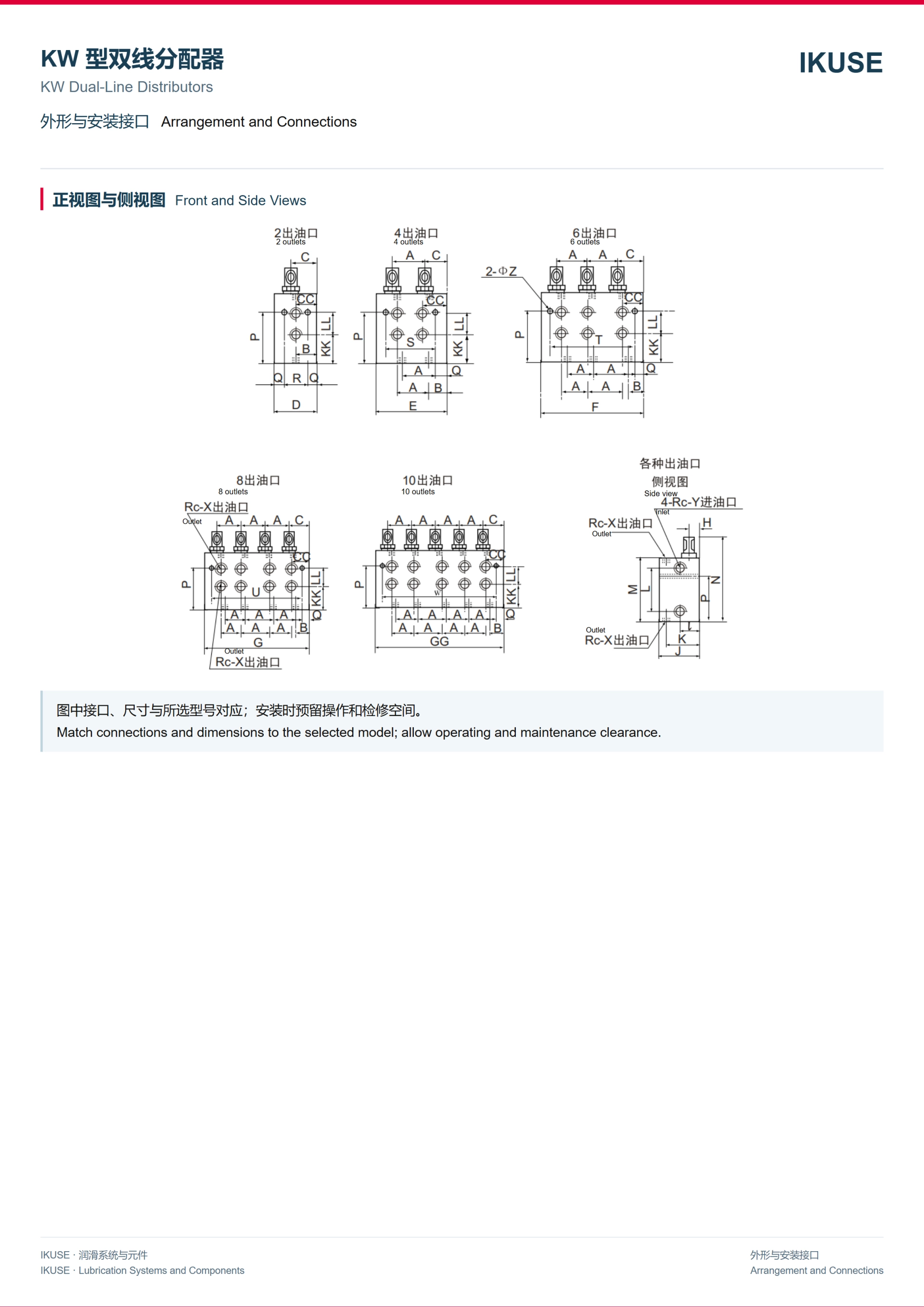

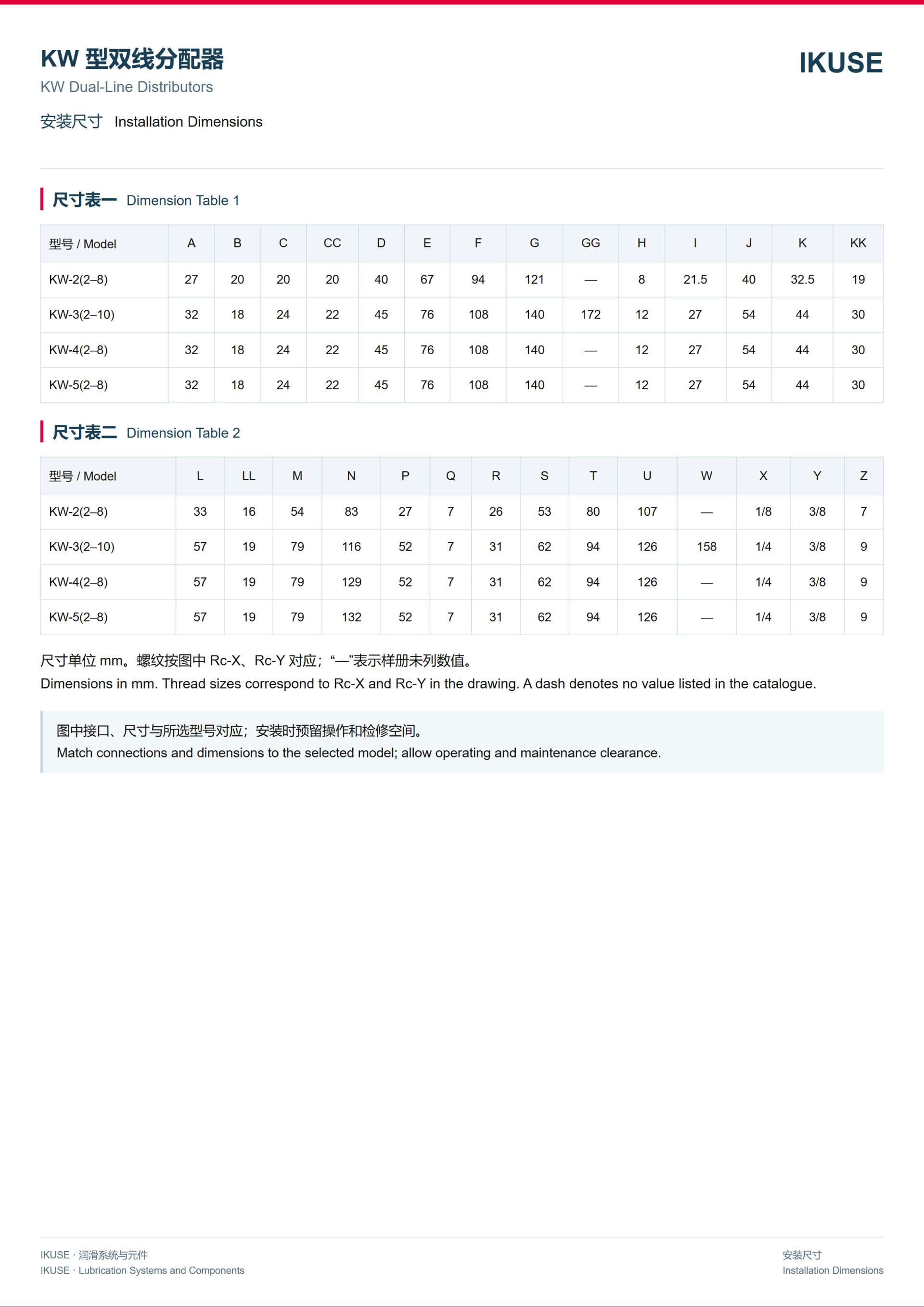

技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
