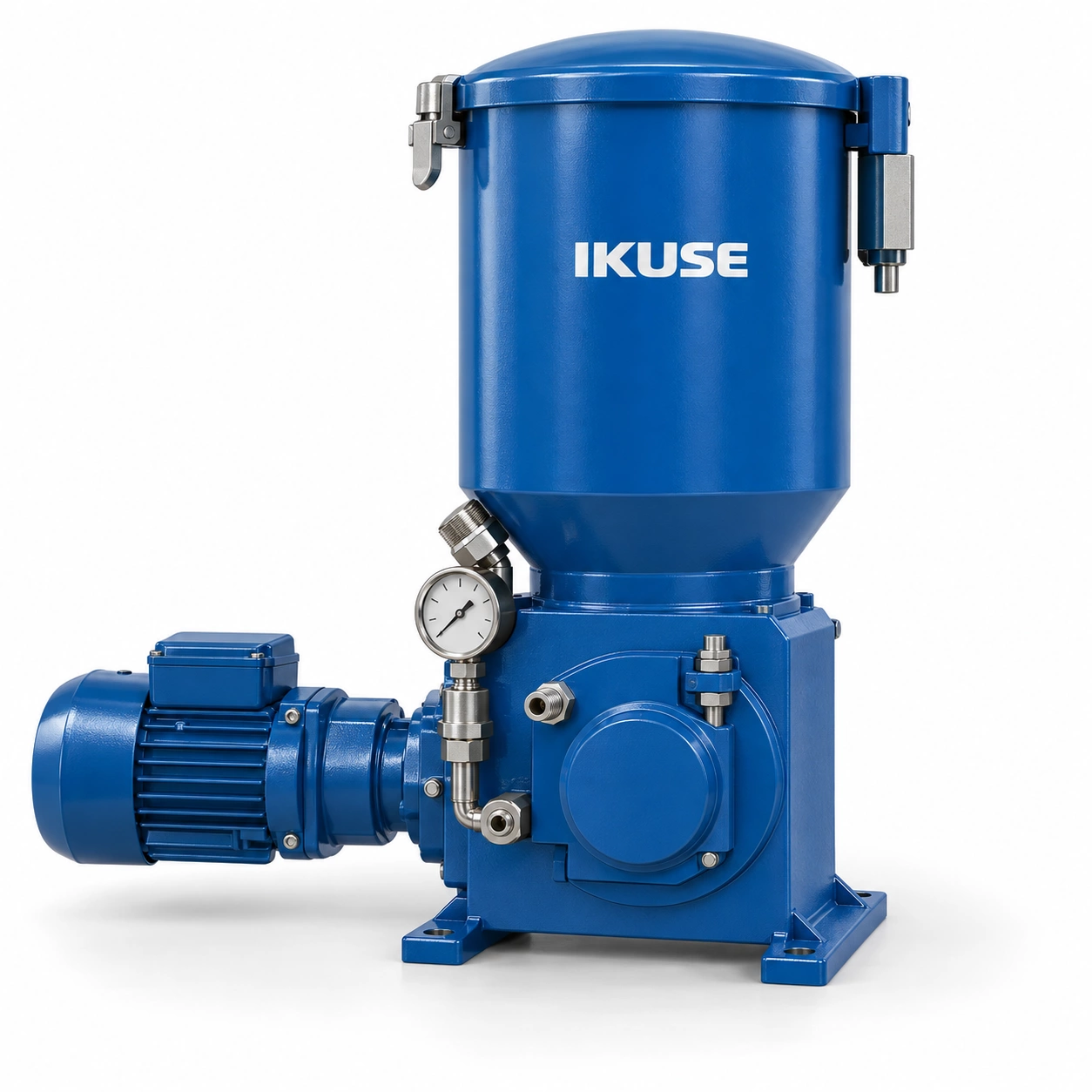

产品概述 / Overview

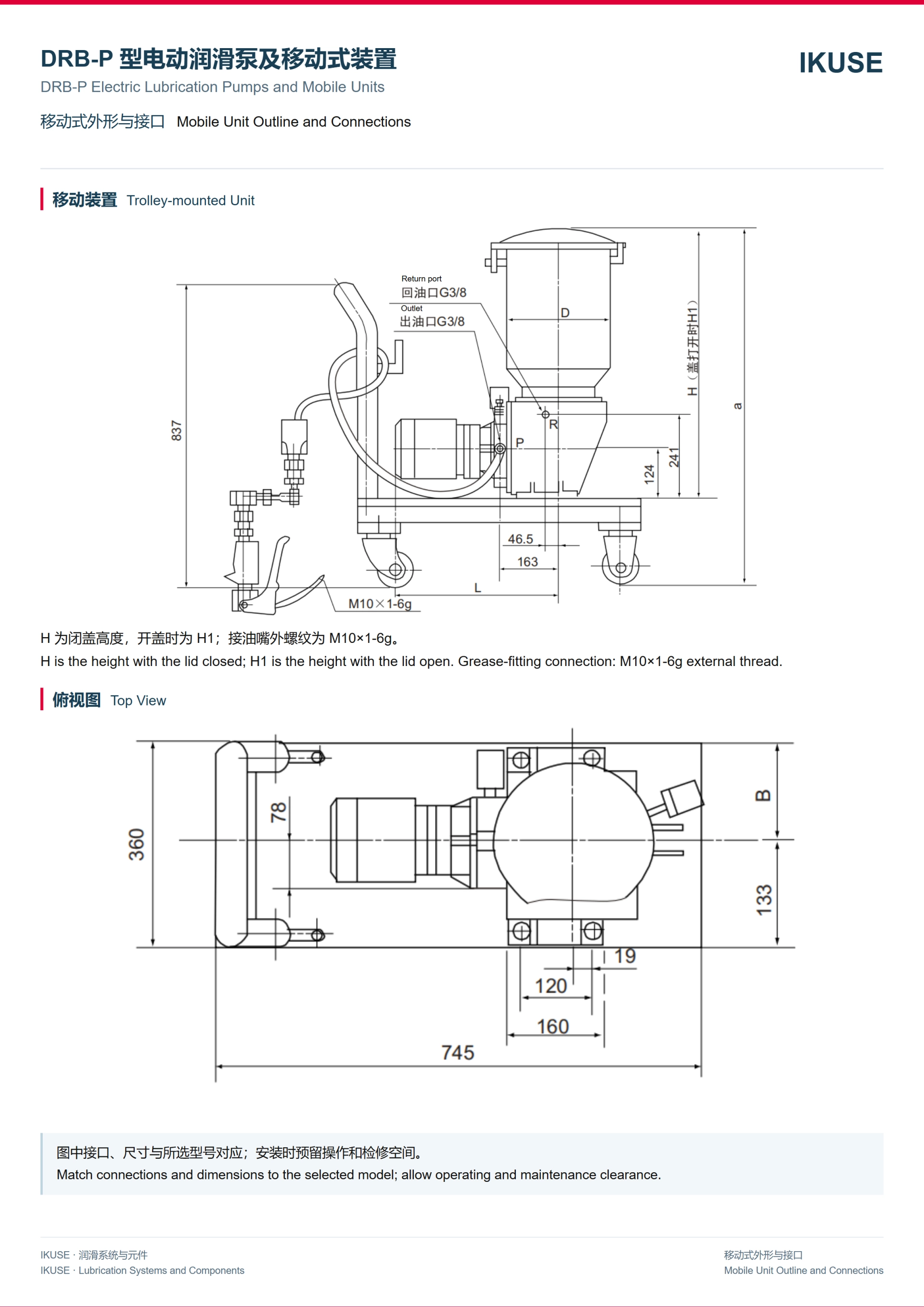

用于 40 MPa 单线或双线集中润滑系统，可配小车、软管、油枪及电缆组成移动式装置。
For 40 MPa single- or dual-line centralized lubrication; a trolley, hose, grease gun and cable can form a mobile unit.
For 40 MPa single- or dual-line centralized lubrication; a trolley, hose, grease gun and cable can form a mobile unit.
选型与使用 / Selection and Service
适用锥入度不低于 220（0.1 mm）的润滑脂或黏度等级高于 N68 的润滑油；按选定型号核对储油量和电机配置。
Use grease with penetration at least 220 (0.1 mm) or oil above grade N68. Check reservoir and motor configuration for the selected model.
Use grease with penetration at least 220 (0.1 mm) or oil above grade N68. Check reservoir and motor configuration for the selected model.

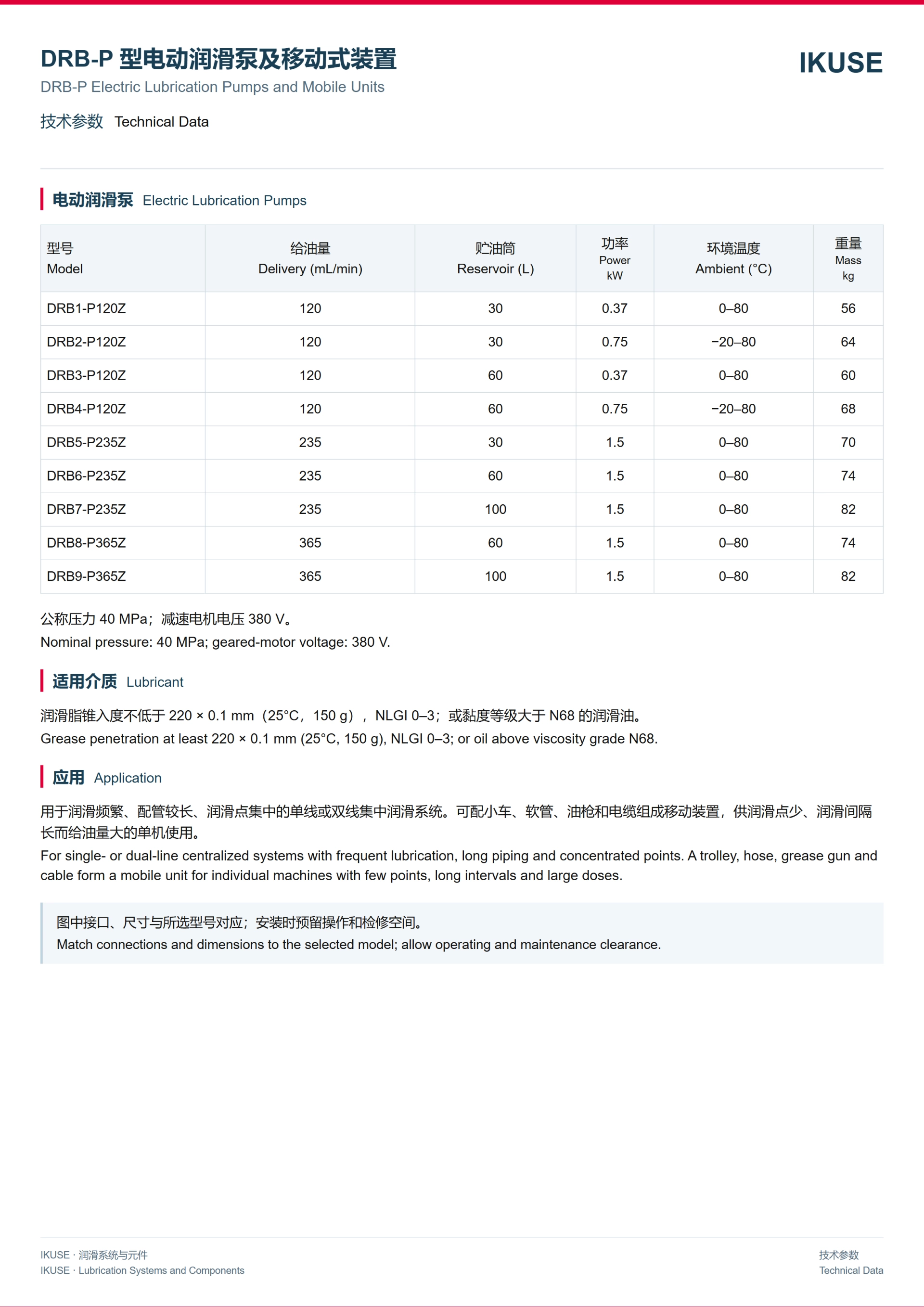

技术资料 / Technical Data

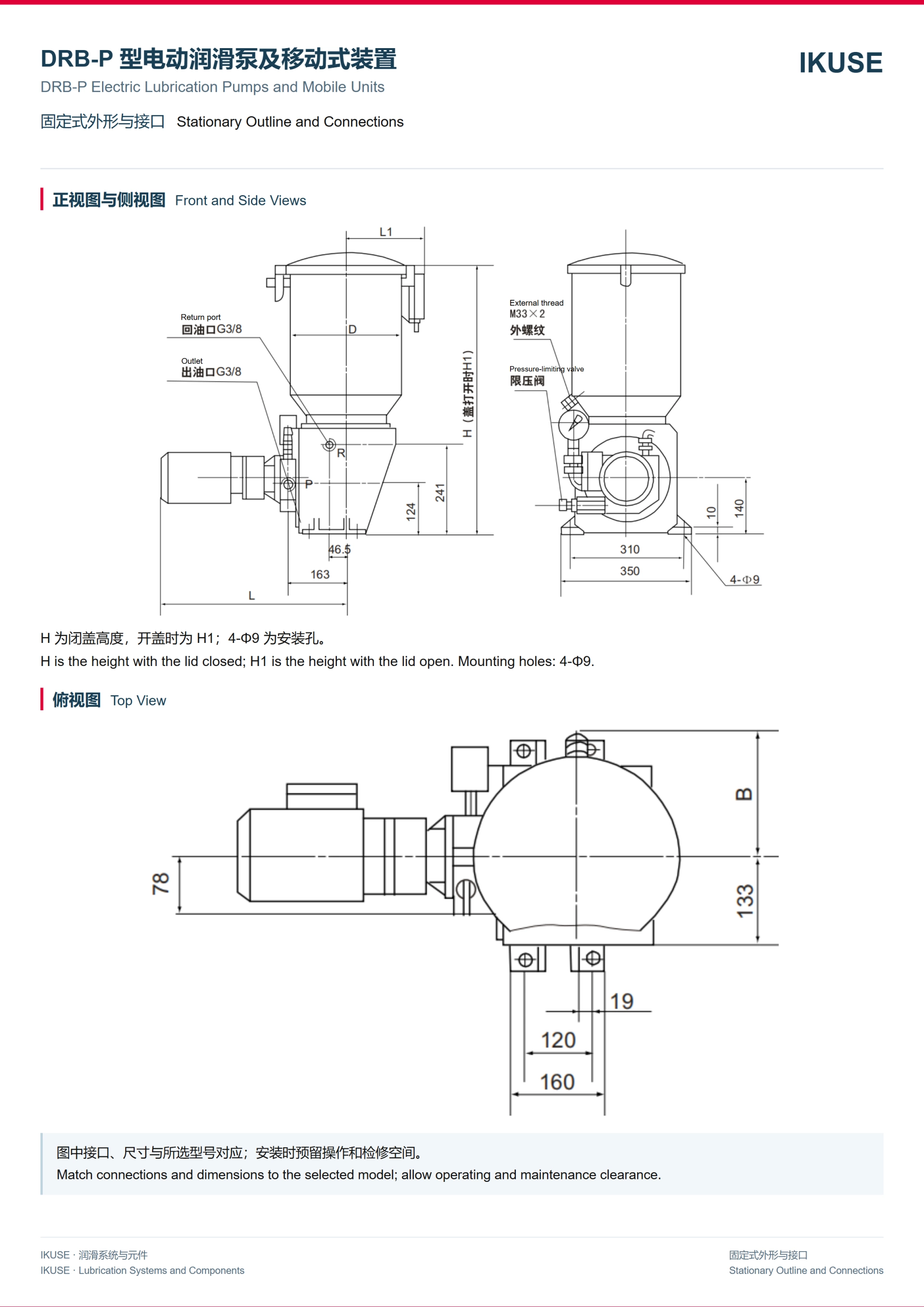

技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
