Overview

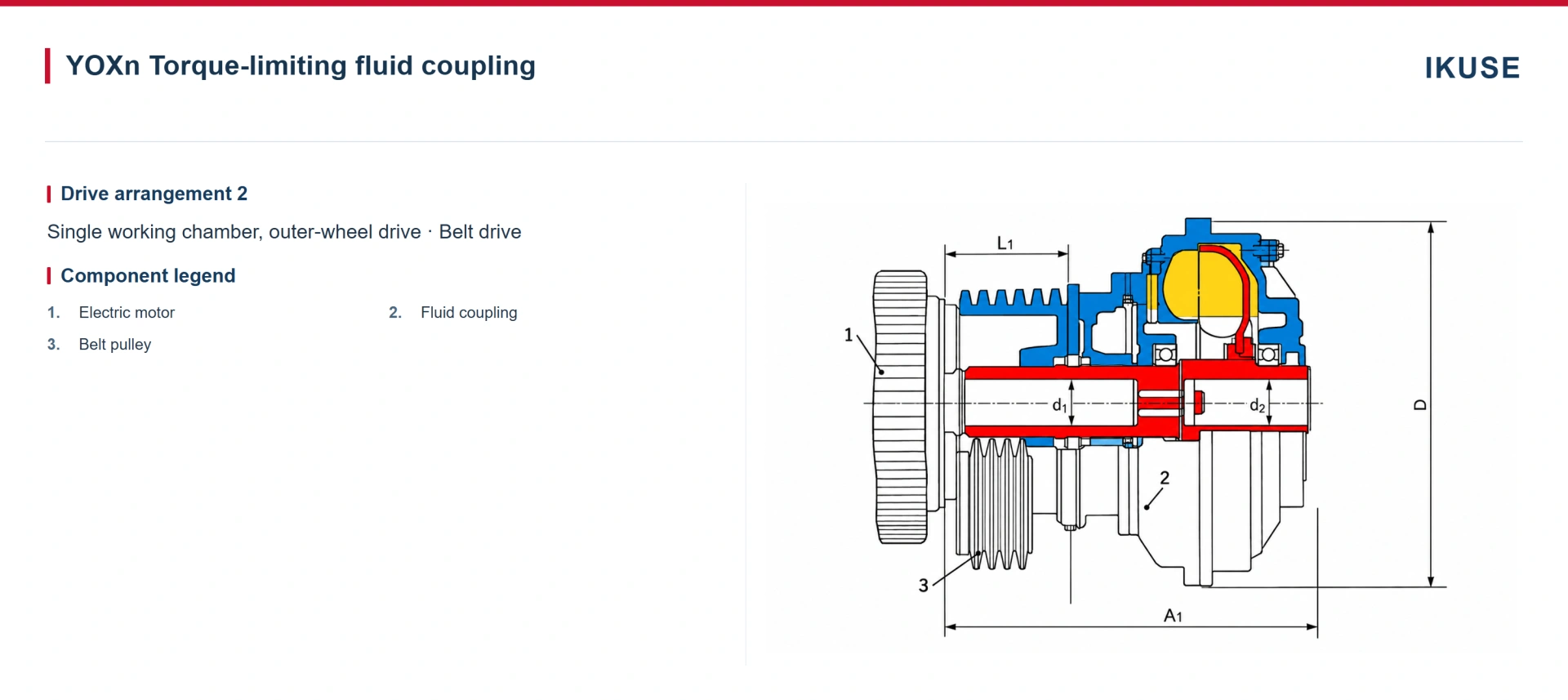

A belt-pulley connection combines hydrodynamic transmission with belt drive for equipment requiring pulley output. Confirm groove profile, pulley pitch diameter and bore.
Construction
Correct selection of size and fluid fill reduces starting shocks and torsional vibration and provides torque limitation under overload.
Applications
For conveyors, lifting and general industrial equipment. Consider load inertia, starting frequency, braking and connection type.

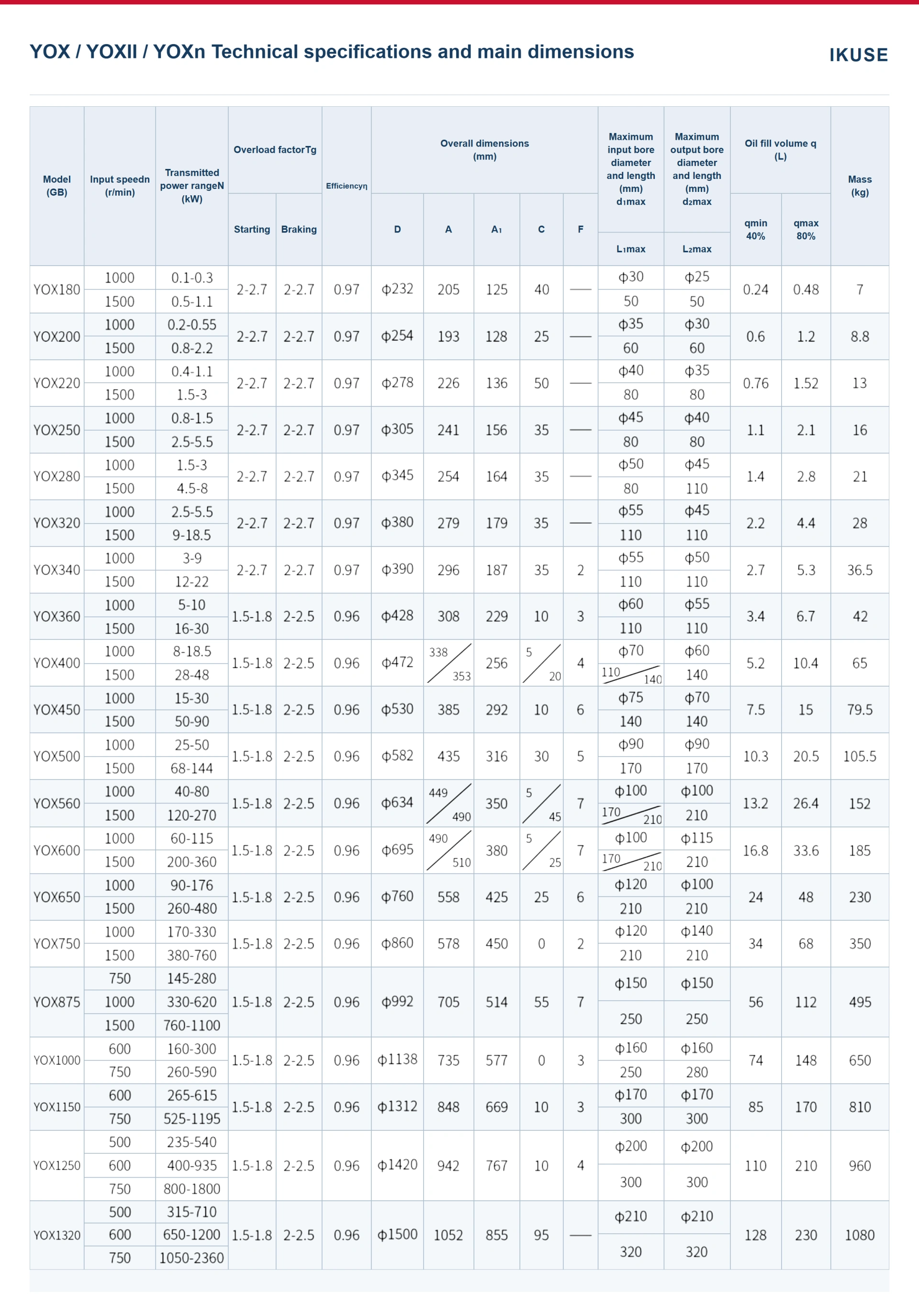

Technical specifications
Construction, mounting dimensions and technical data are provided separately for each configuration. Read power and input speed from the same row for the selected size. Do not mix models or operating conditions. Check bores, shaft lengths and additional connecting elements before installation.
Ordering information
Specify motor power, input speed, driven-machine type, load and starting requirements, both shaft-end dimensions, available space and braking or speed-control requirements. Agree lubrication, cooling, brake-wheel and elastic-coupling requirements before ordering.
