Overview

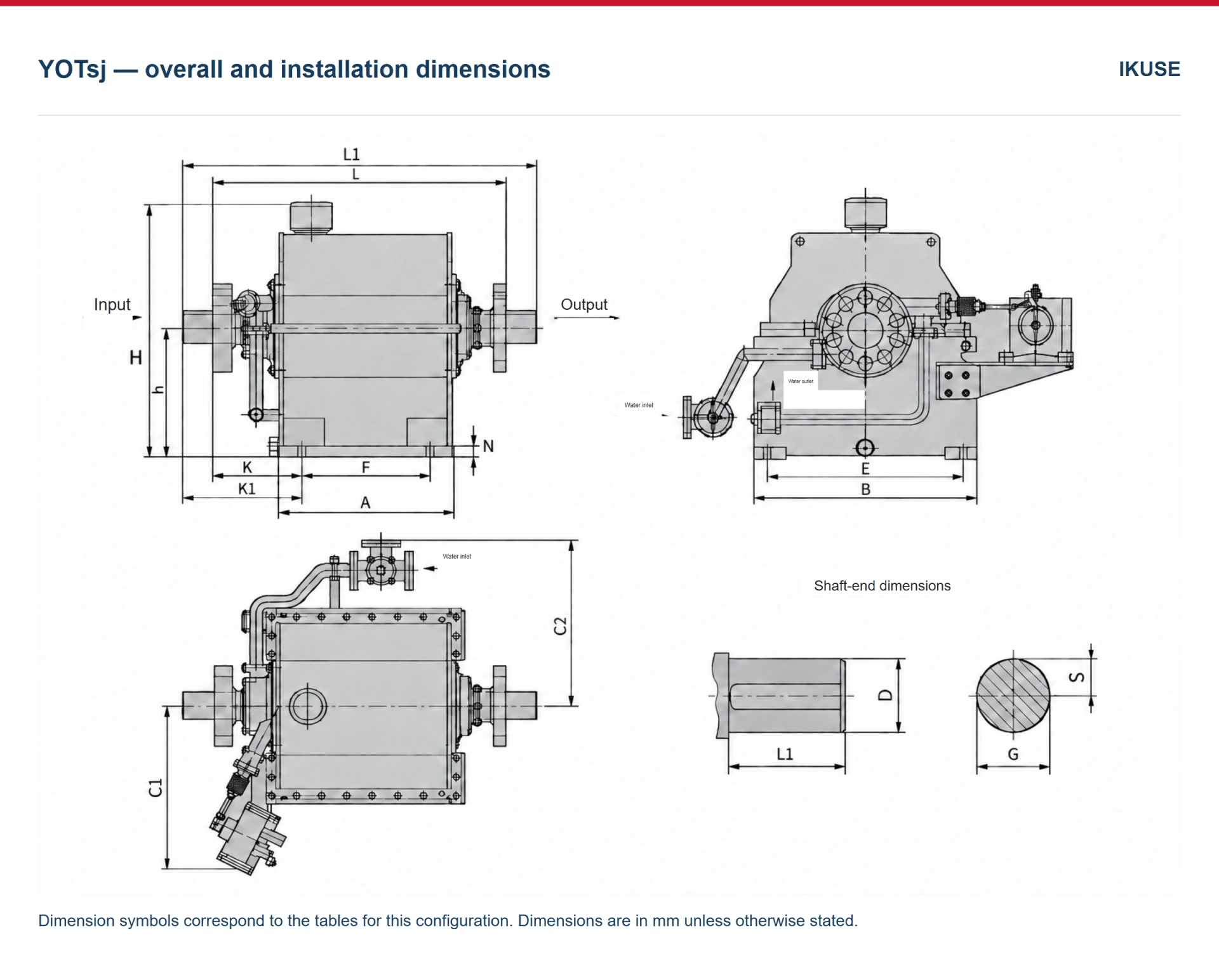

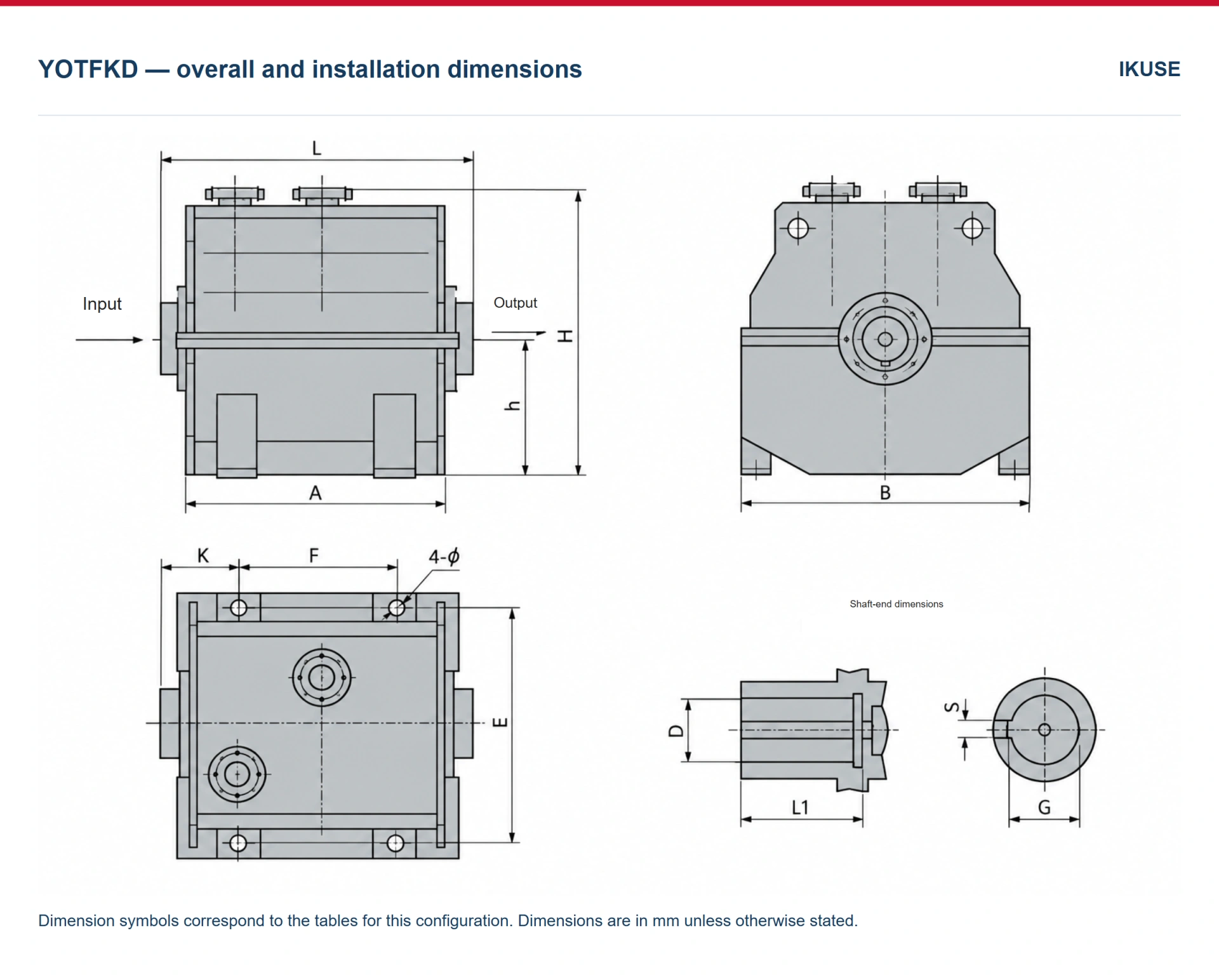

Includes the YOTsj water-operated twin-chamber design and the YOTFKD valve-controlled twin-chamber design. YOTsj uses water; YOTFKD uses water or oil. Construction, mounting dimensions and specifications are provided separately for each design.

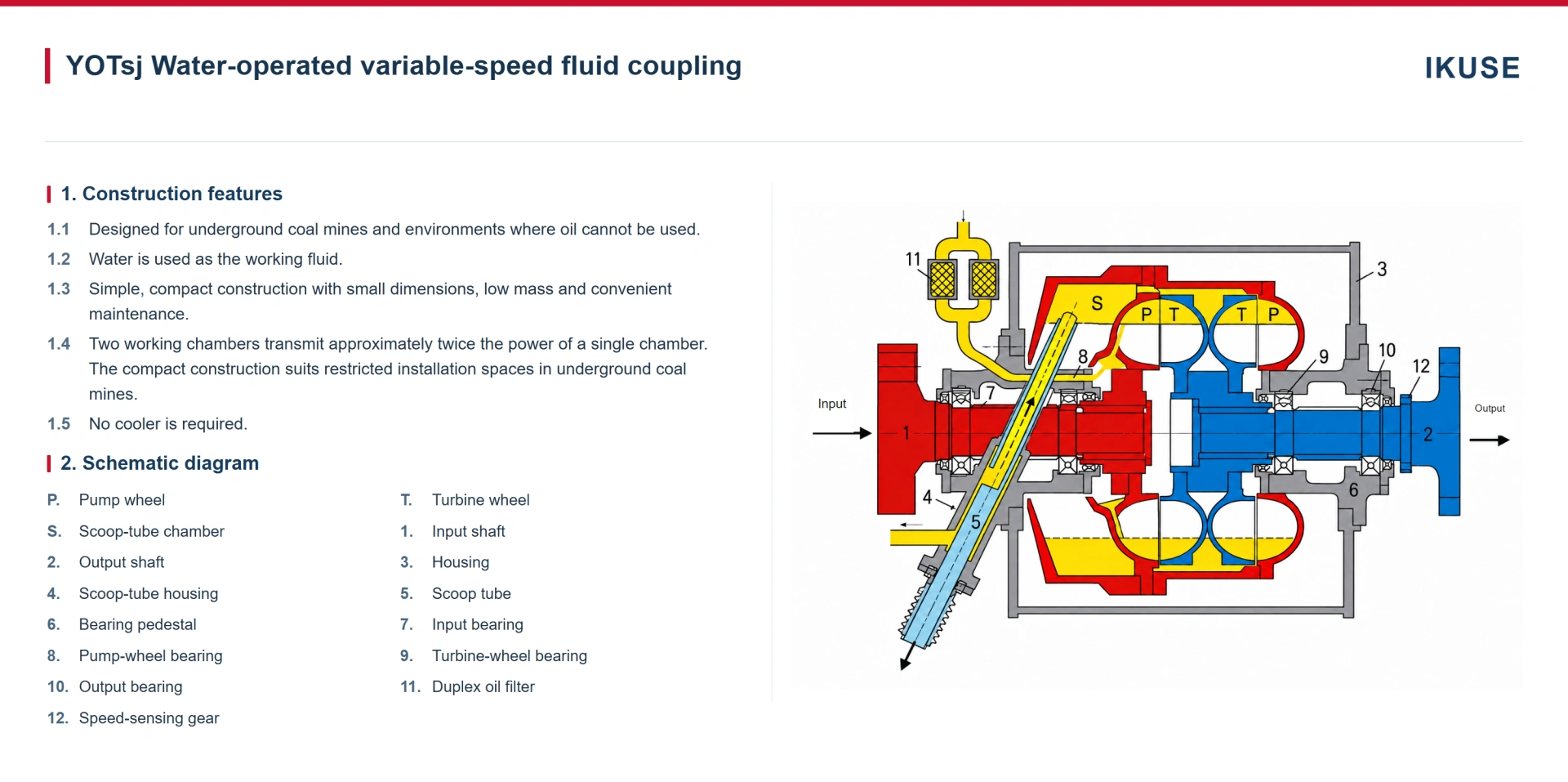

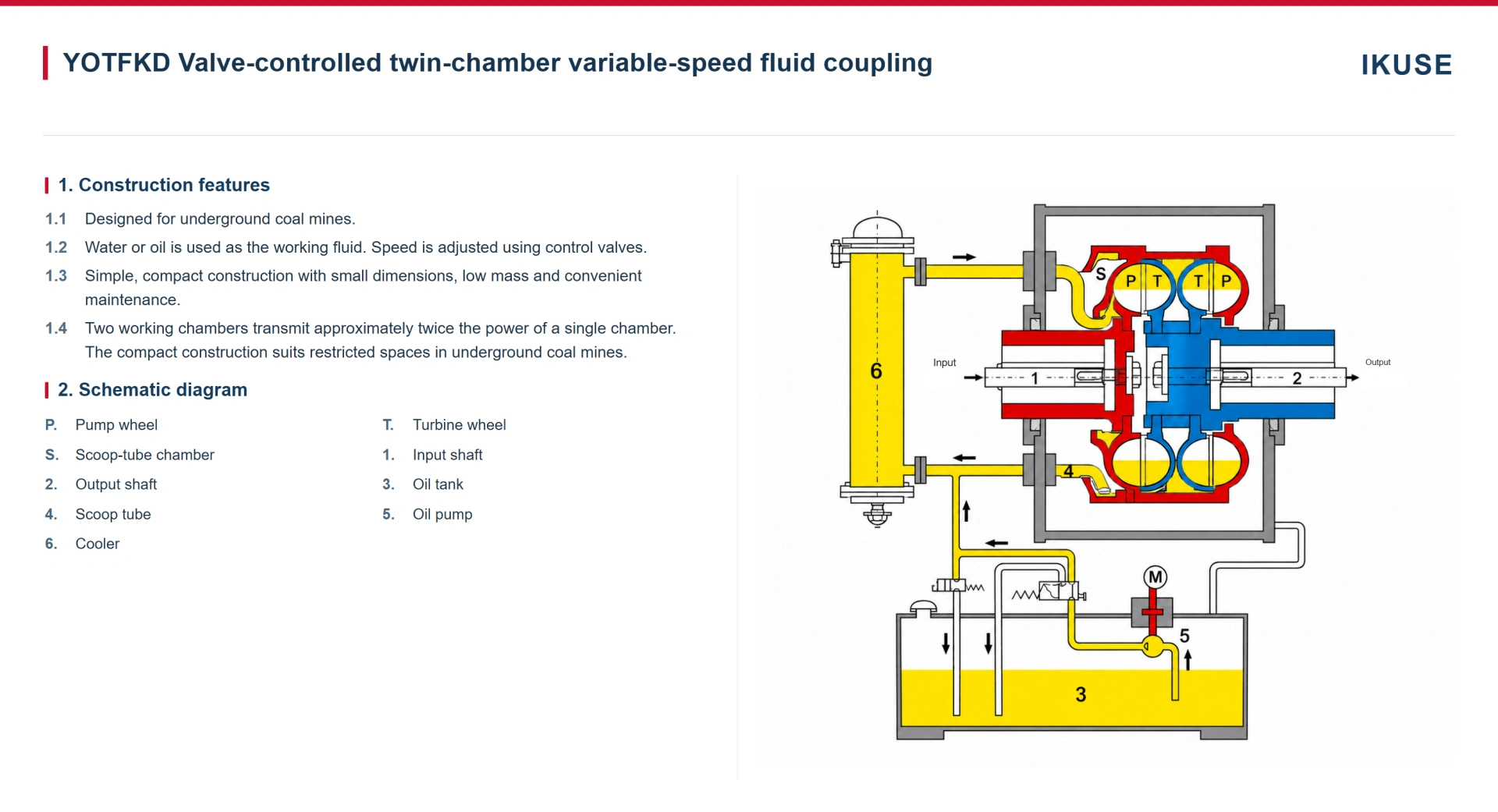

Construction
Changing the working-chamber fill provides stepless control of speed and transmitted power.
Applications
For underground mining drives, including mobile belt conveyors. Select the working fluid and construction for the operating environment.

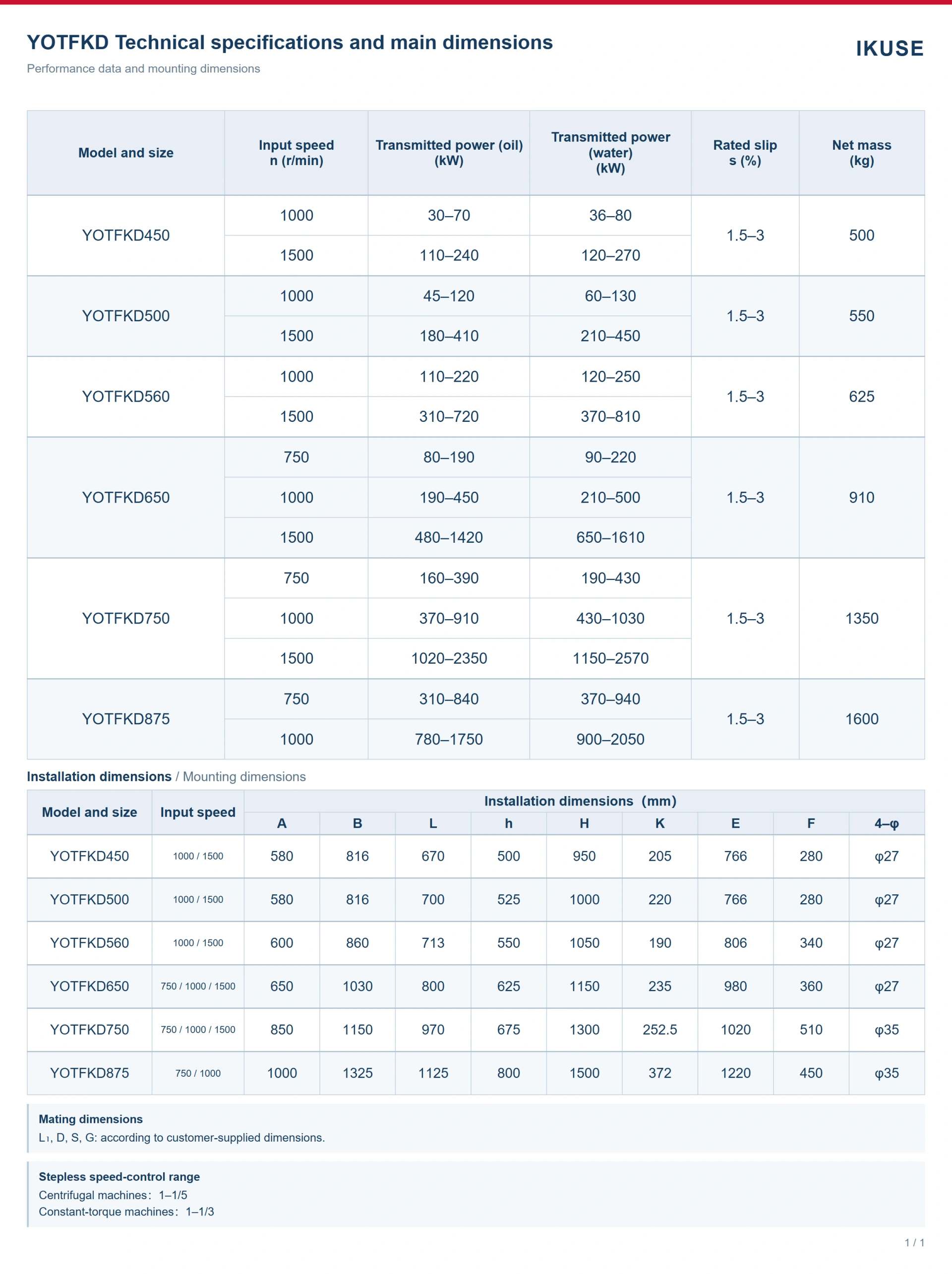

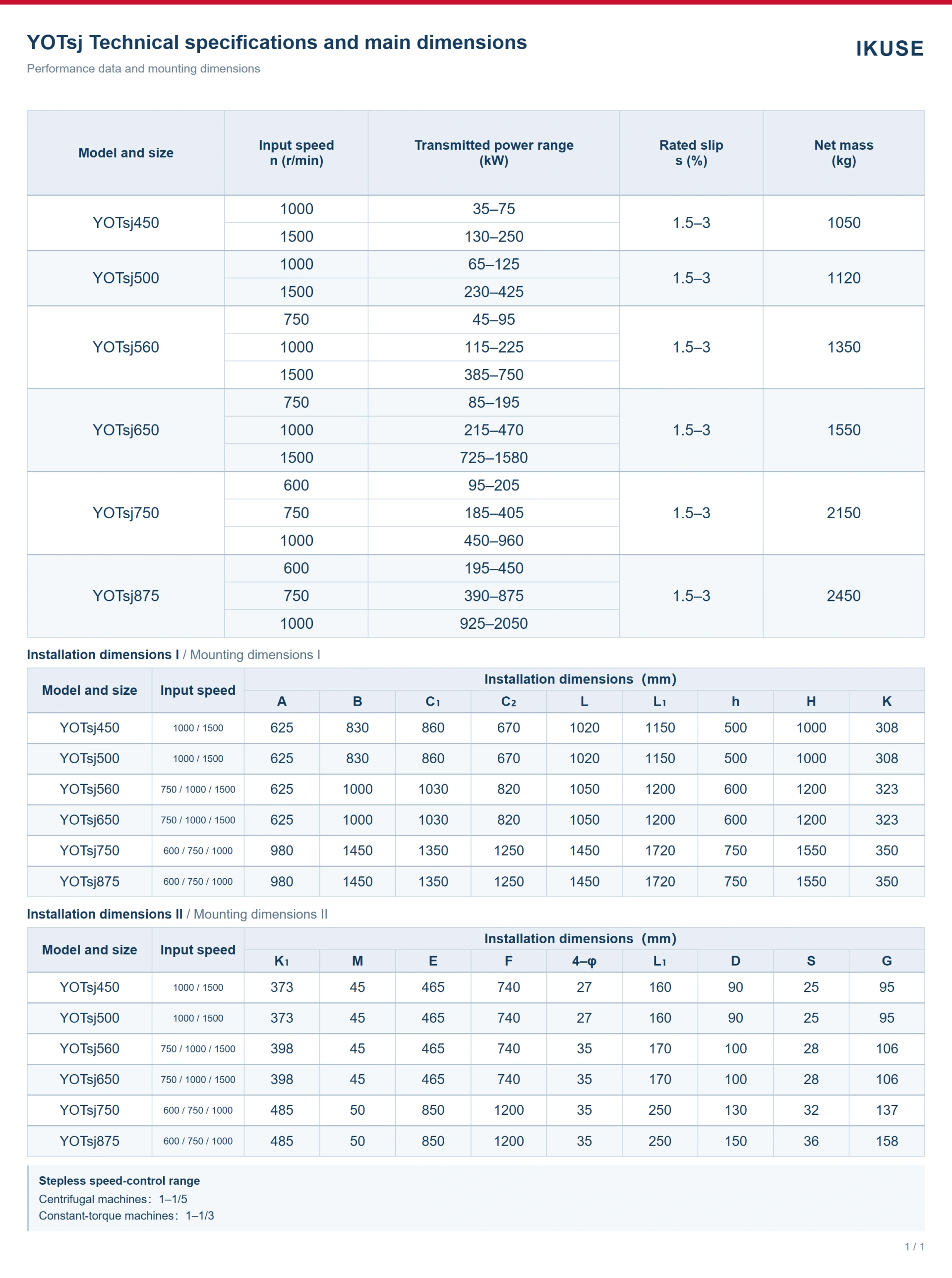

Technical specifications
Construction, mounting dimensions and technical data are provided separately for each configuration. Read power and input speed from the same row for the selected size. Do not mix models or operating conditions. Check bores, shaft lengths and additional connecting elements before installation.
Ordering information
Specify motor power, input speed, driven-machine type, load and starting requirements, both shaft-end dimensions, available space and braking or speed-control requirements. Agree lubrication, cooling, brake-wheel and elastic-coupling requirements before ordering.
