Overview
For 40 MPa dual-line centralized grease systems. Top and bottom outlets discharge alternately as the mains reverse. Indicator rods show operation and adjustment screws set delivery. Use NLGI 0-2 grease with penetration at least 265 × 0.1 mm at 25 °C and 150 g, or oil above N68. Ambient temperature: −10 to 80 °C. Oil-service pressure: 20 MPa.
Selection and operation

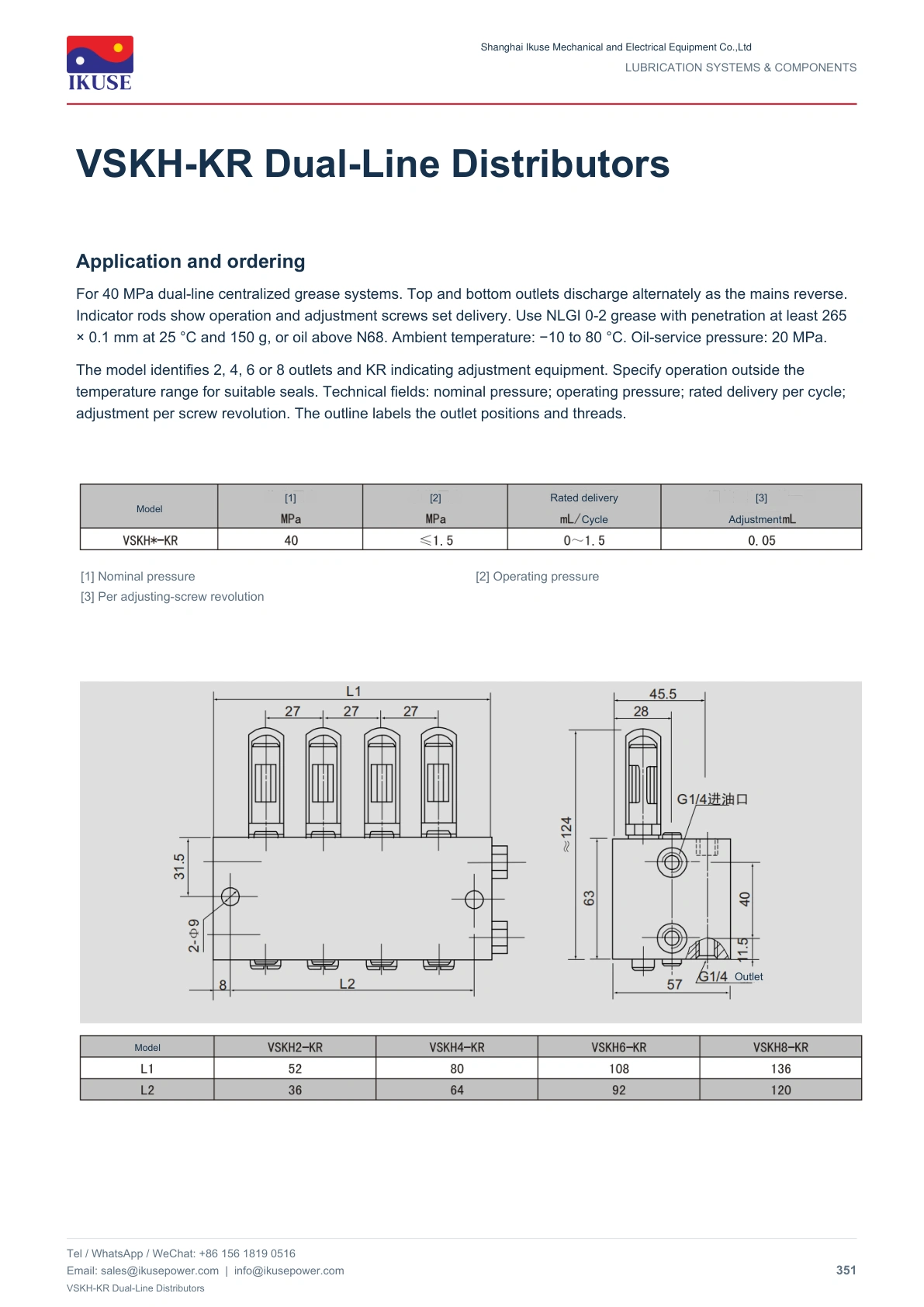

Select according to the number of outlets and delivery per outlet. Mounting dimensions and outlet positions are shown in the drawing for the corresponding model.
Technical documentation
Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
