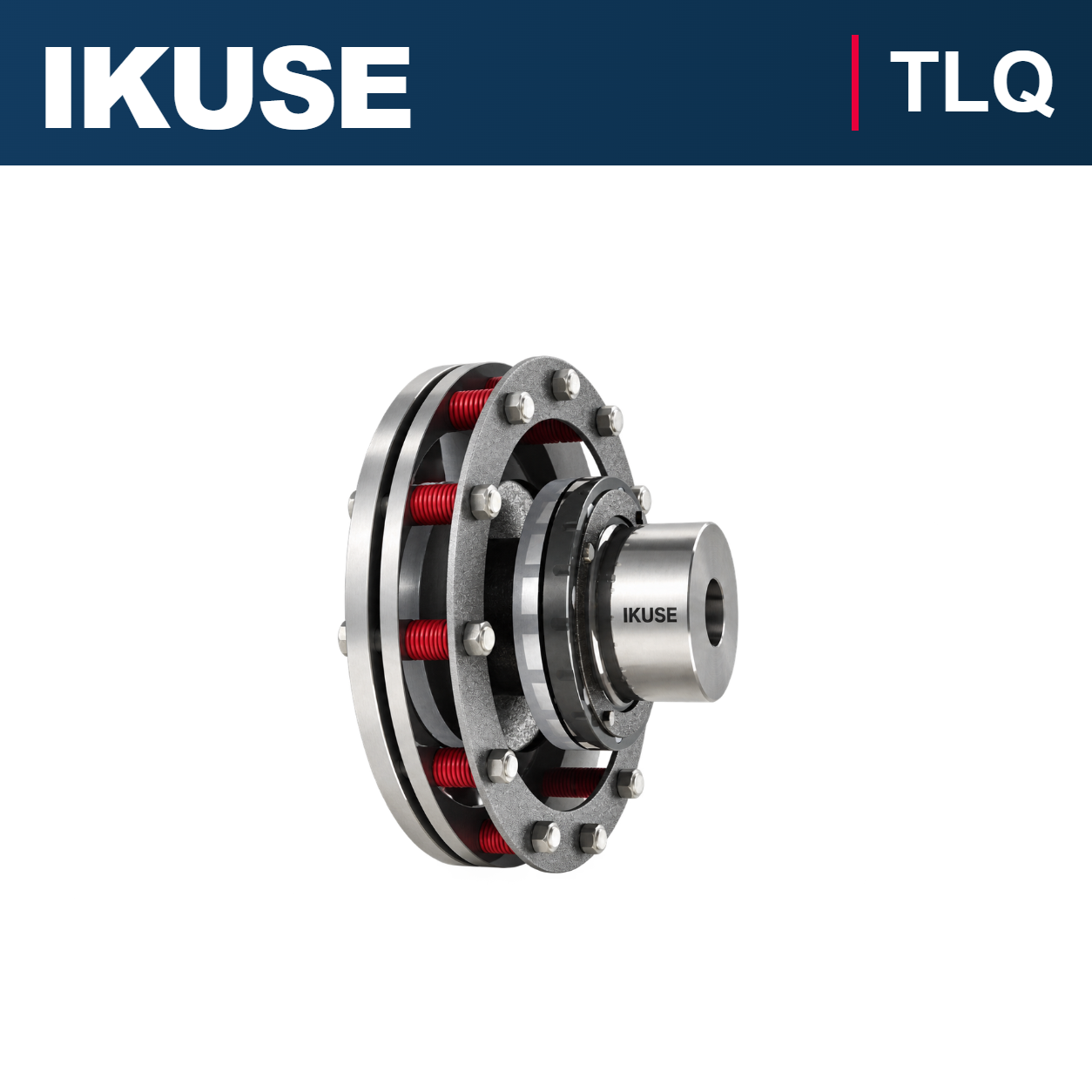

Overview
The main parts are the driving flange, driven hub and torque-limiting mechanism between them. The mechanism typically comprises friction discs or blocks, a stack of disc springs providing axial clamping force, and a graduated nut for spring-force adjustment. A disengagement indicator pin and a microswitch-actuating signal device are commonly included, with a housing for sealing and protection.

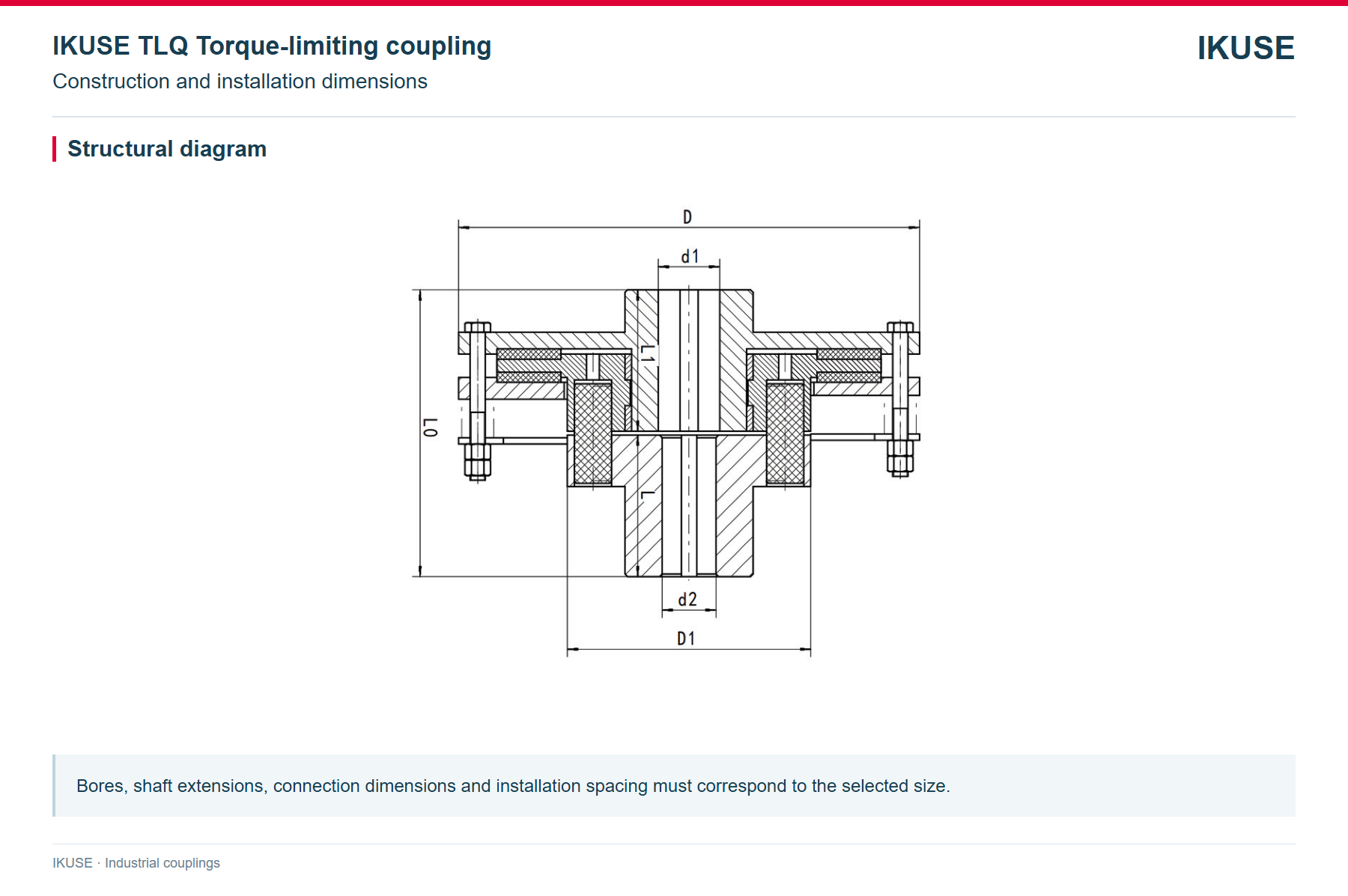

Construction and maintenance
Specify operating torque, overload conditions, speed and required protective action when ordering.

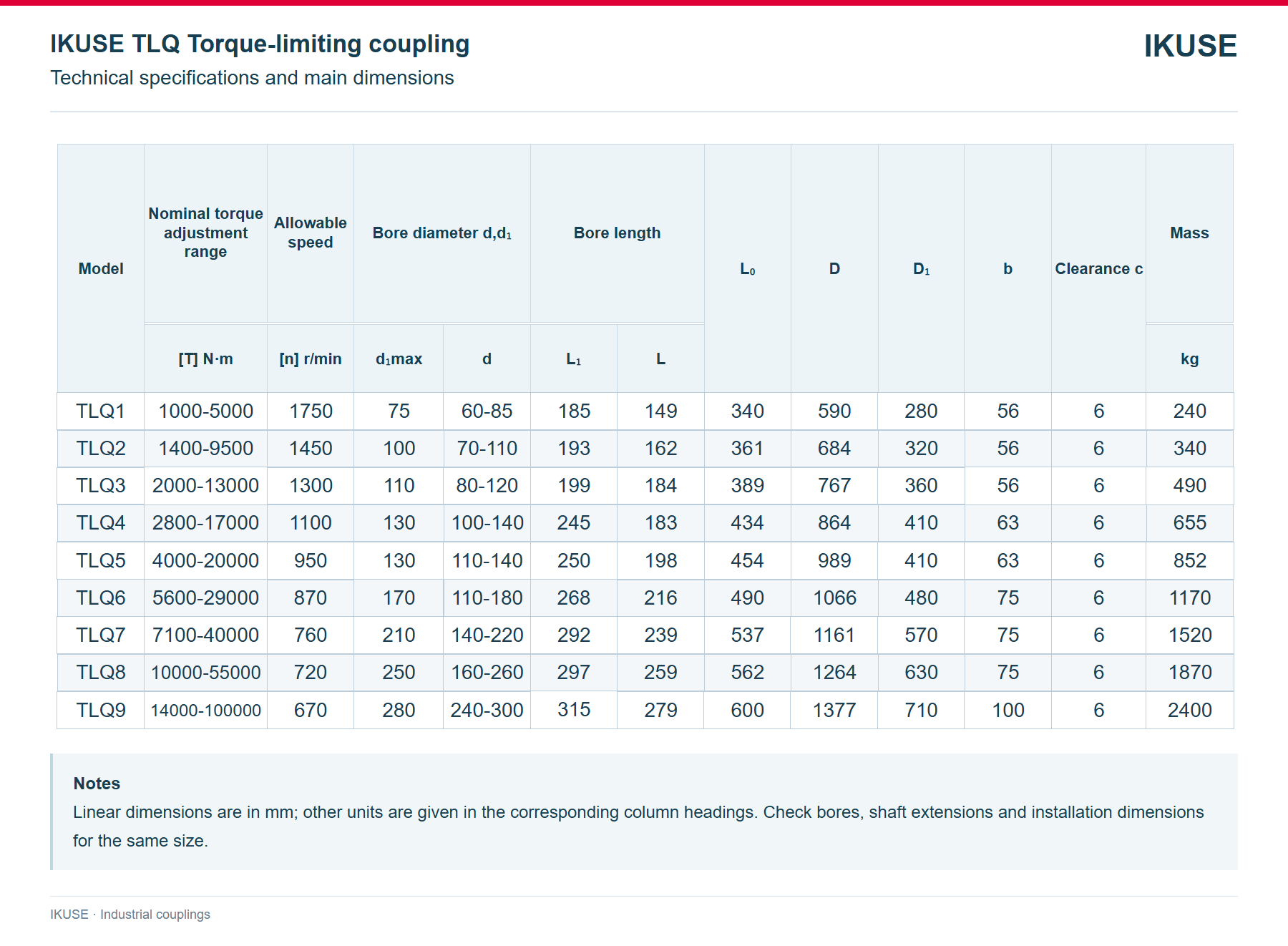

Technical specifications
Torque, speed, bores and installation dimensions must all correspond to the same size.
Ordering information
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation conditions. Include brake, dynamic-balancing and elastic-element requirements where applicable.
