Home
›
Products
›
Self-operated Control Valves
›
IKUSE Pilot-operated Downstream Pressure Control Valve
IKUSE · Industrial Valves
Ball, gate, globe, check, control and butterfly valves.
Self-operated Control Valves
IKUSE Pilot-operated Downstream Pressure Control Valve

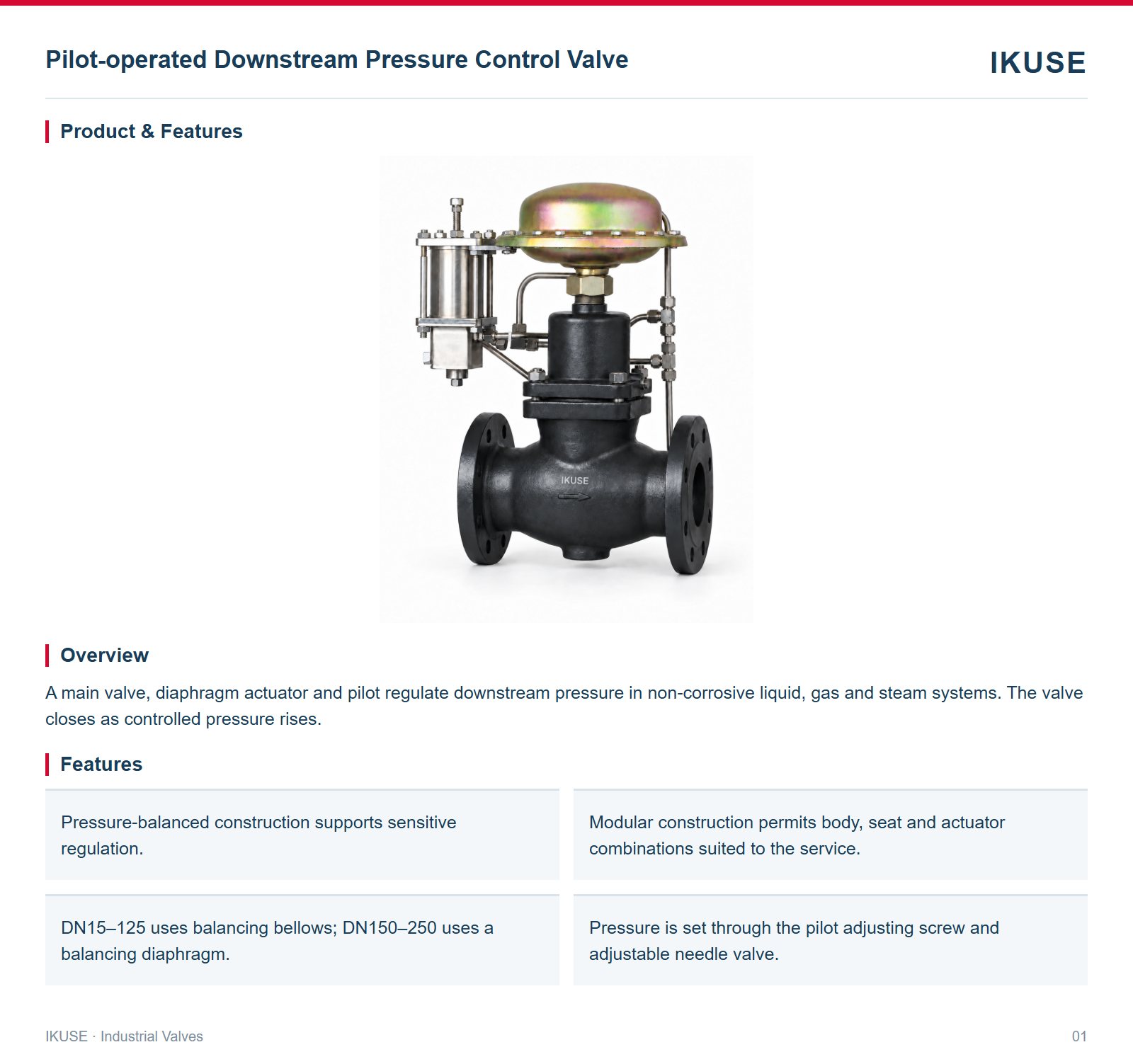

A main valve, diaphragm actuator and pilot regulate downstream pressure in non-corrosive liquid, gas and steam systems. The valve closes as controlled pressure rises.
Price
Price on request
Submit requirements for a customized quote
PN
1.6 / 4.0 MPa
Size
DN15–250
Brand
IKUSE
Action
Closes
Operation
Downstream
Service Hotline
+86 156 1819 0516

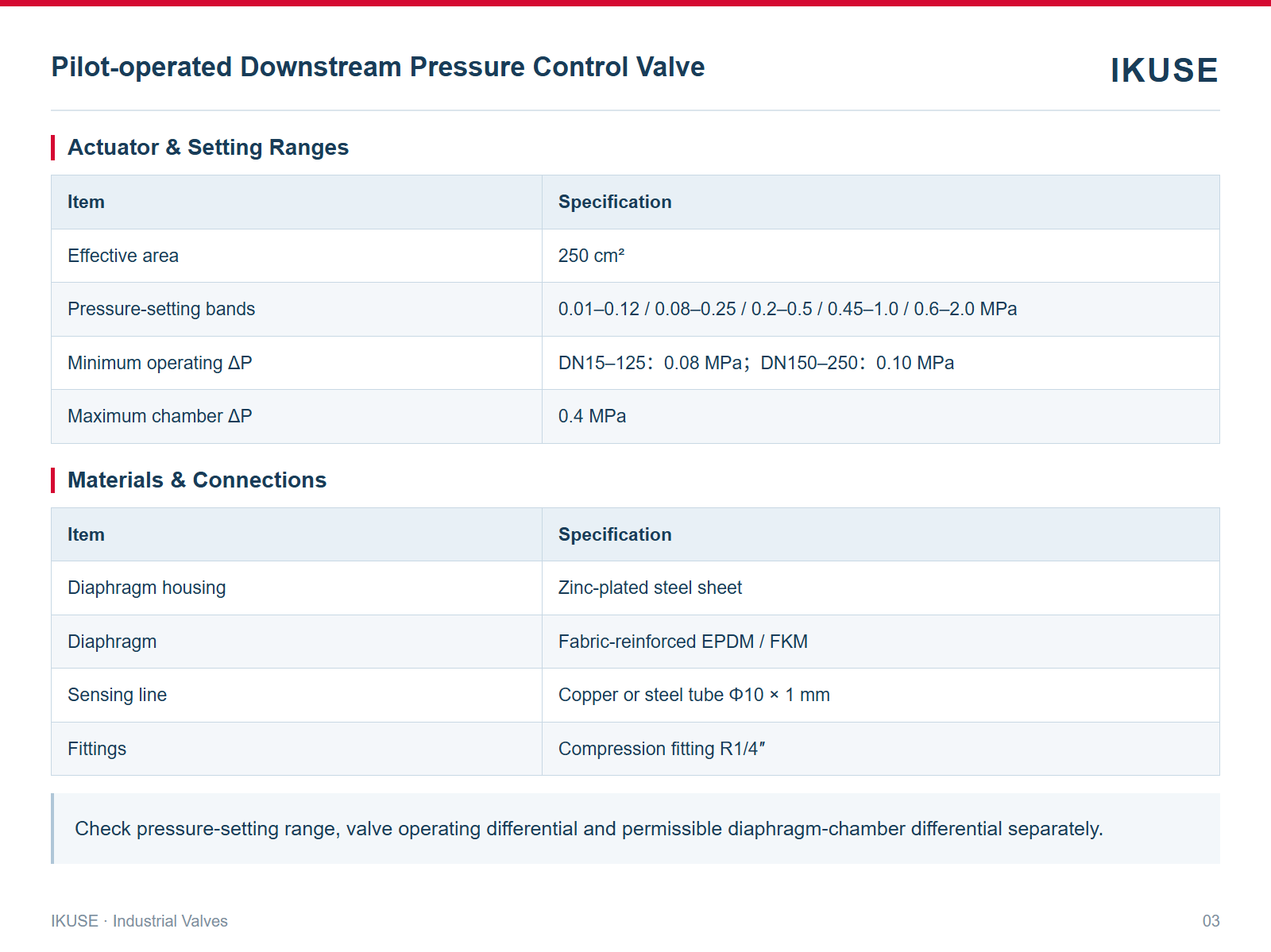

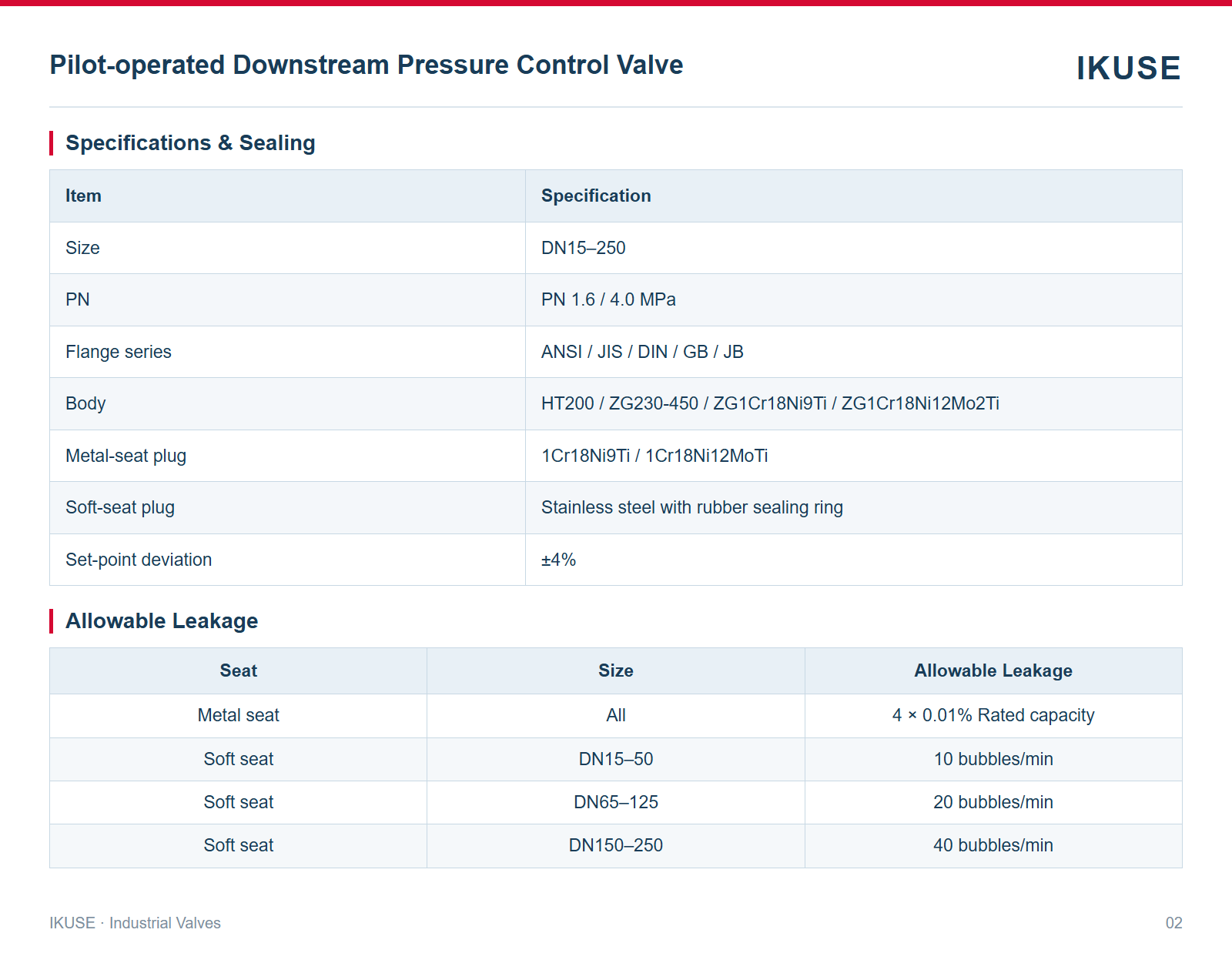

Technical Parameters
Technical Specifications
| PN | 1.6 / 4.0 MPa |
| Size | DN15–250 |
| Brand | IKUSE |
| Action | Closes |
| Operation | Downstream |
Product Details
Product Details
