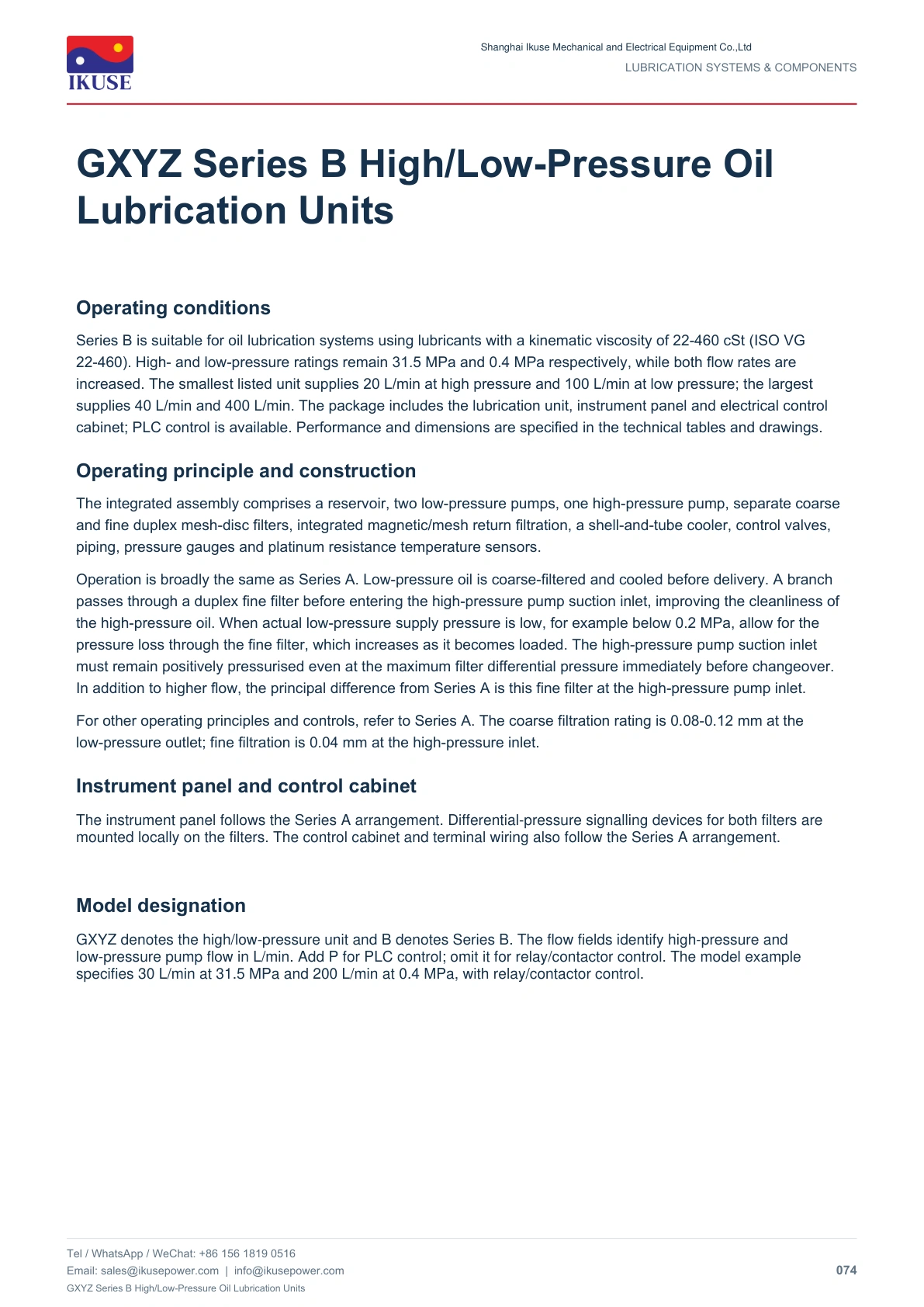

IKUSE Circulating Oil Lubrication Systems

IKUSE GXYZ Series B High/Low-Pressure Oil Lubrication Units

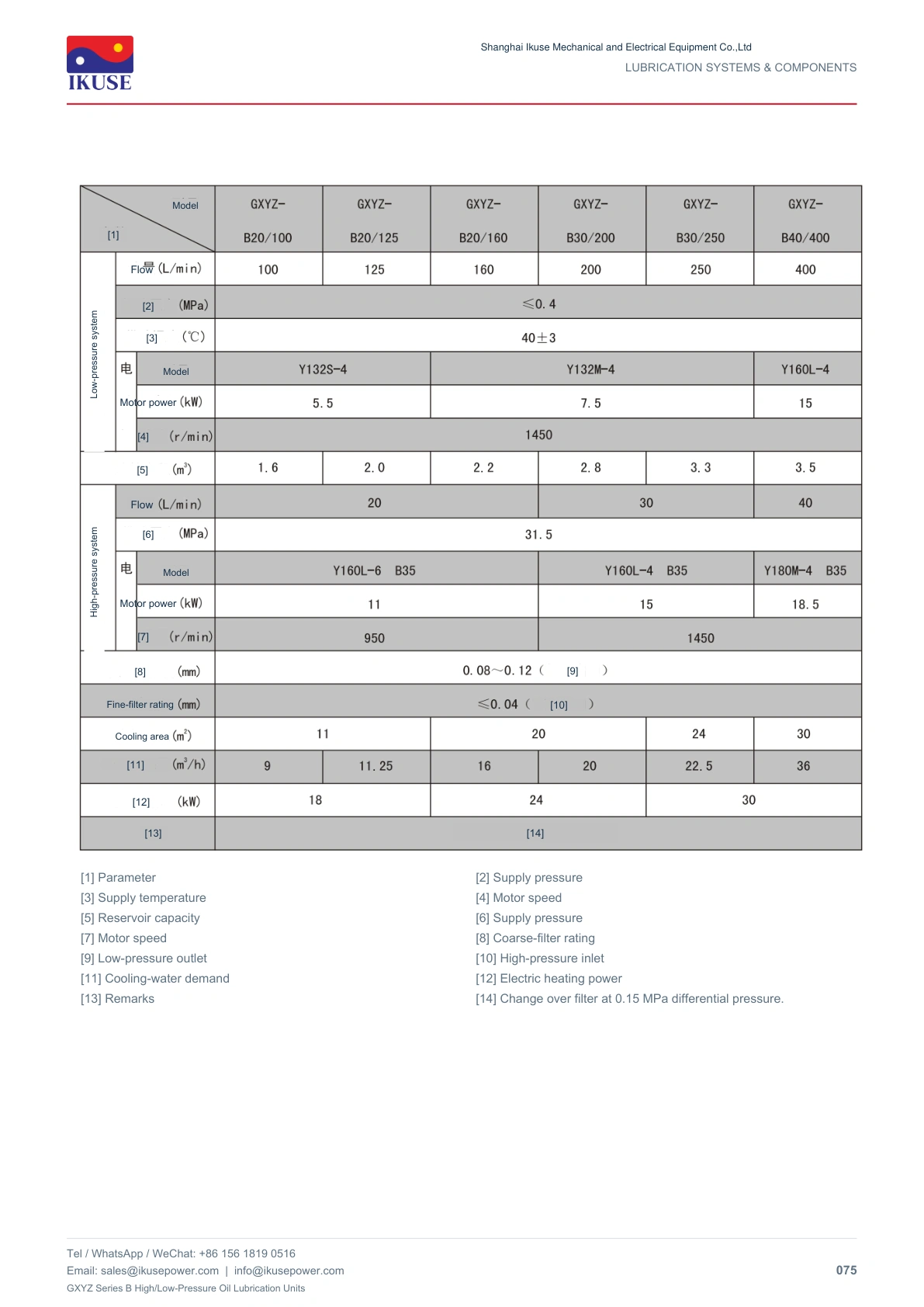

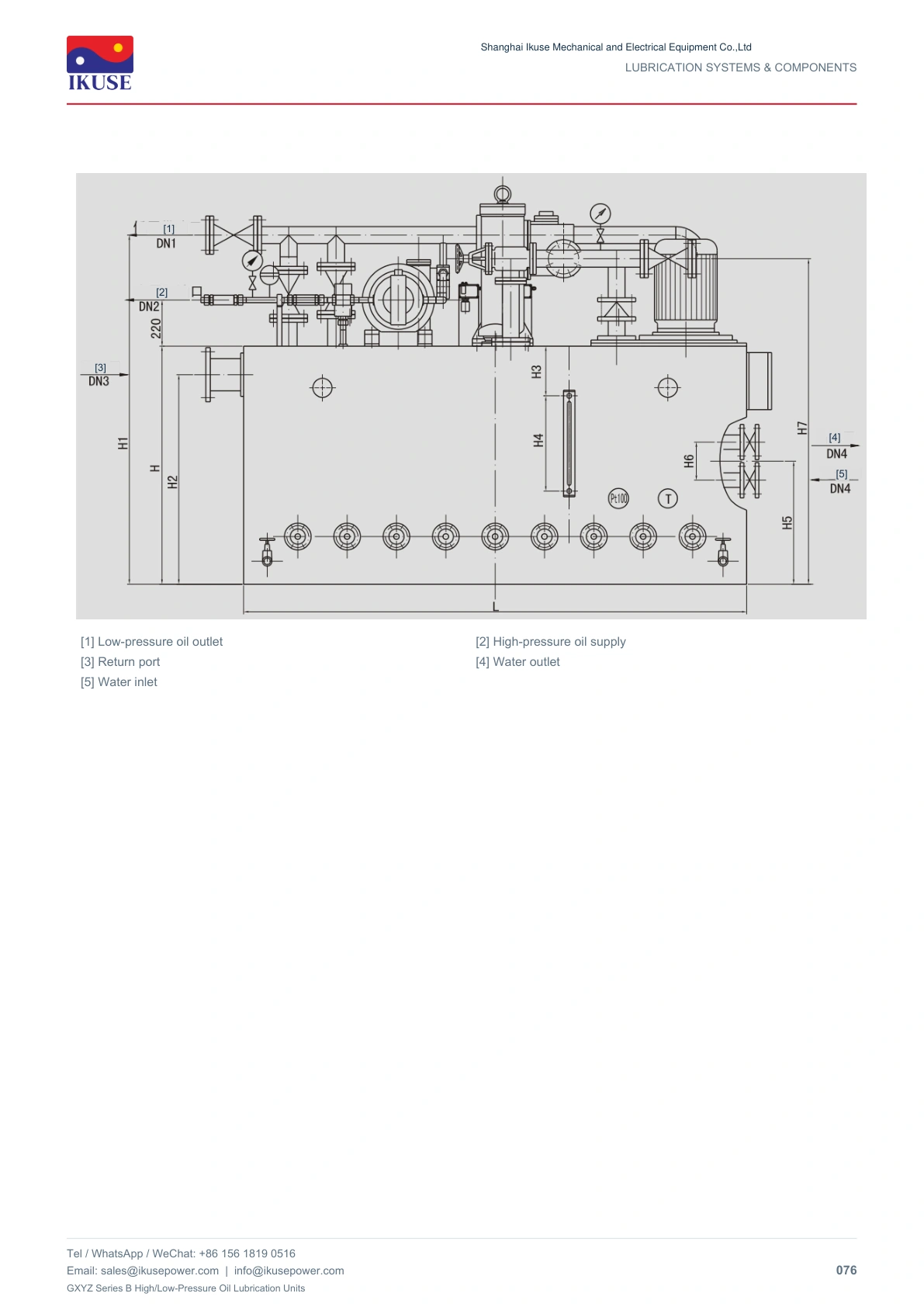

Series B is suitable for oil lubrication systems using lubricants with a kinematic viscosity of 22-460 cSt (ISO VG 22-460). High- and low-pressure ratings remain 31.5 MPa and 0.4 MPa respectively, while both flow rates are increased. The smallest listed unit supplies 20 L/min at high pressure and 100 L/min at low pressure; the largest supplies 40 L/min and 400 L/min. The package includes the lubrication unit, instrument panel and electrical control cabinet; PLC control is available. Performance and dimensions are specified in the technical tables and drawings.
