IKUSE · Industrial Valves
Ball, gate, globe, check, control and butterfly valves.
Globe Valves

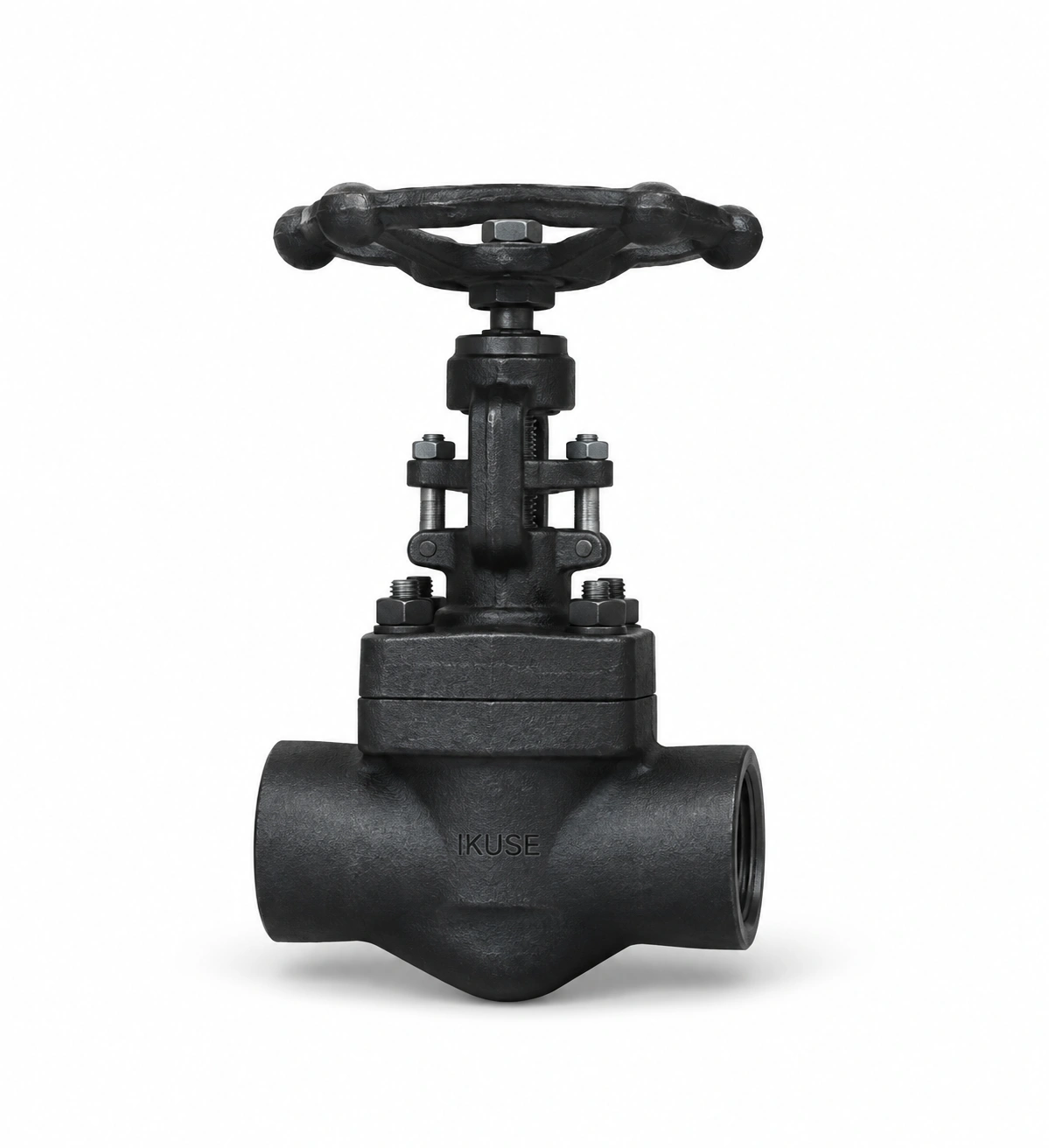

IKUSE Bolted-bonnet Forged Steel Globe Valve

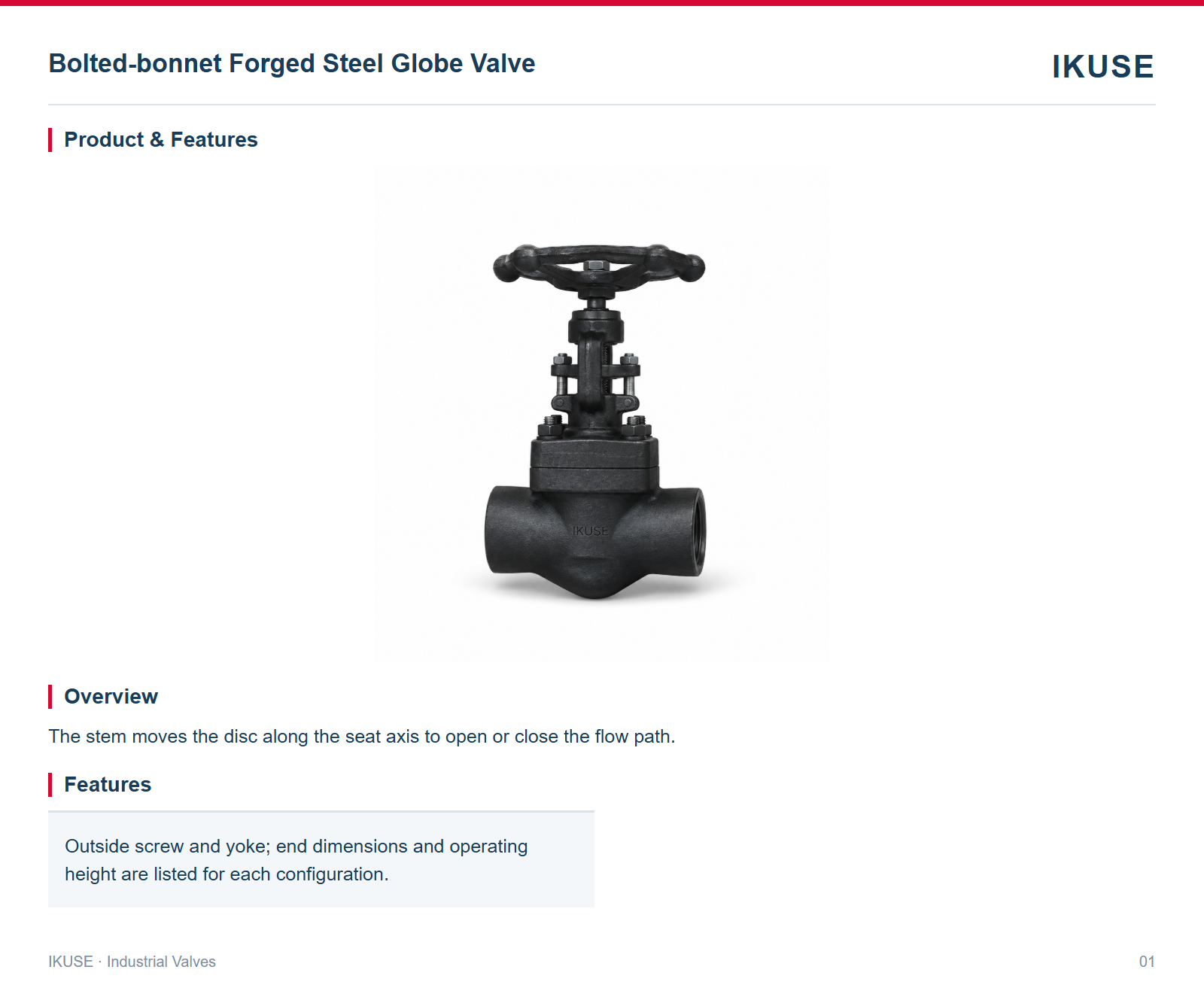

The stem moves the disc along the seat axis to open or close the flow path.
Price
Price on request
Submit requirements for a customized quote
Bore
Full or reduced bore (see individual tables)
Ends
Female thread, socket weld or butt weld
Class
800 / 900–1500
Cover
Bolted
Operation
Handwheel
Service Hotline
+86 156 1819 0516
Technical Parameters

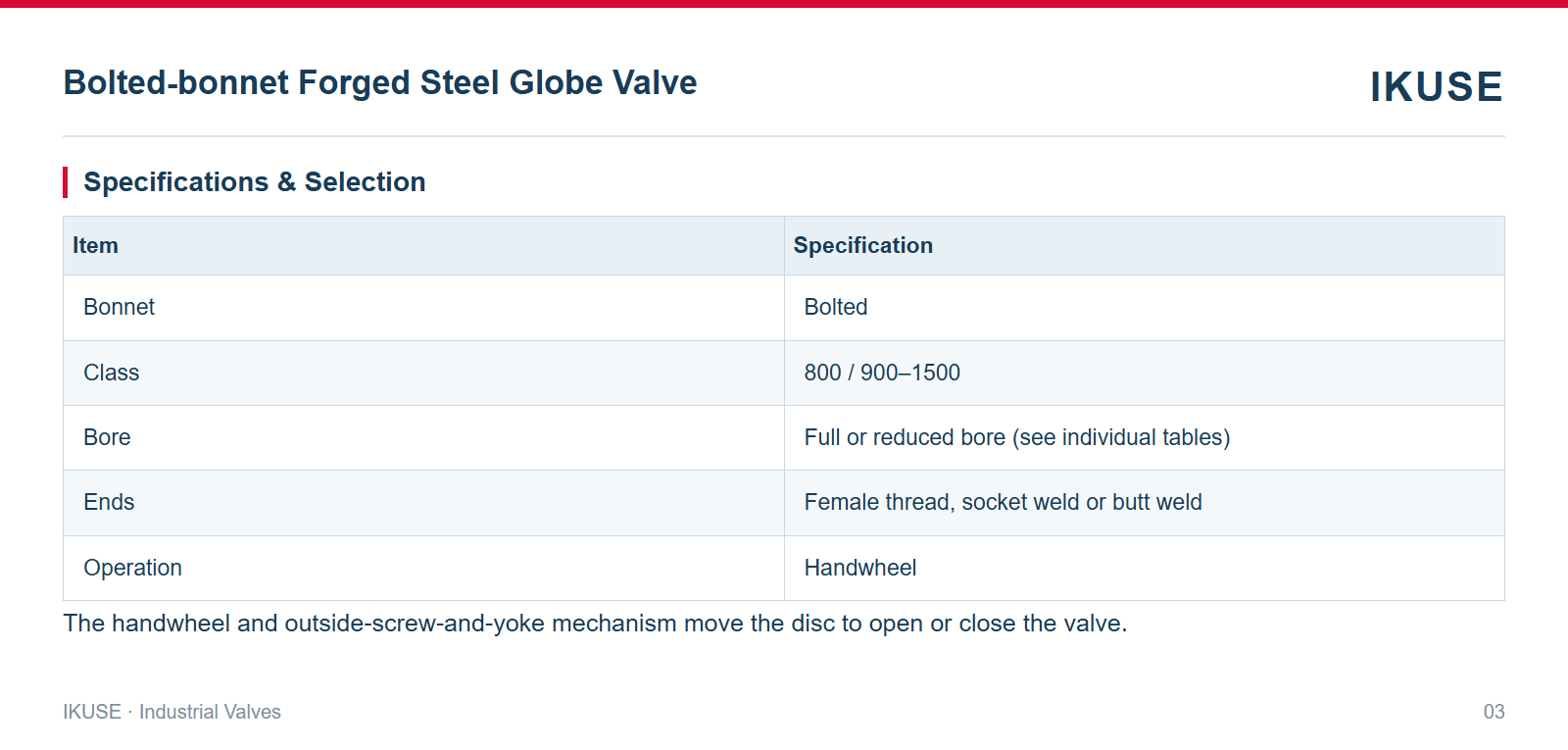

Technical Specifications
| Bore | Full or reduced bore (see individual tables) |
| Ends | Female thread, socket weld or butt weld |
| Class | 800 / 900–1500 |
| Cover | Bolted |
| Operation | Handwheel |
Product Details
Product Details
