Cryogenic Valves

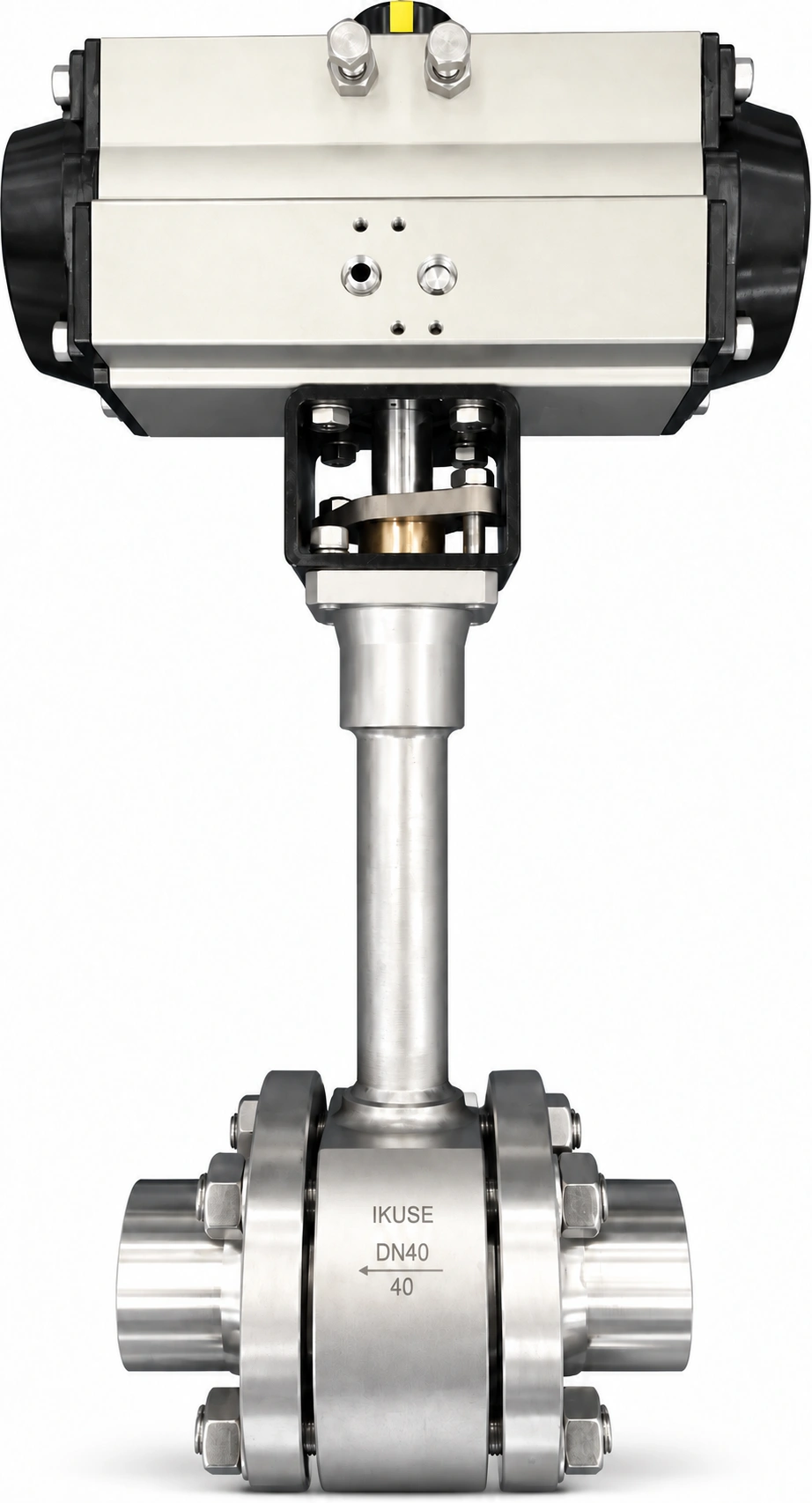

IKUSE Cryogenic Pneumatic Ball Valve · DQ661F-40P · DN15–100
Model: DQ661F-40P; Size: DN15–100; PN: 4.0 MPa; Temperature: −196°C～+80°C; Body: CF8; Air supply pressure: 0.4–0.6 MPa; Connection: Socket weld.
Price
Price on request
Submit requirements for a customized quote
PN
4.0 MPa
Body
CF8
Size
DN15–100
Model
DQ661F-40P
Connection
Socket weld
Temperature
−196°C～+80°C
Service Hotline
+86 156 1819 0516
Technical Parameters

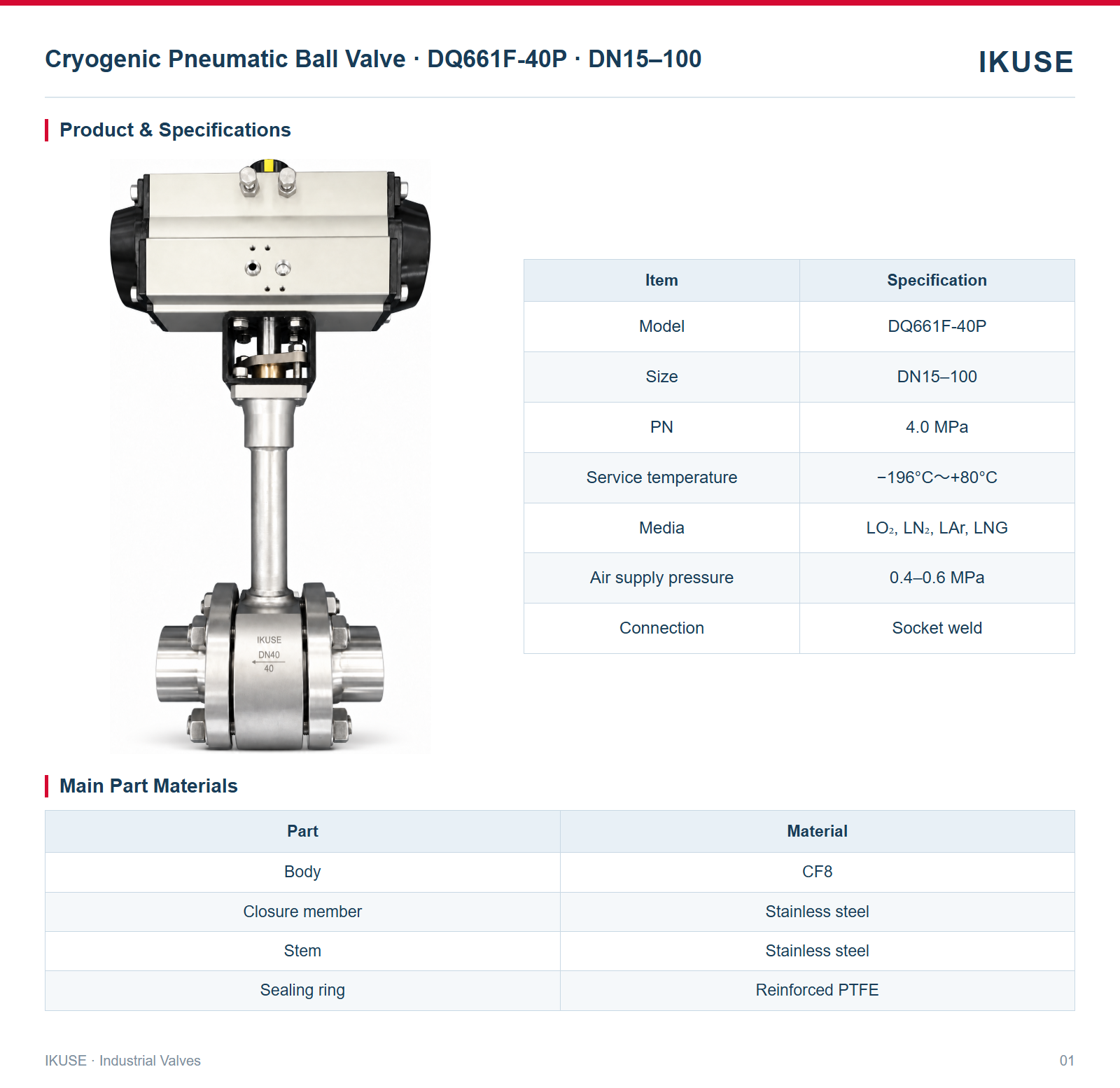

Technical Specifications
| PN | 4.0 MPa |
| Body | CF8 |
| Size | DN15–100 |
| Model | DQ661F-40P |
| Connection | Socket weld |
| Temperature | −196°C～+80°C |
| Air supply pressure | 0.4–0.6 MPa |
Product Details
Product Details
