IKUSE Cryogenic High-pressure Throttle Valve · DL61Y-320P · DN8–10
IKUSE · Industrial Valves
Ball, gate, globe, check, control and butterfly valves.
Cryogenic Valves

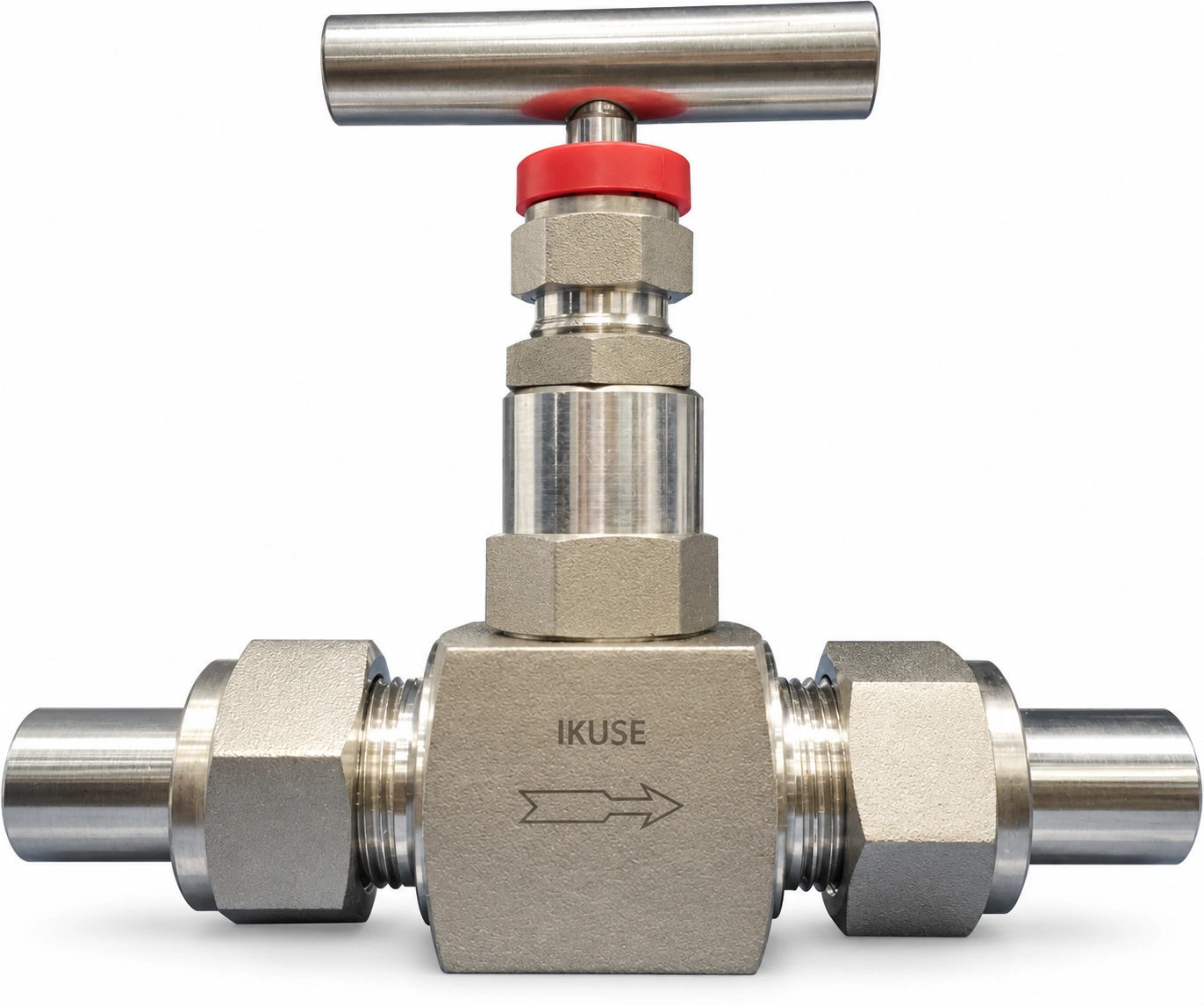

IKUSE Cryogenic High-pressure Throttle Valve · DL61Y-320P · DN8–10
Model: DL61Y-320P; Size: DN8–10; PN: 32.0 MPa; Temperature: −196°C～+80°C; Body: Stainless steel; Connection: Socket weld; butt weld available.
Price
Price on request
Submit requirements for a customized quote
PN
32.0 MPa
Body
Stainless steel
Size
DN8–10
Model
DL61Y-320P
Connection
Socket weld; butt weld available
Temperature
−196°C～+80°C
Service Hotline
+86 156 1819 0516
Technical Parameters

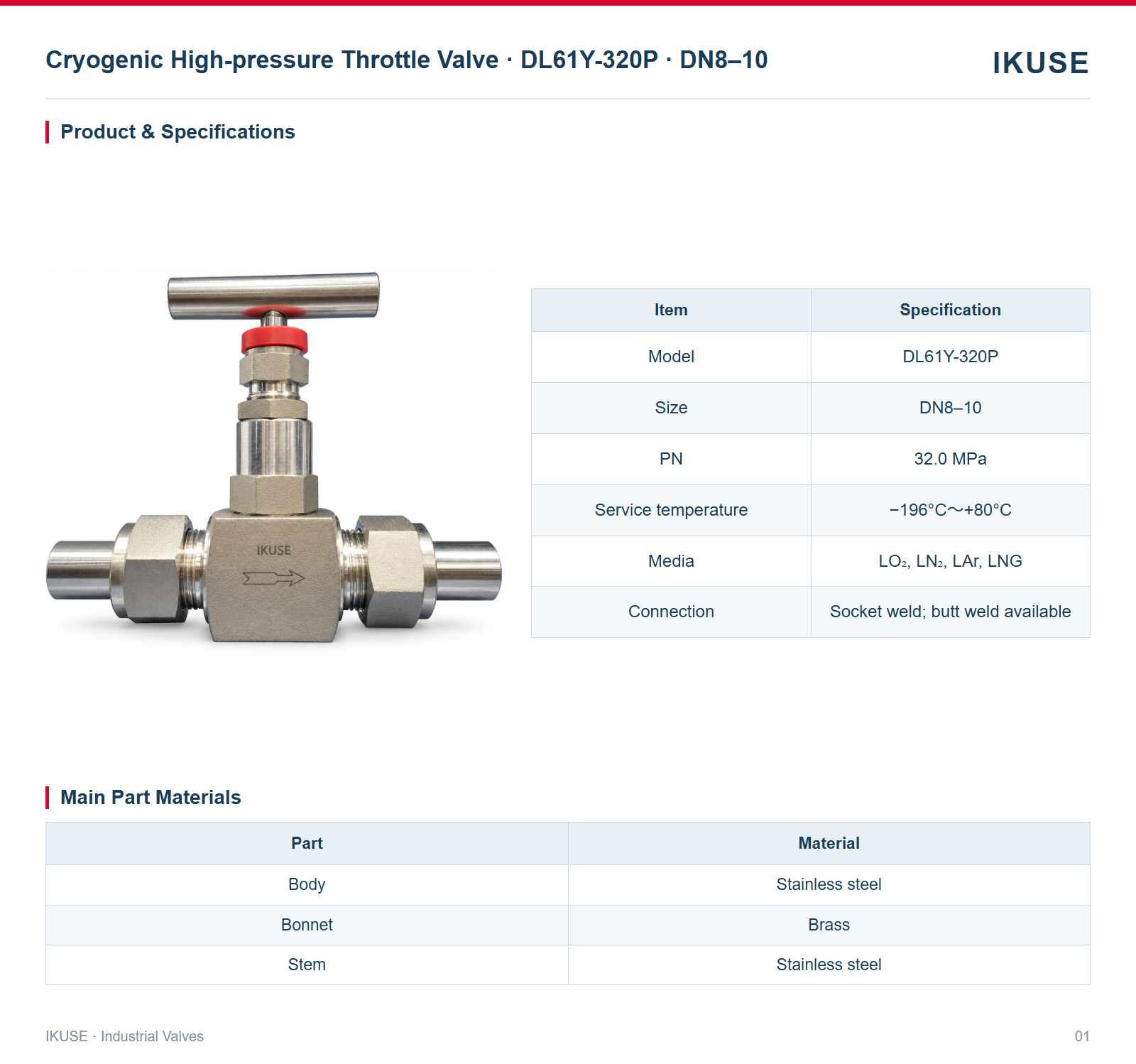

Technical Specifications
| PN | 32.0 MPa |
| Body | Stainless steel |
| Size | DN8–10 |
| Model | DL61Y-320P |
| Connection | Socket weld; butt weld available |
| Temperature | −196°C～+80°C |
Product Details
Product Details
