IKUSE · Industrial Valves
Ball, gate, globe, check, control and butterfly valves.
Cryogenic Valves

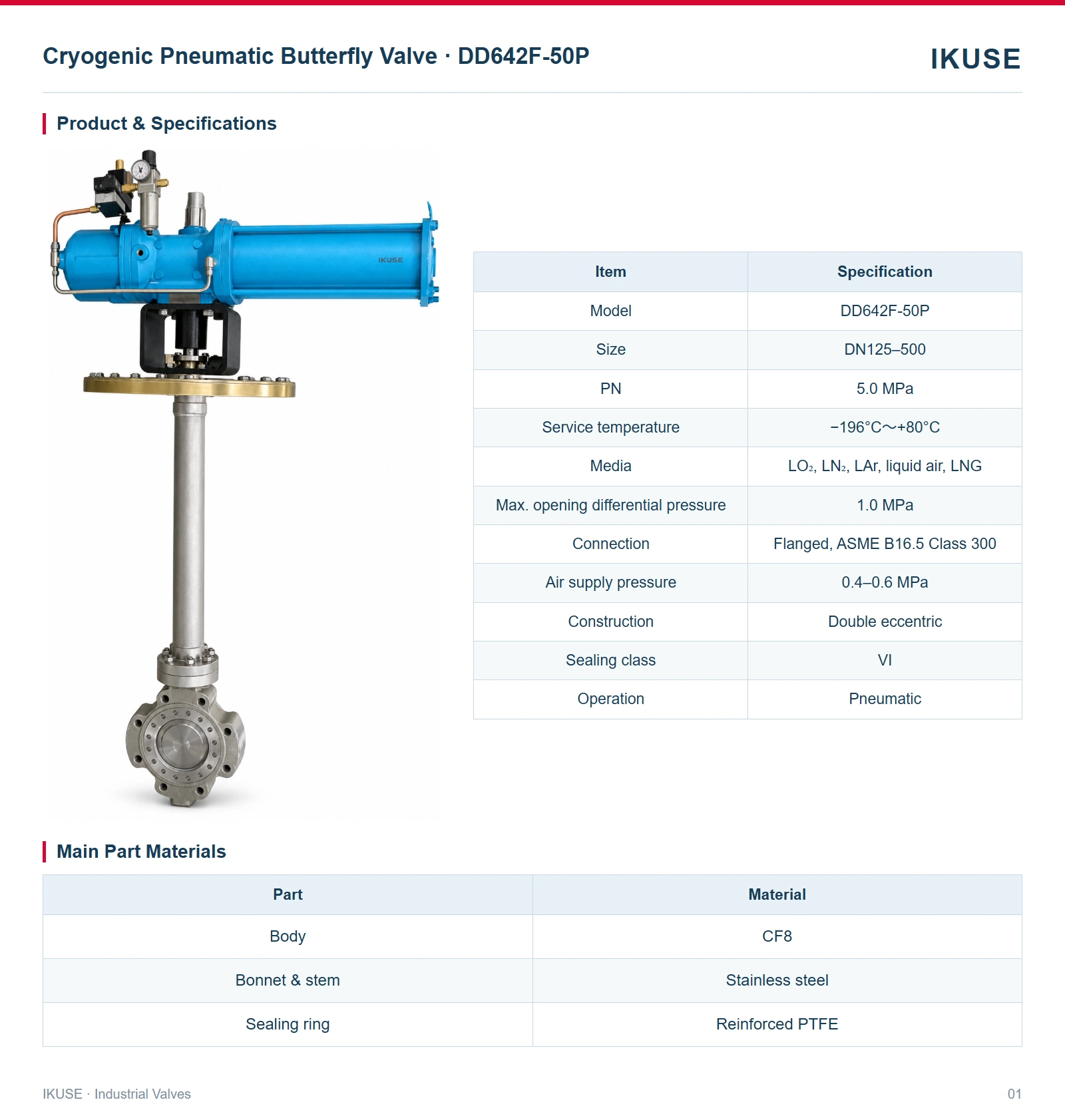

IKUSE Cryogenic Pneumatic Butterfly Valve · DD642F-50P
Model: DD642F-50P; Size: DN125–500; PN: 5.0 MPa; Temperature: −196°C～+80°C; Body: CF8; Air supply pressure: 0.4–0.6 MPa.
Price
Price on request
Submit requirements for a customized quote
PN
5.0 MPa
Body
CF8
Size
DN125–500
Model
DD642F-50P
Temperature
−196°C～+80°C
Air supply pressure
0.4–0.6 MPa
Service Hotline
+86 156 1819 0516
Technical Parameters
Technical Specifications
| PN | 5.0 MPa |
| Body | CF8 |
| Size | DN125–500 |
| Model | DD642F-50P |
| Temperature | −196°C～+80°C |
| Air supply pressure | 0.4–0.6 MPa |
