Overview

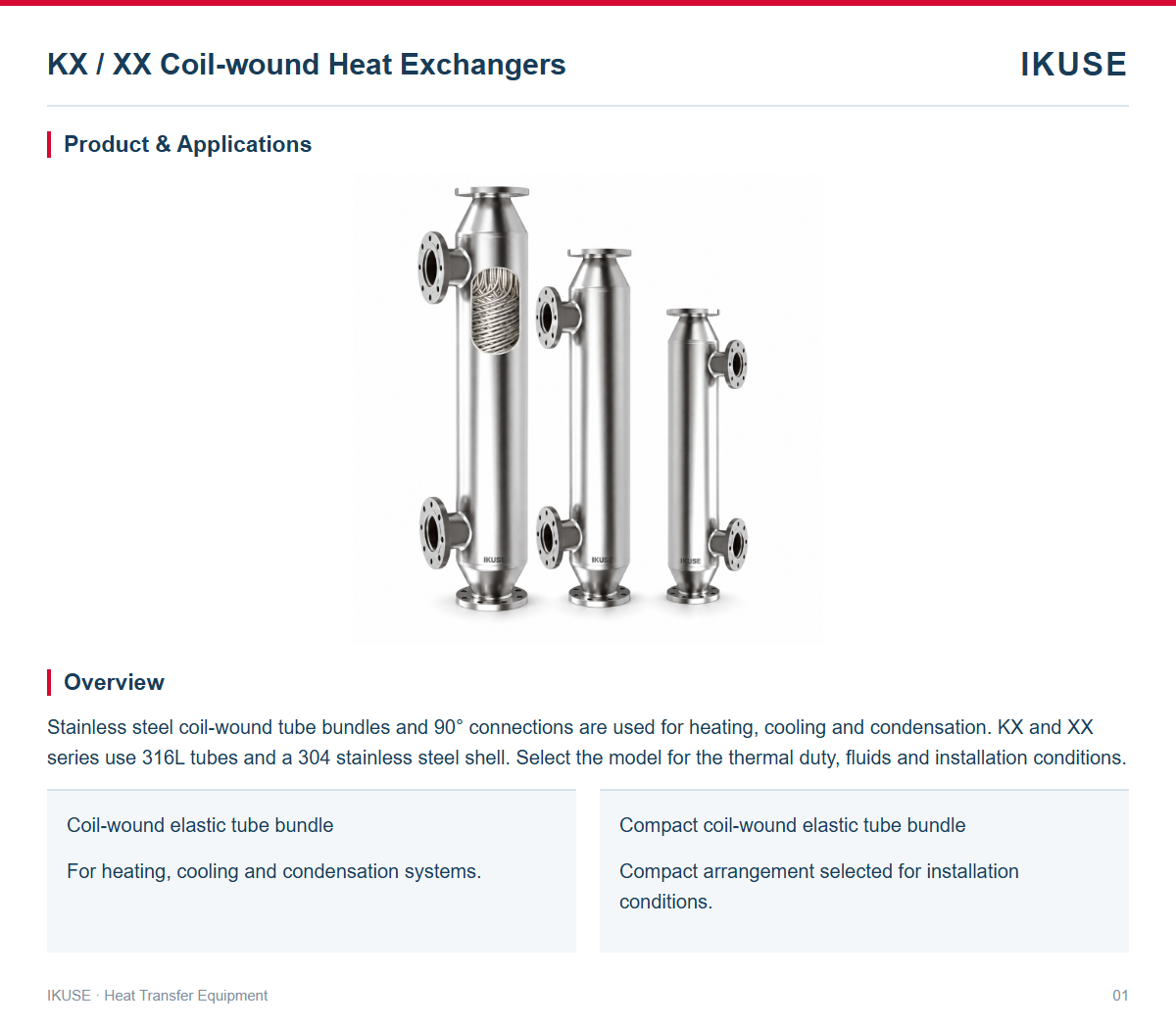

Stainless steel coil-wound tube bundles and 90° connections are used for heating, cooling and condensation. KX and XX series use 316L tubes and a 304 stainless steel shell. Select the model for the thermal duty, fluids and installation conditions.
Selection information

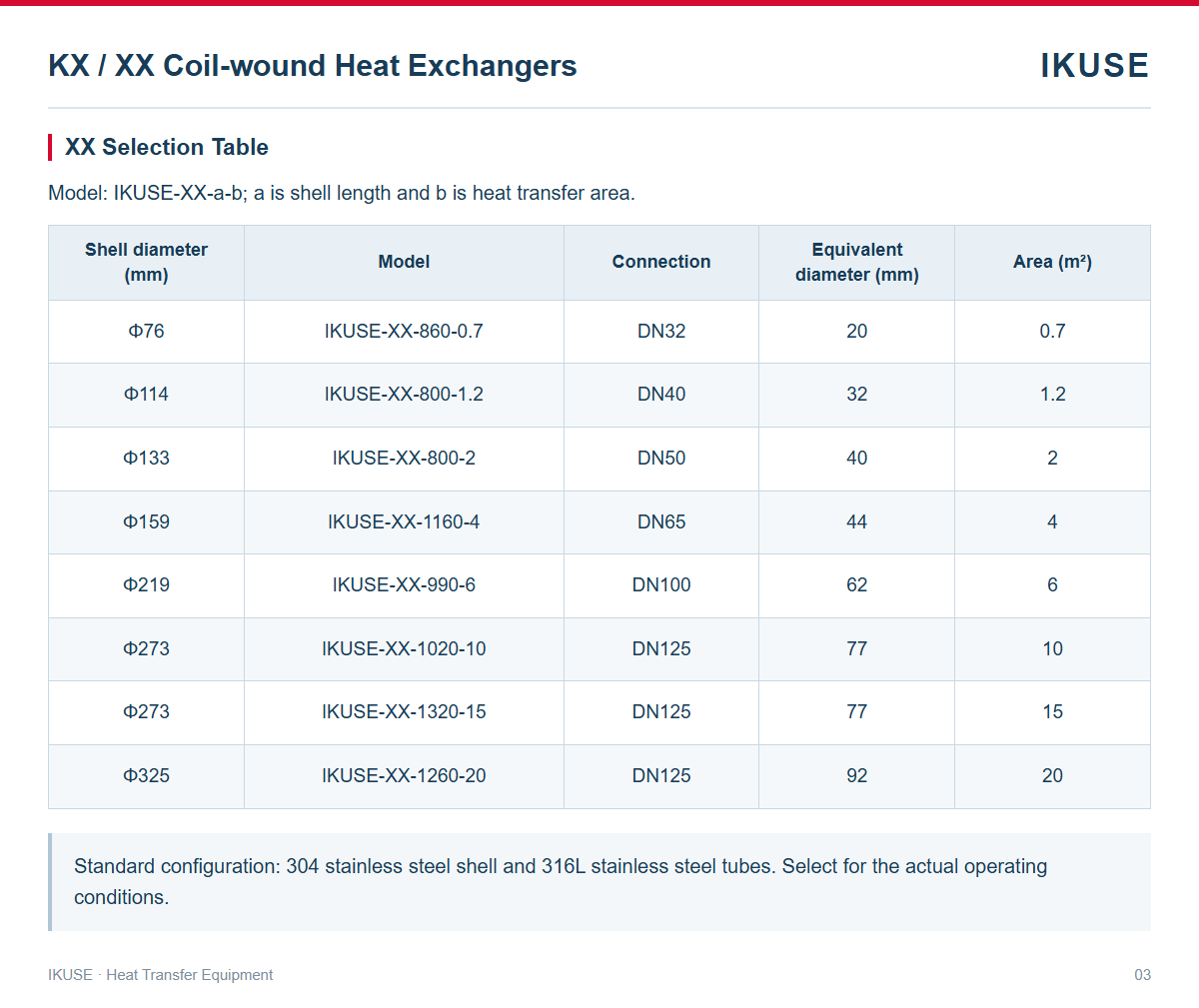

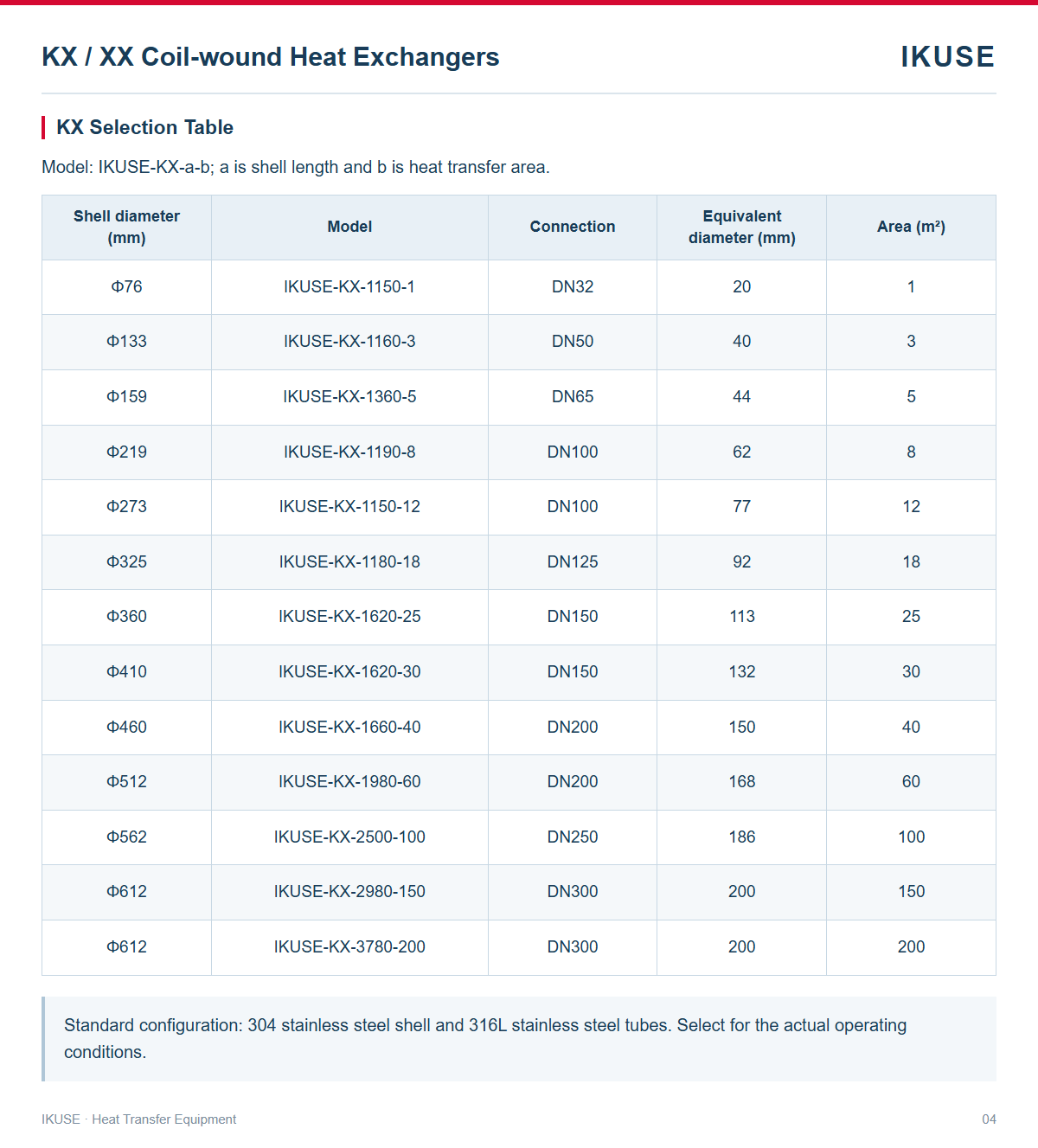

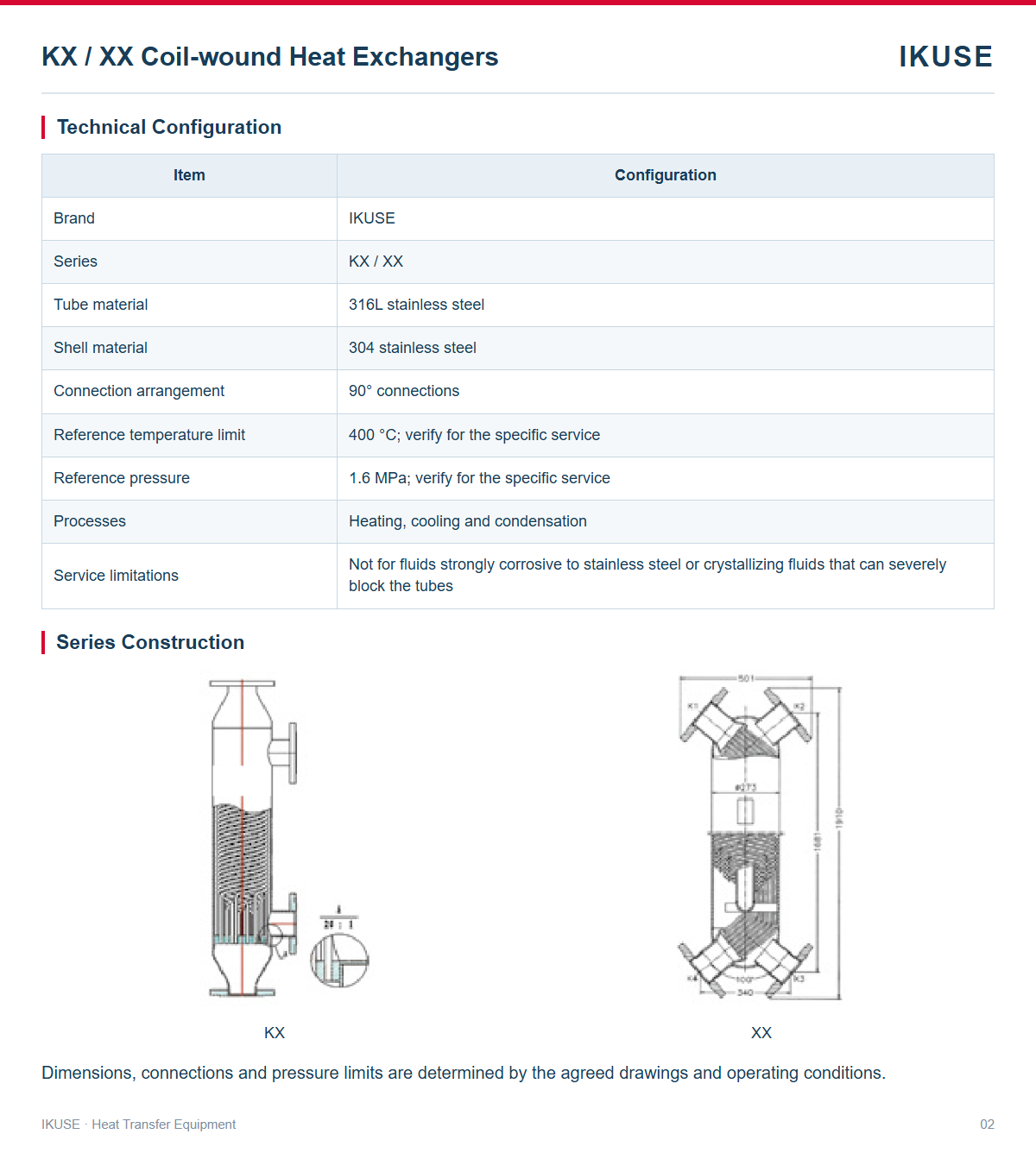

For selection, specify the fluids on both sides, flow rates, inlet and outlet temperatures, operating pressure, allowable pressure drop, installation space and material requirements. Technical data and the selection form are available in the download center.
