Overview
Torque is transmitted through meshing internal and external teeth. Select connections and seals for the corresponding size.

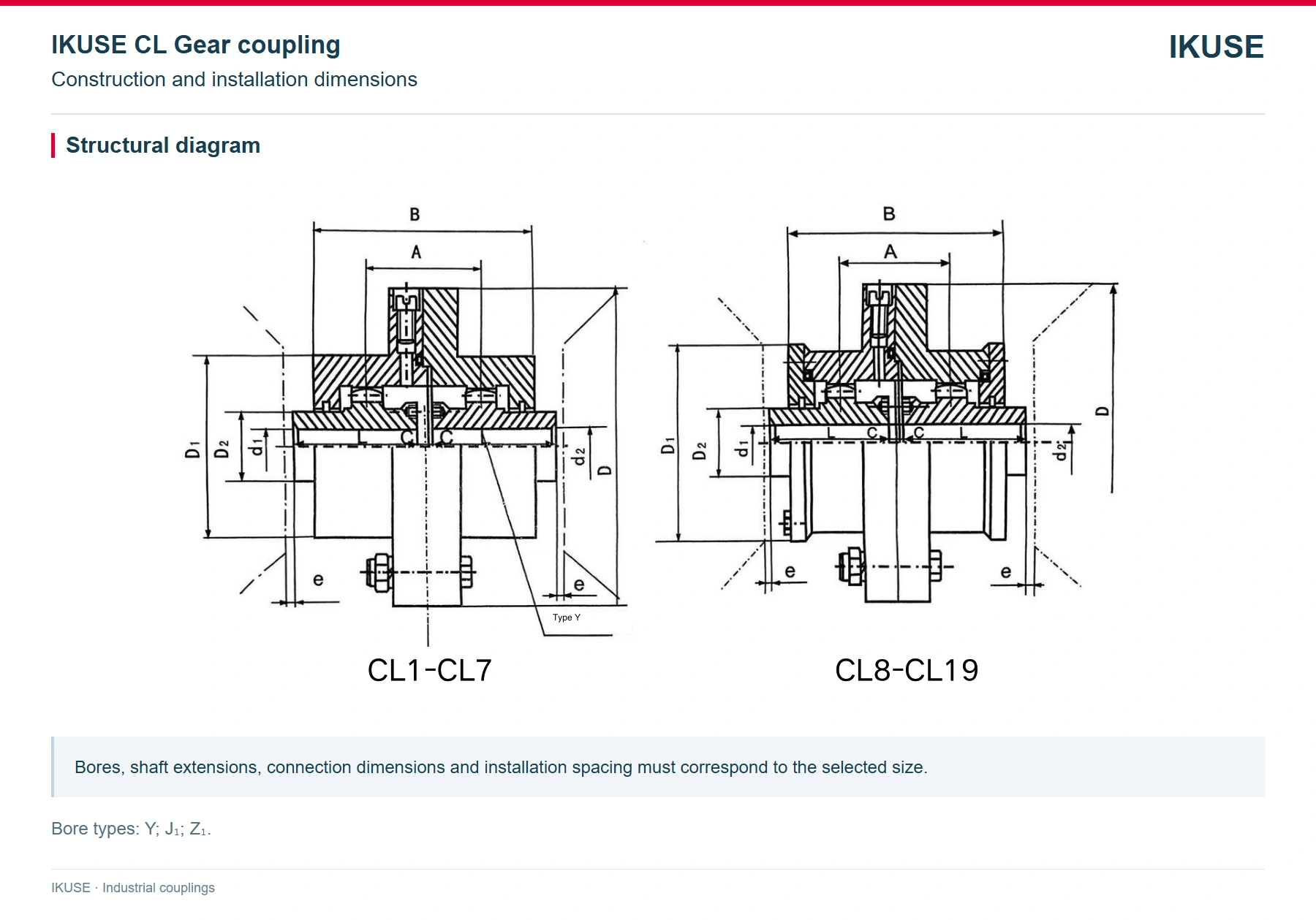

Construction and maintenance
Check toothed sleeves, bores, connection dimensions, sealing and lubrication requirements.

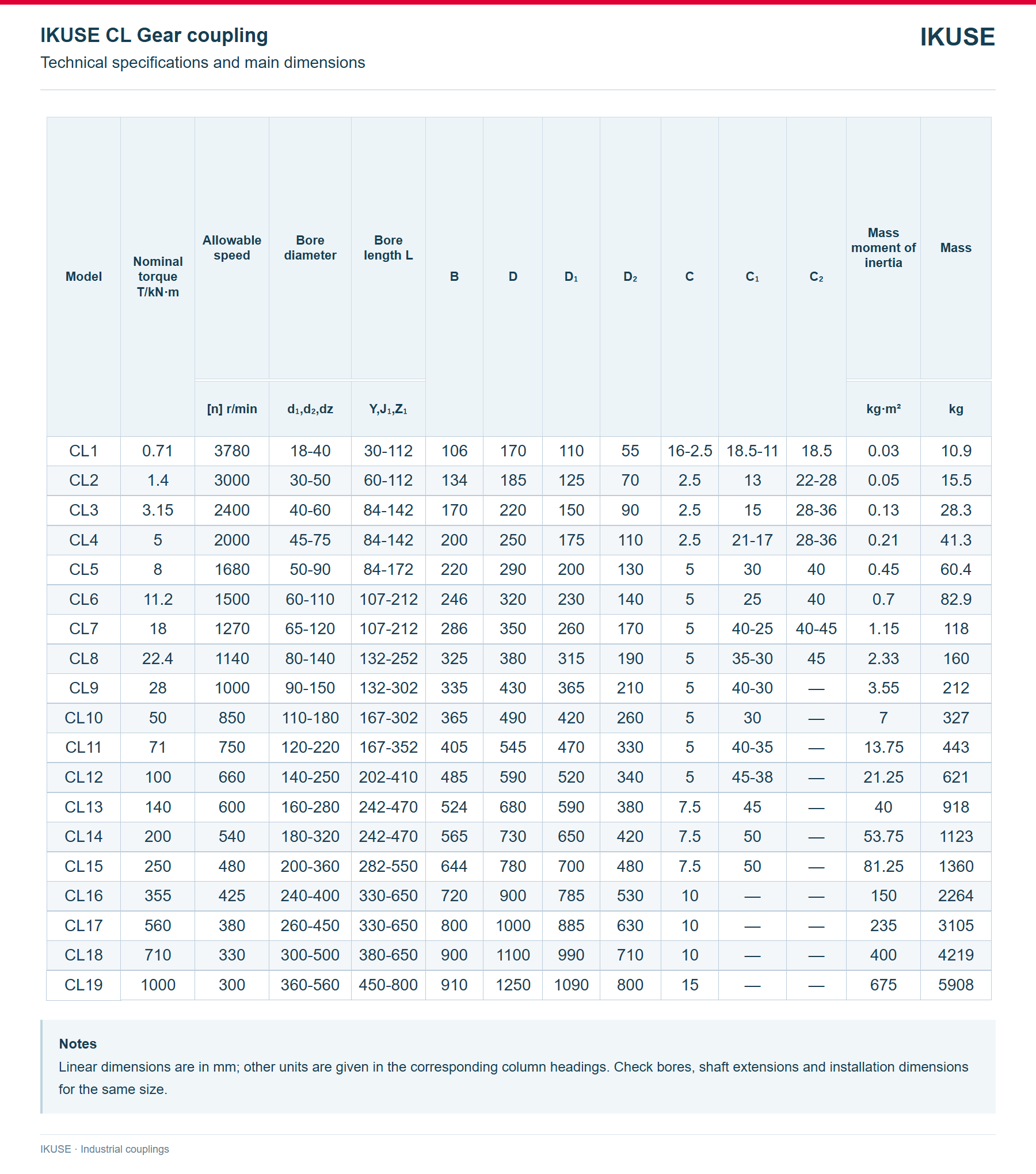

Technical specifications
Torque, speed, bores and installation dimensions must all correspond to the same size.
Ordering information
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation conditions. Include brake, dynamic-balancing and elastic-element requirements where applicable.
