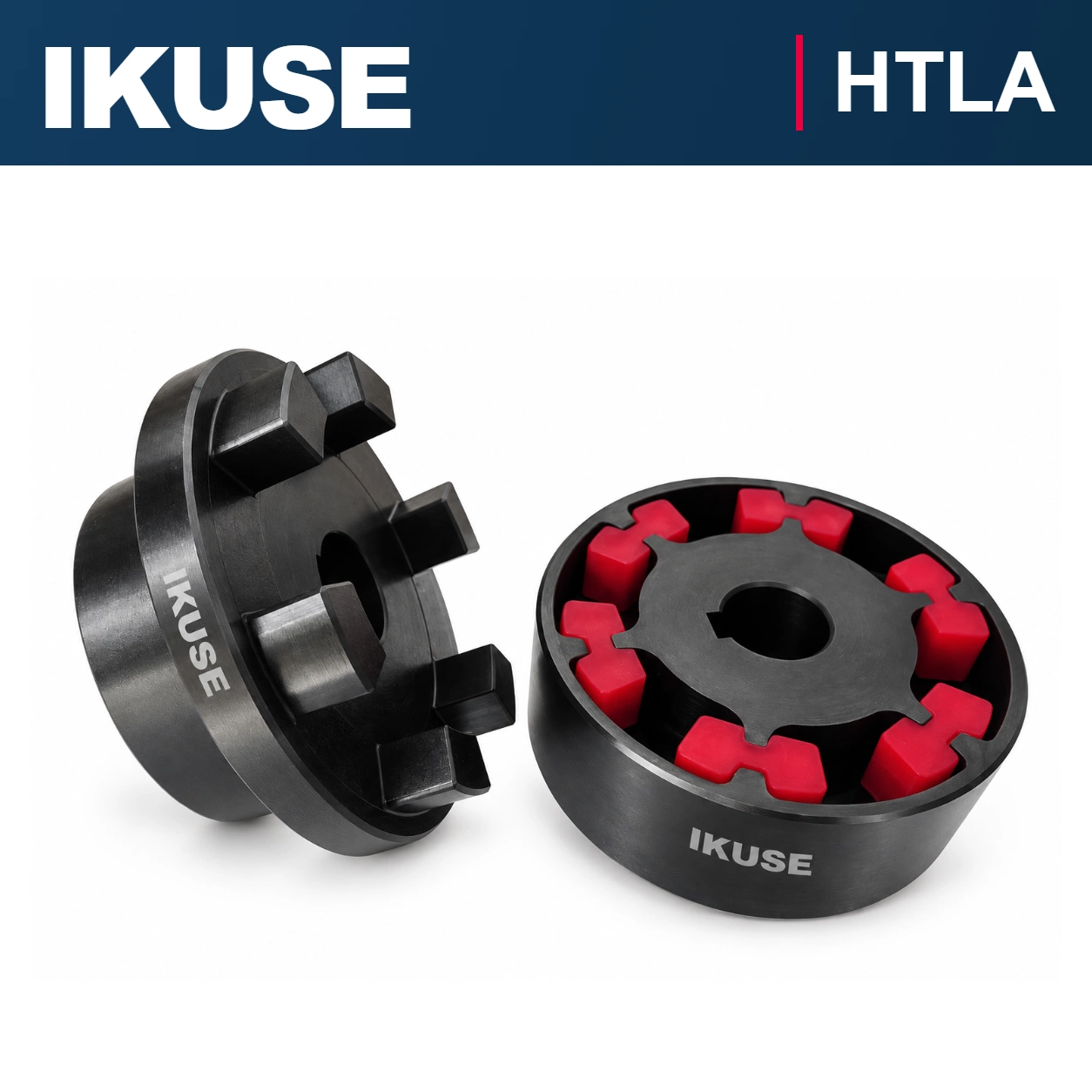

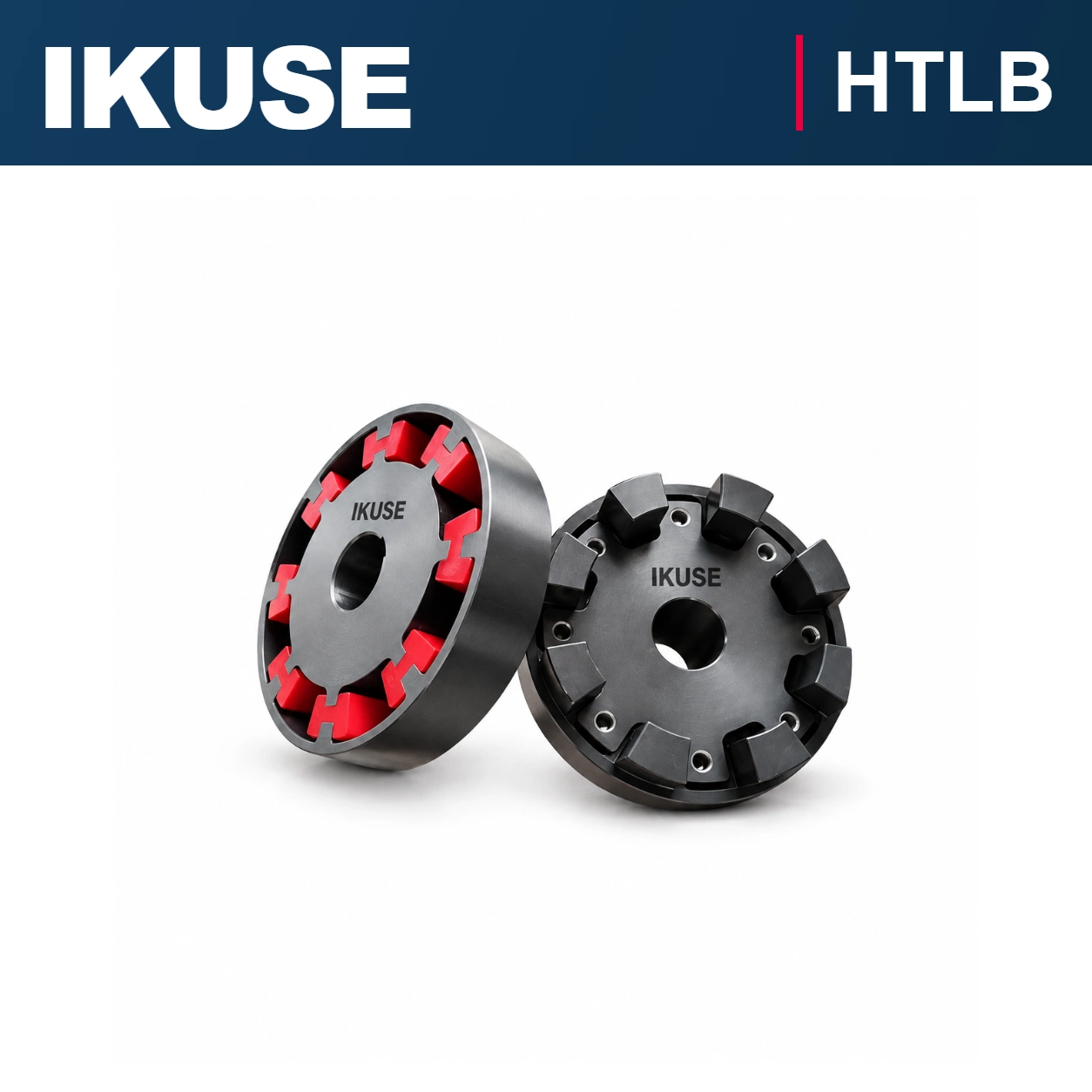

产品概述 Overview
由半联轴器与弹性块构成，依靠弹性块的变形传递转矩并缓冲冲击。
Coupling halves and elastomer blocks transmit torque through elastic deformation and cushion shocks.
Coupling halves and elastomer blocks transmit torque through elastic deformation and cushion shocks.

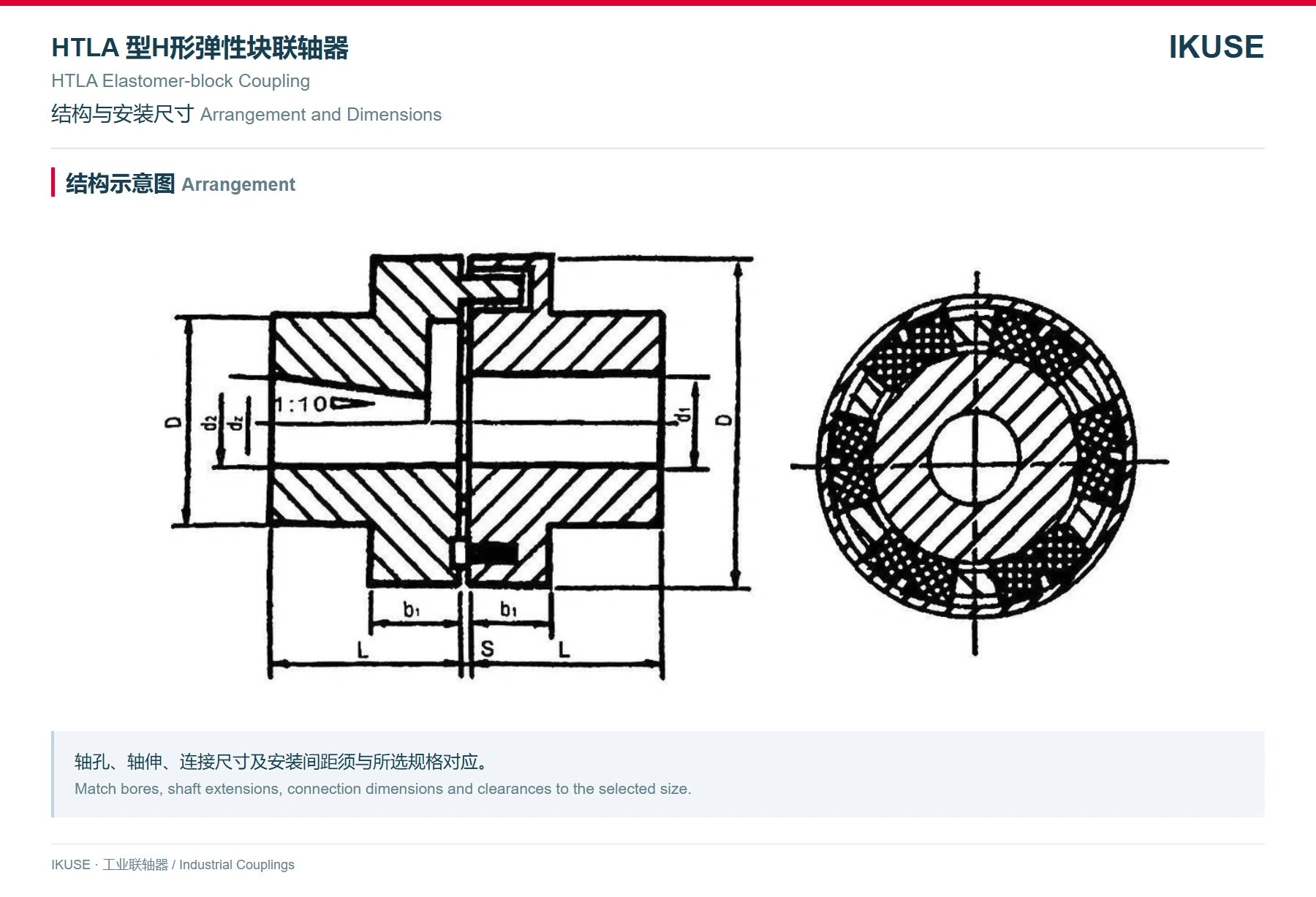

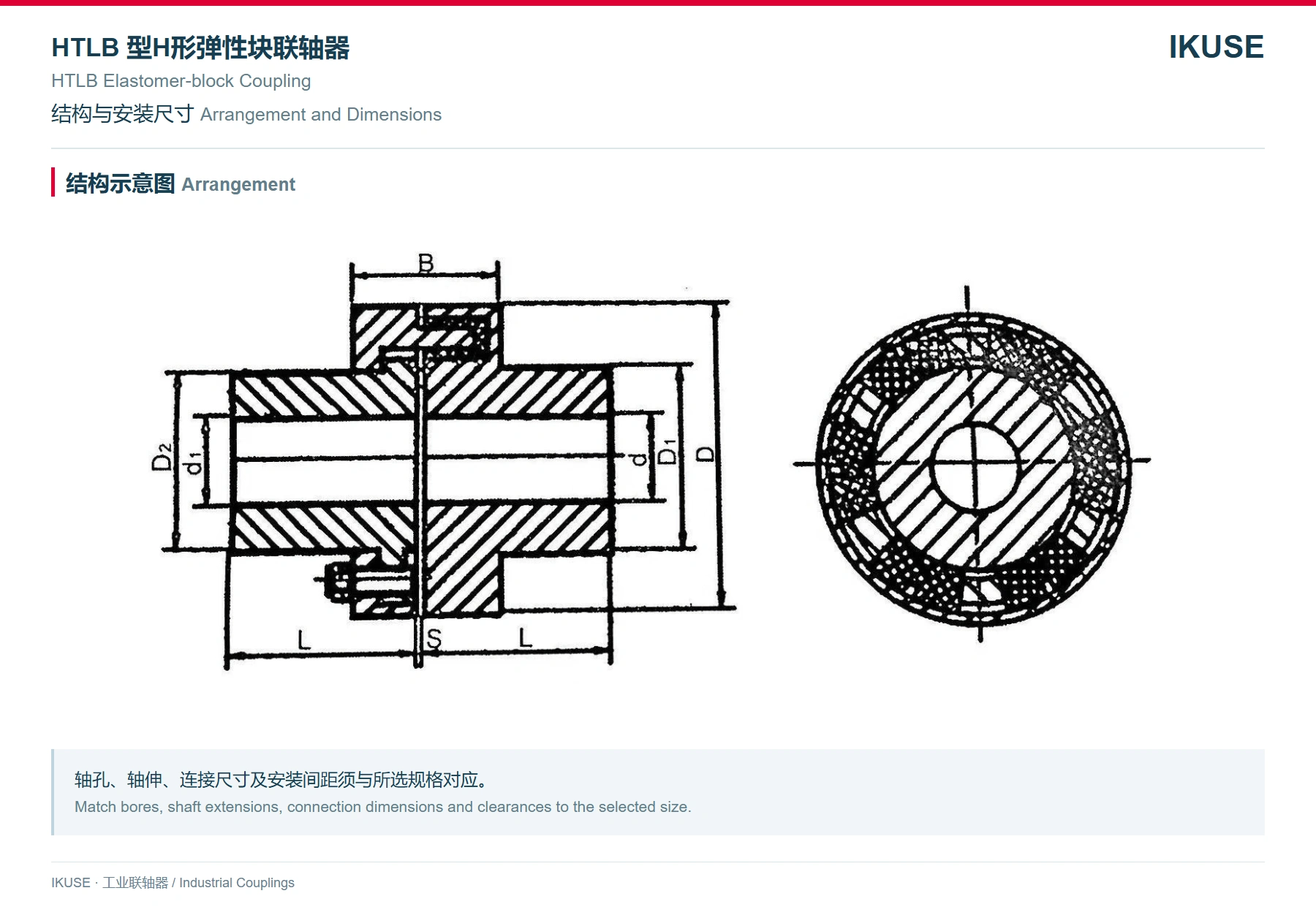

结构与使用 Construction and Service
根据具体型式核对弹性块、连接件、轴端间距及维护空间。
Match the elastomer blocks, connecting parts, shaft separation and maintenance clearance to the selected type.
Match the elastomer blocks, connecting parts, shaft separation and maintenance clearance to the selected type.

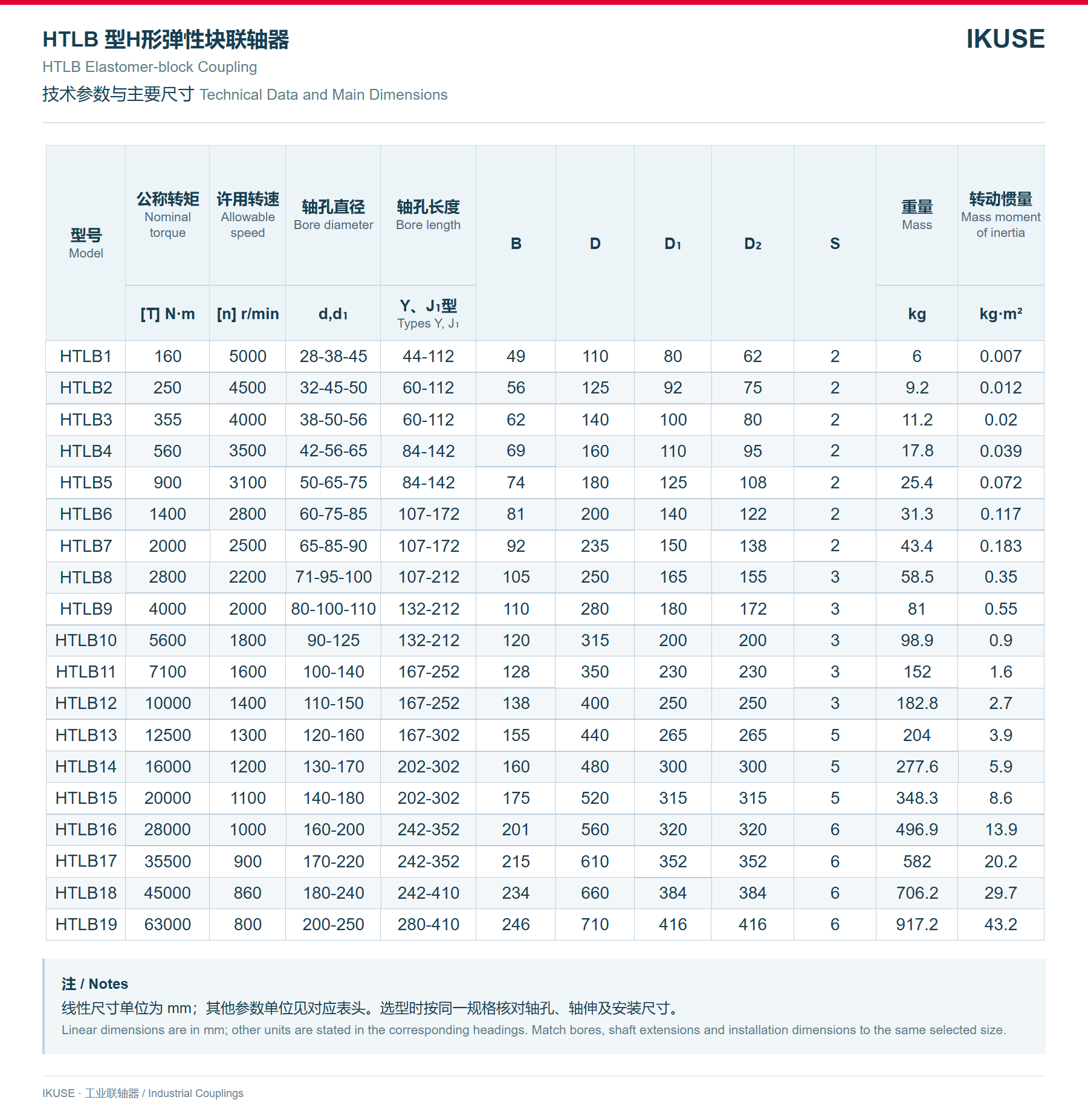

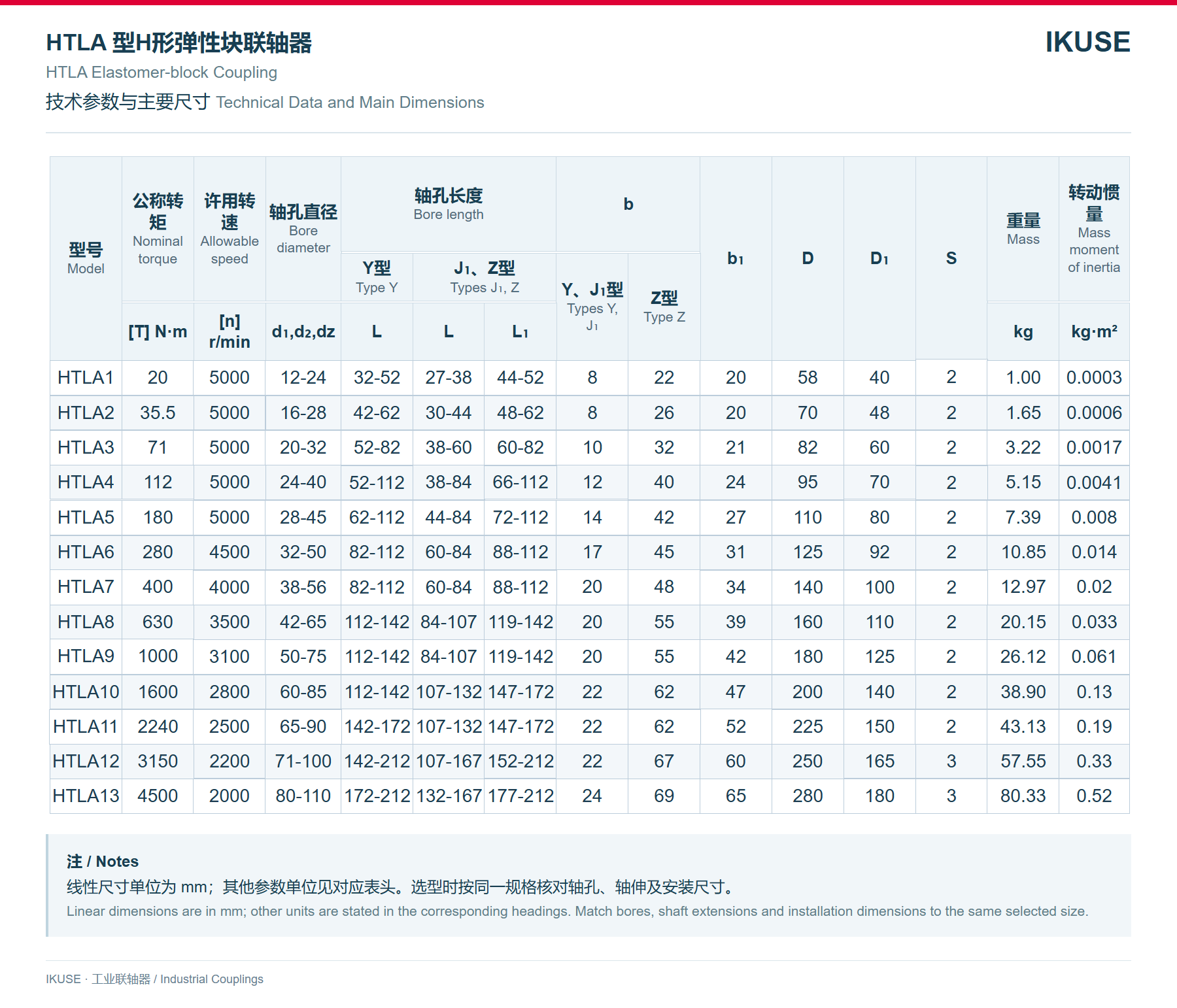

技术参数与主要尺寸 Technical Data and Dimensions
转矩、转速、轴孔和安装尺寸应按同一规格对应核对。
Check torque, speed, bore and installation dimensions for the same selected size.
Check torque, speed, bore and installation dimensions for the same selected size.
订货信息 Ordering
请提供功率、工作转速、负载特性、两端轴径与轴伸长度、轴端间距以及安装环境；涉及制动、动平衡和弹性元件配置时请一并说明。
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
