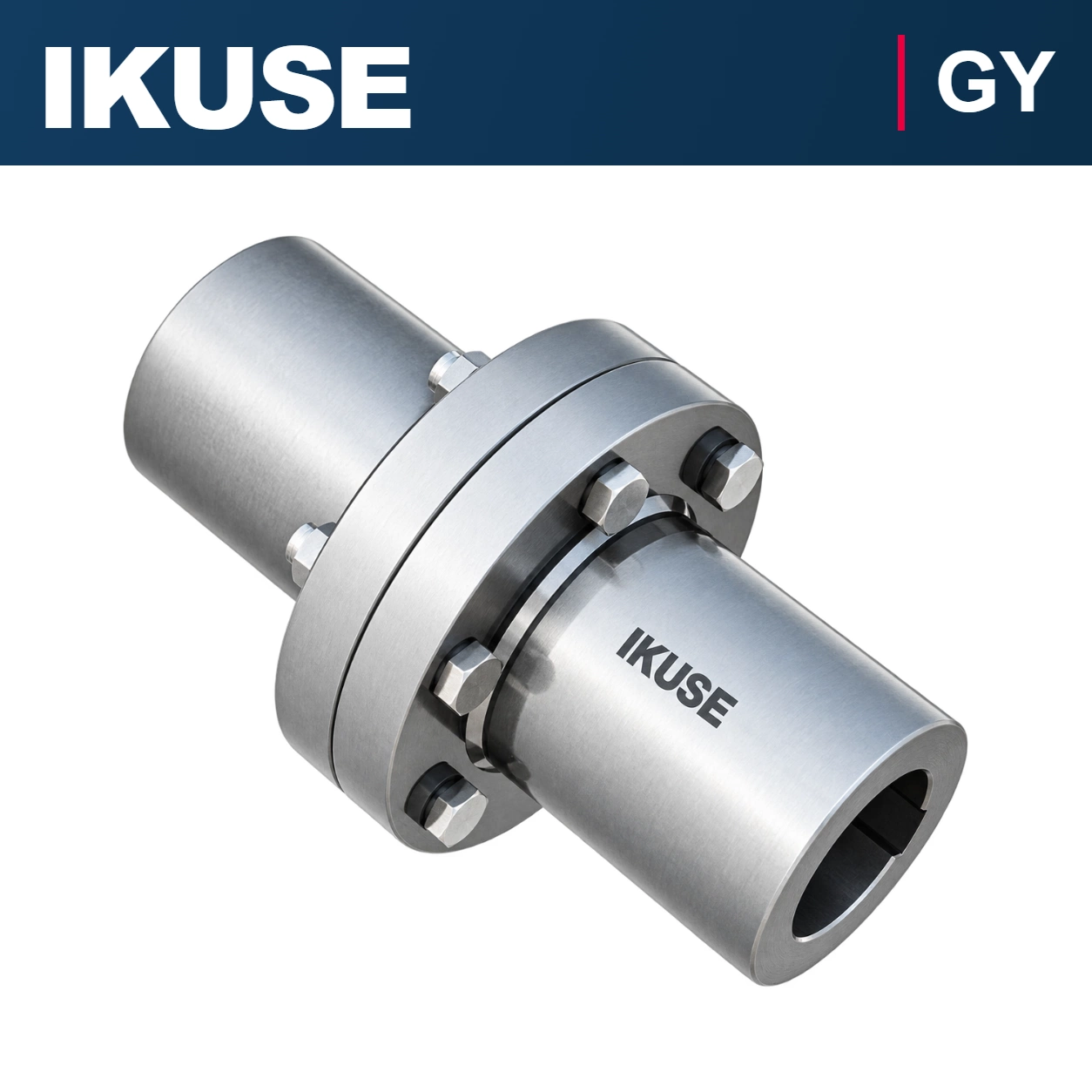

产品概述 Overview
用于两轴之间的刚性连接，结构中不设置用于补偿偏移的弹性元件。
Provides a rigid connection between two shafts, without an elastic element for misalignment compensation.
Provides a rigid connection between two shafts, without an elastic element for misalignment compensation.

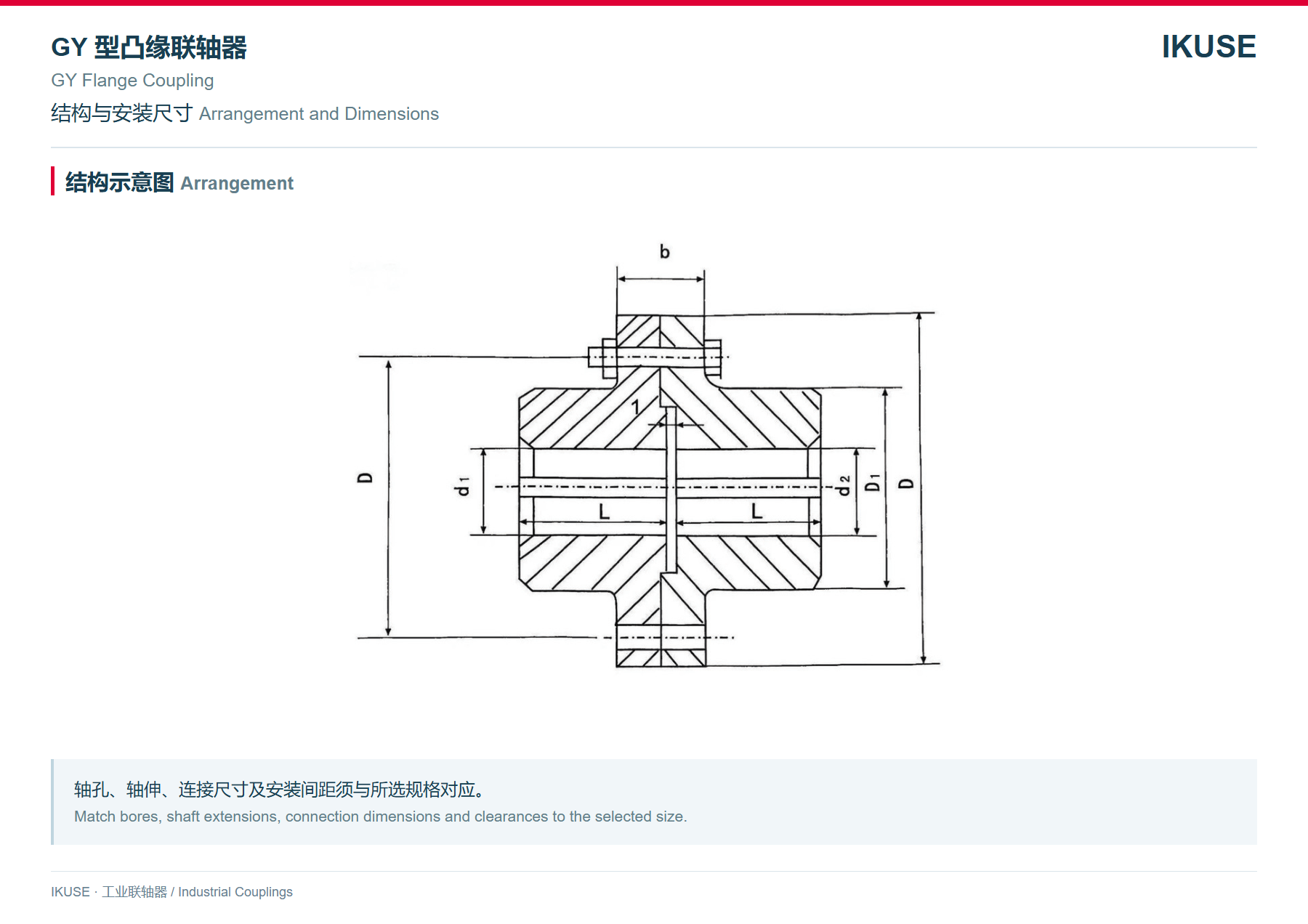

结构与使用 Construction and Service
安装时保证两轴对中，并按连接结构检查键、螺栓和轴孔配合。
Align both shafts during installation and check keys, bolts and bore fits for the selected connection.
Align both shafts during installation and check keys, bolts and bore fits for the selected connection.

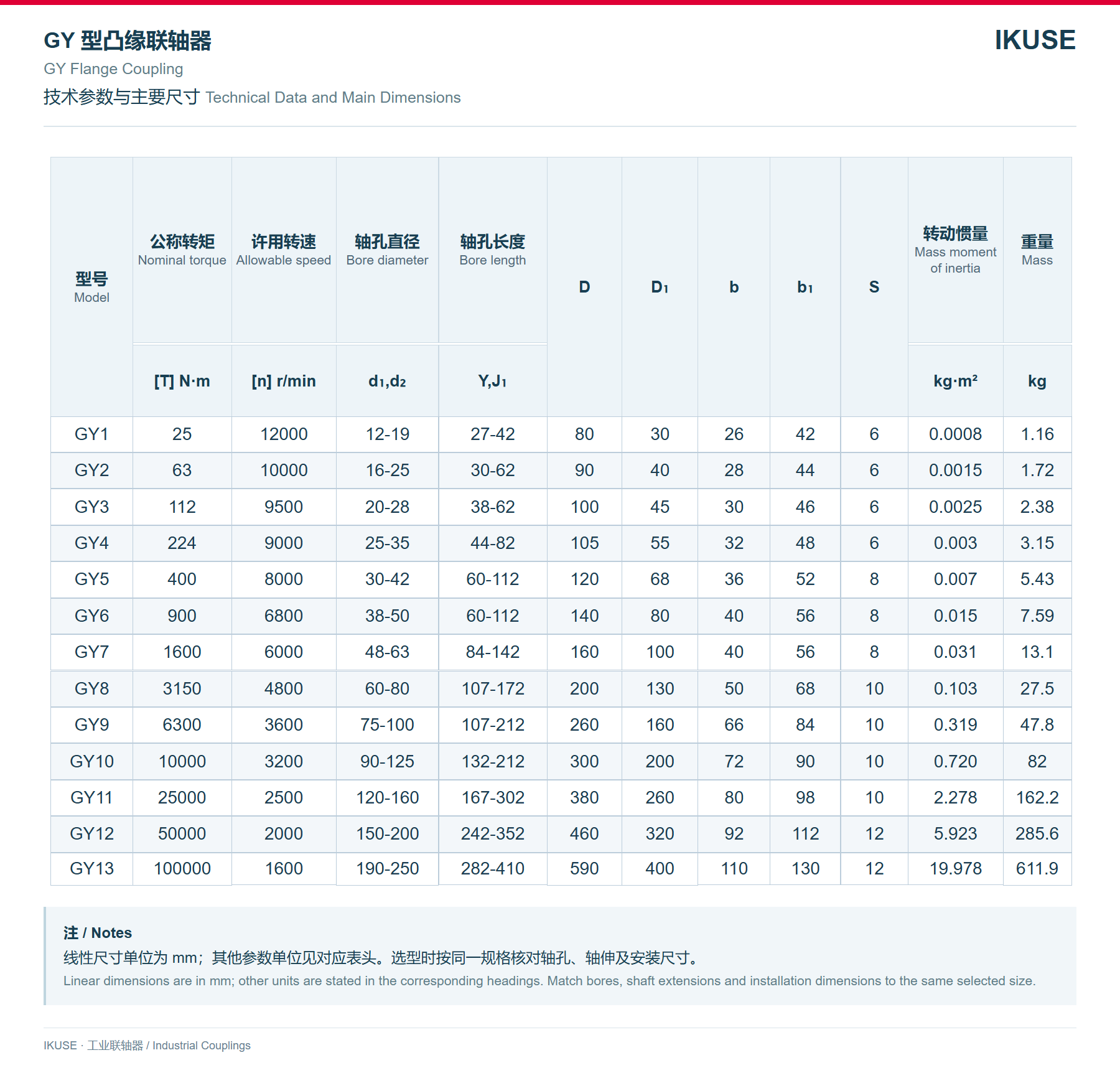

技术参数与主要尺寸 Technical Data and Dimensions
转矩、转速、轴孔和安装尺寸应按同一规格对应核对。
Check torque, speed, bore and installation dimensions for the same selected size.
Check torque, speed, bore and installation dimensions for the same selected size.
订货信息 Ordering
请提供功率、工作转速、负载特性、两端轴径与轴伸长度、轴端间距以及安装环境；涉及制动、动平衡和弹性元件配置时请一并说明。
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
