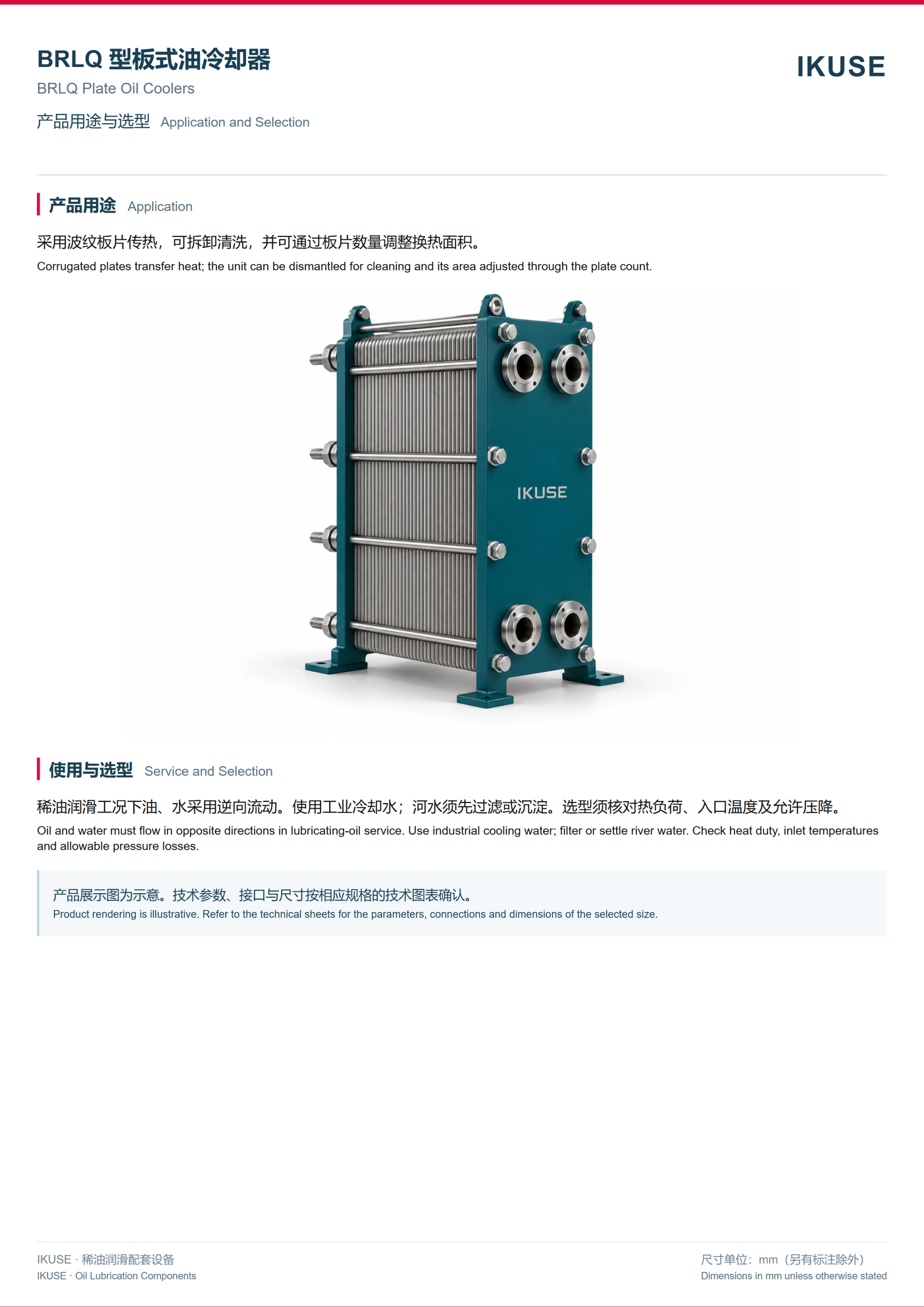

产品概述 / Overview
采用波纹板片传热，可拆卸清洗，并可通过板片数量调整换热面积。
Corrugated plates transfer heat; the unit can be dismantled for cleaning and its area adjusted through the plate count.
Corrugated plates transfer heat; the unit can be dismantled for cleaning and its area adjusted through the plate count.
使用与选型 / Service and Selection
稀油润滑工况下油、水采用逆向流动。使用工业冷却水；河水须先过滤或沉淀。选型须核对热负荷、入口温度及允许压降。
Oil and water must flow in opposite directions in lubricating-oil service. Use industrial cooling water; filter or settle river water. Check heat duty, inlet temperatures and allowable pressure losses.
Oil and water must flow in opposite directions in lubricating-oil service. Use industrial cooling water; filter or settle river water. Check heat duty, inlet temperatures and allowable pressure losses.
技术资料 / Technical Data

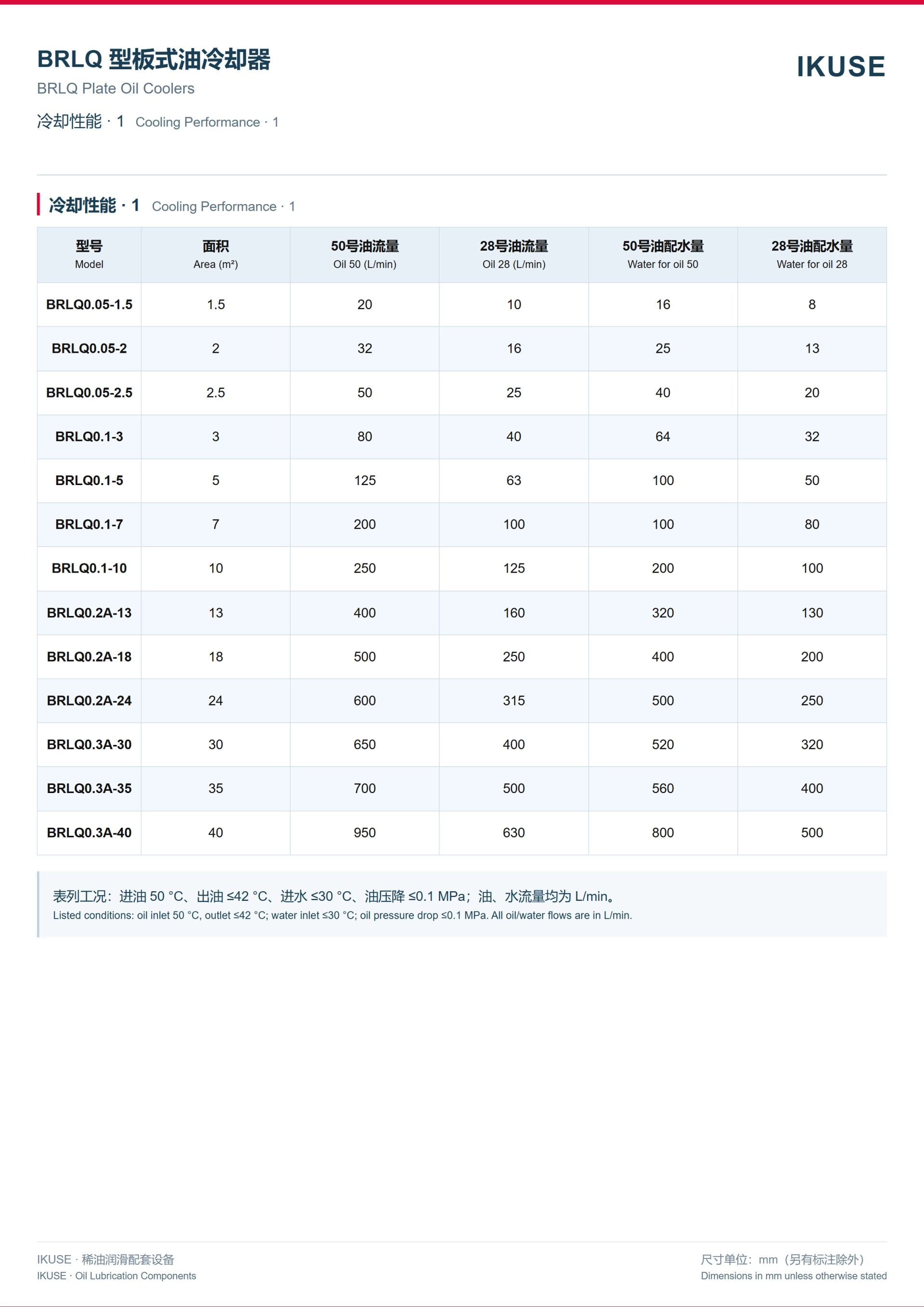

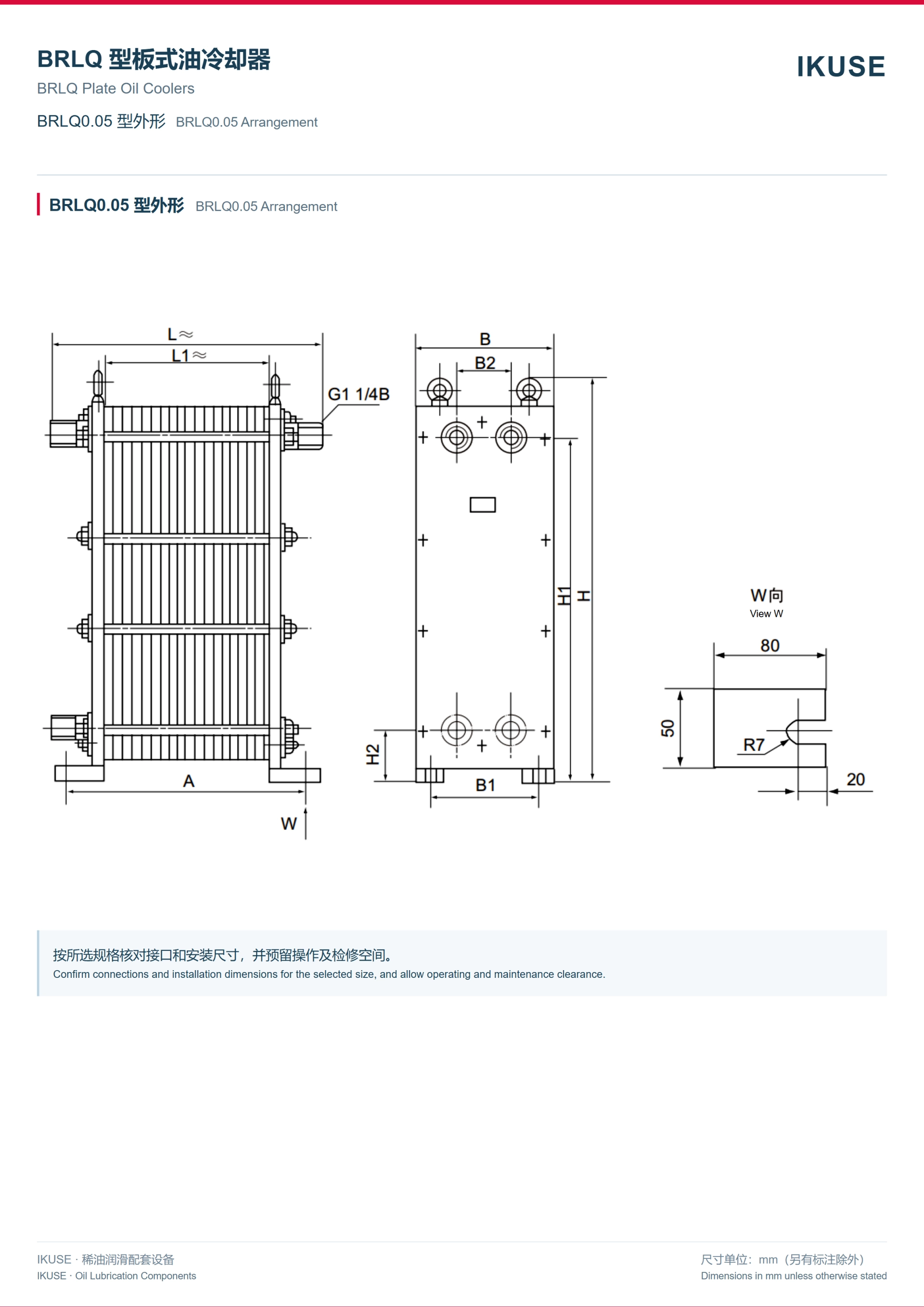

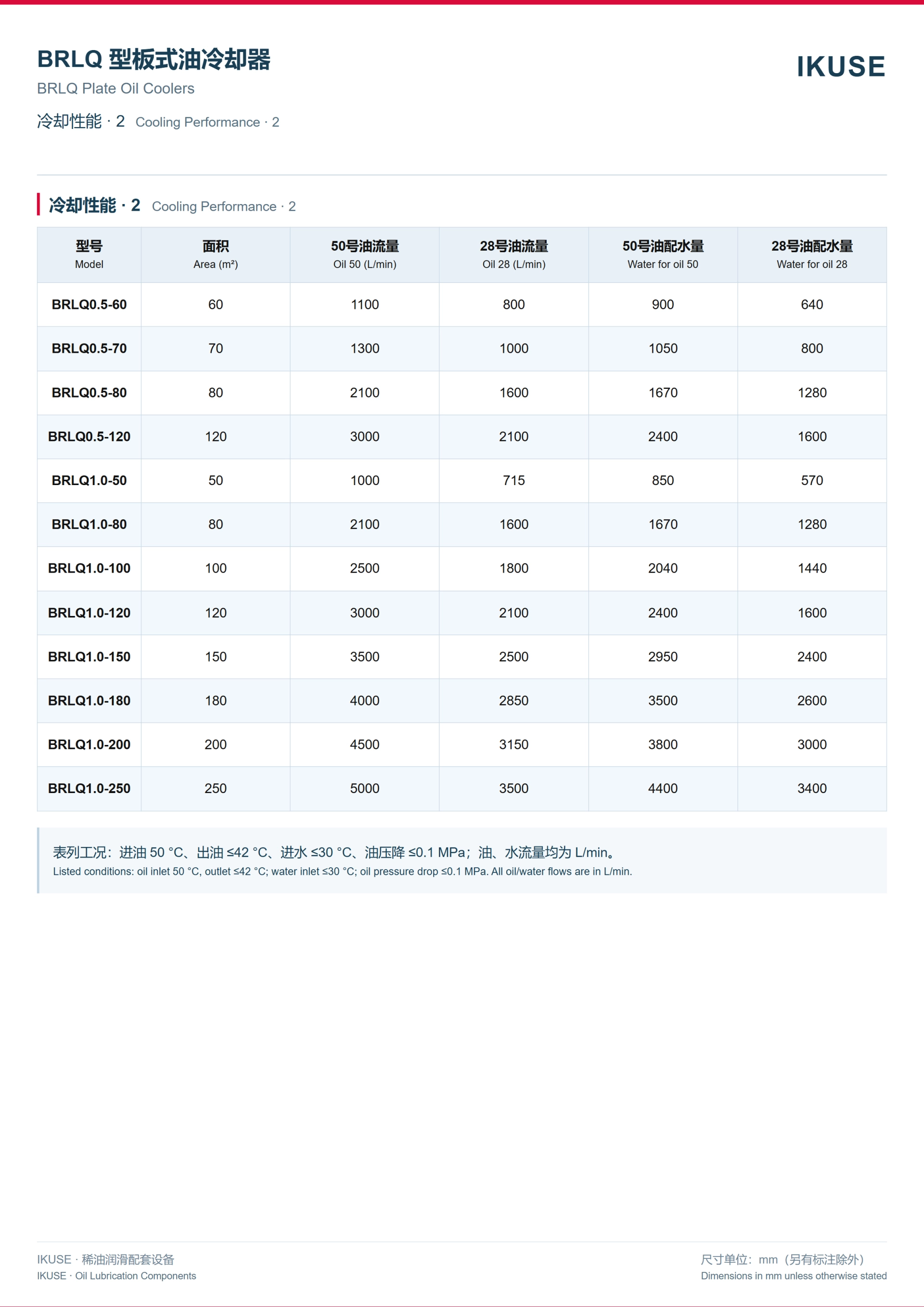

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。

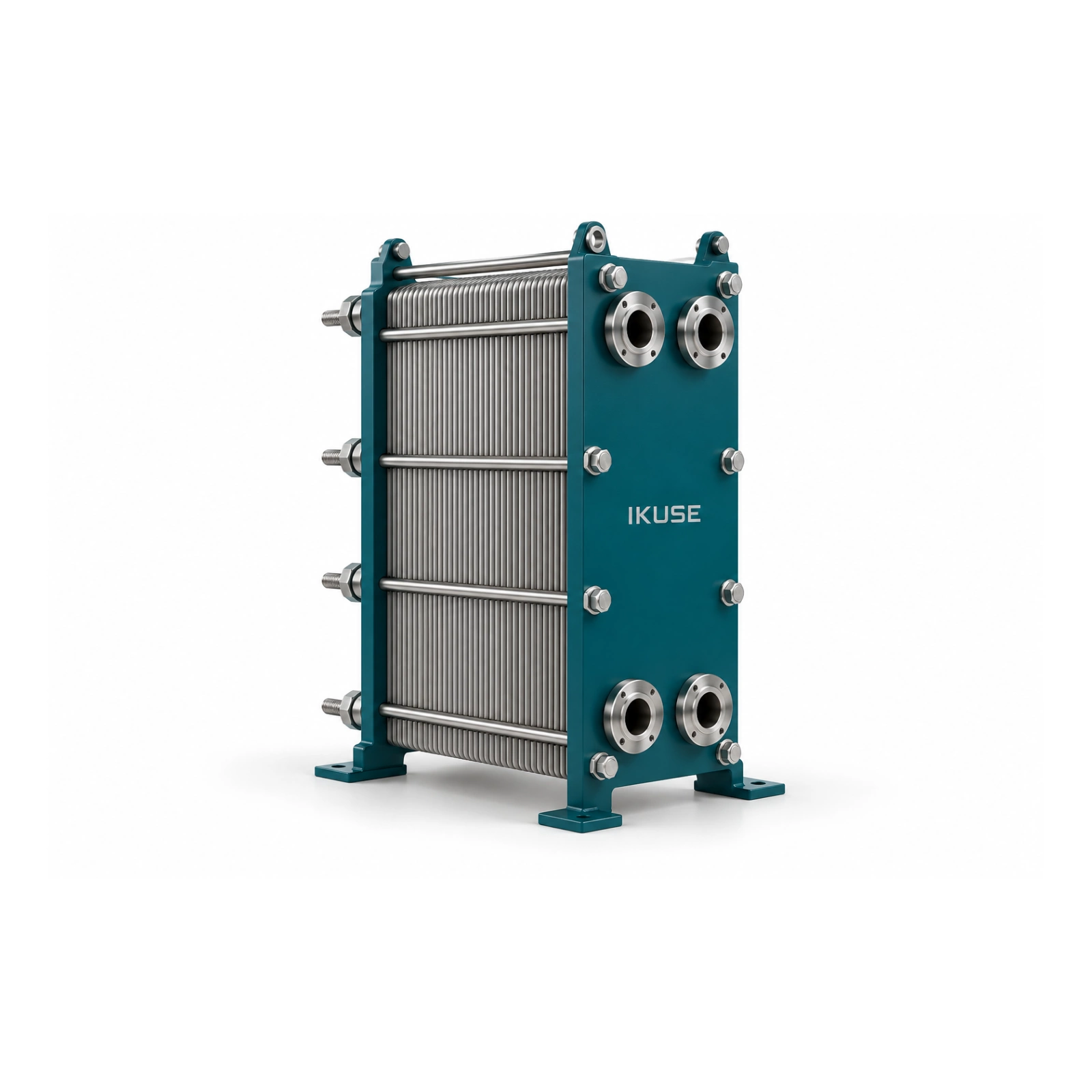

Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
